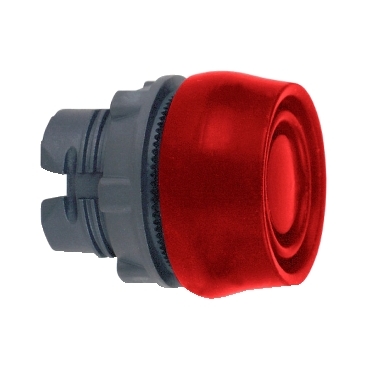

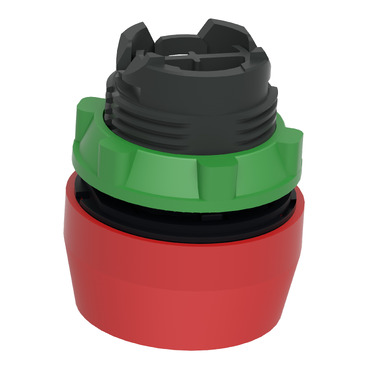

Harmony XB5 push-button head plastic, flush, red, 22mm, spring return, coloured boot, unmarked

Item Number: ZB5AP4S

1 PCE 0

This red colored silicone booted button head provides an ergonomic interface for controlling your machine . It provides also a simple solution to prevent dirt and other contaminants. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110999396	-
5	PAC	53389110999391	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	head for non-illuminated push-button
Product compatibility	legend holder
Warranty	18 months

Physical

Sale per indivisible quantity	1
Net weight	0.021 kg
Mechanical durability	10000000 cycles
Marking	unmarked
Device presentation	basic element
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K conforming to ISO 20653
Ik degree of protection	IK03 conforming to IEC 50102
Standards	UL 508 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-1 IEC 60947-5-1 JIS C8201-1
Product certifications	CSA DNV BV LROS (Lloyds register of shipping) UL listed
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	"ENVPEP2303008EN"
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Average percentage of recycled plastic content	6 %
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Device short name	ZB5
Bezel material	dark grey plastic
Mounting diameter	22 mm
Head type	standard
Shape of signaling unit head	round
Type of operator	spring return
Operator profile	red flush, unmarked
Operator additional information	coloured boot
Cad overall width	30 mm
Cad overall height	30 mm
Cad overall depth	33 mm
Main group	push-button
Group of product	silicone boot push
Station name	XALD 1...5 cut-outs XALK 2...5 cut-outs
Cap/operator or lens colour	red
Electrical composition code	C1 for <9 contacts using single blocks in front mounting C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting
Customizable	no
Customizable	0
Compatibility code	ZB5
Protective treatment	TH
Overvoltage category	class II conforming to IEC 60536
Nema degree of protection	UL type 4X/13
Nema degree of protection	NEMA 13 NEMA 4X
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.5 cm
Package 1 width	4.7 cm
Package 1 length	5.6 cm
Package 1 weight	19.0 g
Unit type of package 2	S03
Number of units in package 2	200
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	4.343 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.10490129814227978
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.004942172722261331
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0037316896179218607
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.02558262857344531
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.13915778905590828
Average percentage of recycled plastic content	6 %
Average percentage of recycled metal content	29 %
Average percentage of recycled metal content	29 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI2303008EN
Take-back	No
Warranty (in months)	18
