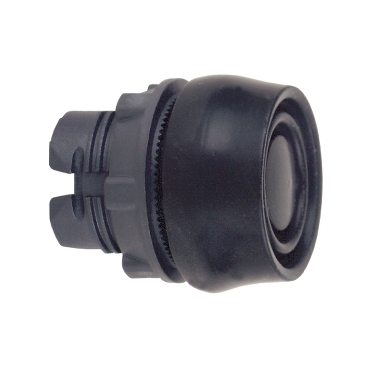

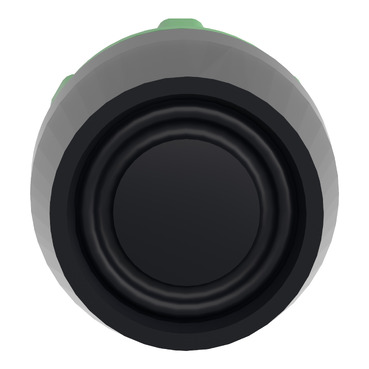

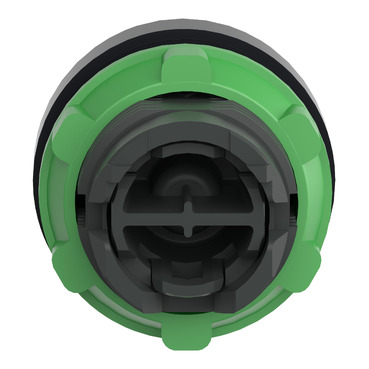

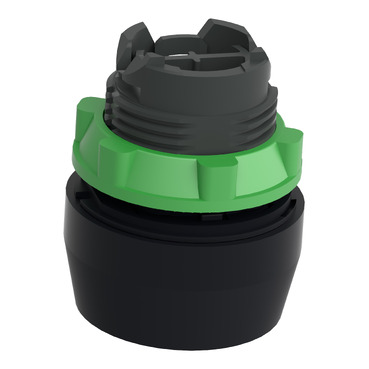

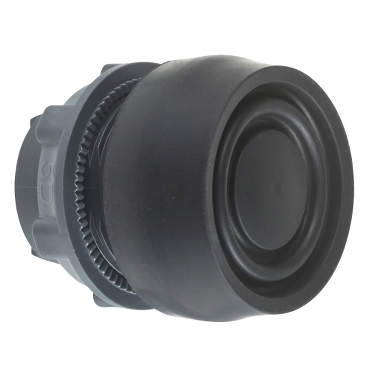

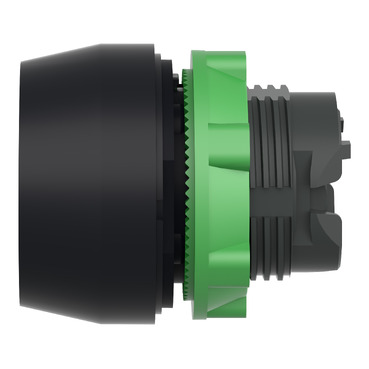

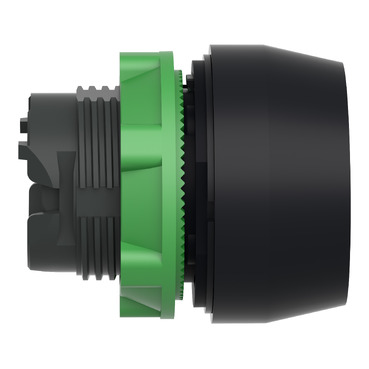

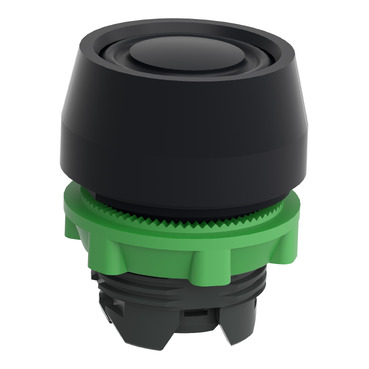

Harmony XB5 push-button head plastic, flush, black, 22mm, spring return, coloured boot, unmarked

Item Number: ZB5AP2S

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110999372	-
5	PAC	53389110999377	-

Specifications

Design

Range of product

Harmony XB5

Product or component type

head for non-illuminated push-button

Product compatibility

legend holder

Warranty

18 months

Physical

Sale per indivisible quantity

Net weight

0.021 kg

Mechanical durability

10000000 cycles

Marking

unmarked

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to ISO 20653

Ik degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-5-1
CSA C22.2 No 14
UL 508
IEC 60947-5-4
JIS C8201-5-1
IEC 60947-1
JIS C8201-1

Product certifications

CSA
DNV
BV
LROS (Lloyds register of shipping)
UL listed

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2303008EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

At least in Europe

Package 1 bare product quantity

Average percentage of recycled plastic content

0 %

Weee label

Device short name

ZB5

Bezel material

dark grey plastic

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

black flush, unmarked

Operator additional information

coloured boot

Cad overall width

30 mm

Cad overall height

30 mm

Cad overall depth

33 mm

Main group

push-button

Group of product

silicone boot push

Station name

XALD 1...5 cut-outs
XALK 2...5 cut-outs

Cap/operator or lens colour

black

Electrical composition code

C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
SF1 for <3 contacts using single blocks in front mounting
SR1 for <3 contacts using single blocks in rear mounting

Customizable

Compatibility code

ZB5

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.7 cm

Package 1 width

3.6 cm

Package 1 length

5.7 cm

Package 1 weight

18 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

4.5 cm

Package 2 width

26.5 cm

Package 2 length

3.4 cm

Package 2 weight

94 g

Unit type of package 3

S03

Number of units in package 3

200

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

4.286 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.10490129814227978

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.004942172722261331

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0037316896179218607

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.02558262857344531

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

0.13915778905590828

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI2303008EN

Take-back

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
End of Life Manual
Environmental Disclosure
Technical illustration
Technical Drawing
eTechPub
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Colour ()

Harmony XB5 push-button head plastic, flush, black, 22mm, spring return, coloured boot, unmarked

Item Number: ZB5AP2S

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

ZB5AP2S_CAD

Harmony XALD and XALK plastic control stations catalog English

Discover the Harmony XB5 plastic Control and signaling units catalog

XB4-XB5 - Mounting - Instruction Sheet

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions

XB5 Plastic Non Illuminated Push Button - Product Environmental Profile

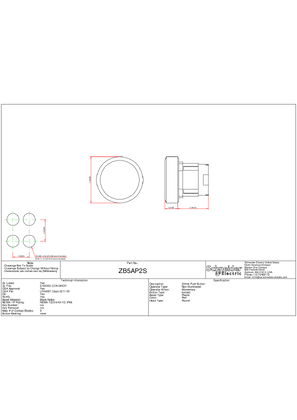

Technical Illustration - Dimensions
