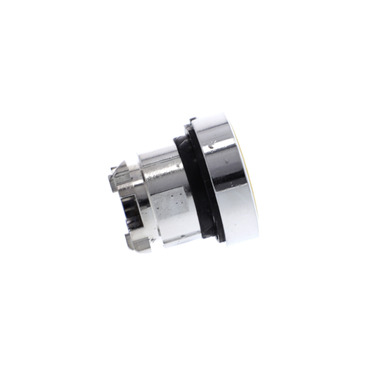

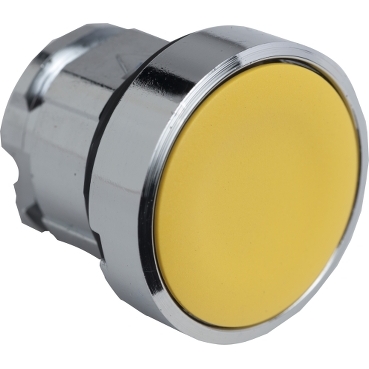

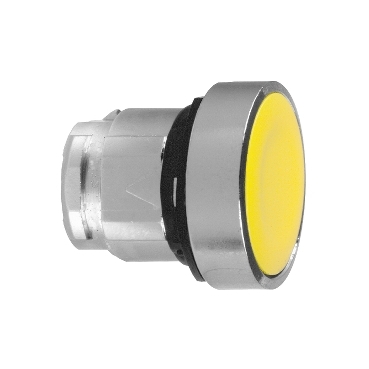

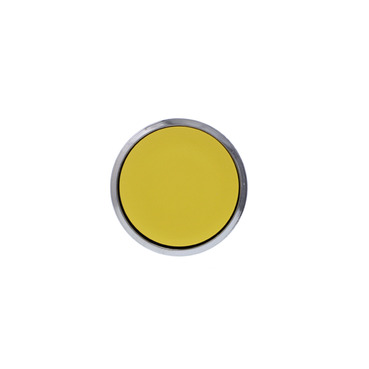

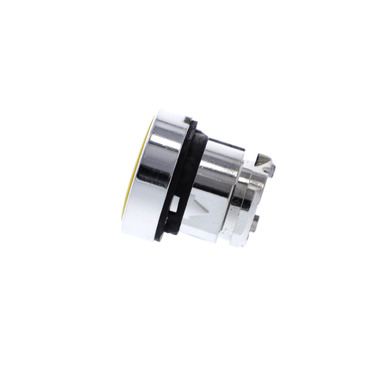

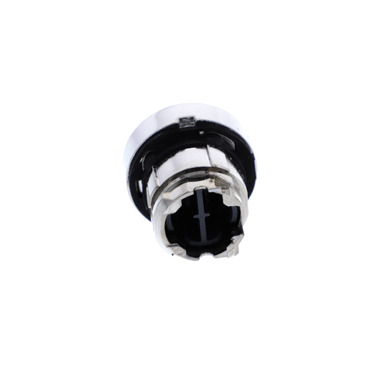

Harmony XB4, push-button head, metal, flush, yellow, 22mm, spring return, unmarked

Harmony XB4, push-button head, metal, flush, yellow, 22mm, spring return, unmarked

Item Number: ZB4BA5

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

1

Mechanical durability

10000000 cycles

Marking

unmarked

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

<ul><li>IP66 conforming to IEC 60529</li><li>IP67</li><li>IP69</li><li>IP69K</li></ul>

Ik degree of protection

IK06 conforming to IEC 50102

Standards

<ul><li>UL 508</li><li>IEC 60947-5-5</li><li>IEC 60947-5-4</li><li>IEC 60947-5-1</li><li>JIS C8201-5-1</li><li>CSA C22.2 No 14</li><li>IEC 60947-1</li><li>JIS C8201-1</li></ul>

Product certifications

<ul><li>BV</li><li>CSA</li><li>DNV</li><li>LROS (Lloyds register of shipping)</li><li>UL listed</li></ul>

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2308035EN

Circularity profile

ENVEOLI2308035EN

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

300

Package 3 bare product quantity

2400

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22.5 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

yellow flush, unmarked

Cap/operator or lens colour

yellow

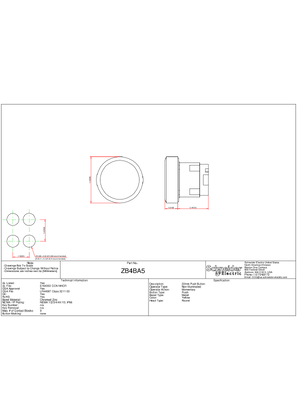

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

28 mm

Electrical composition code

<ul><li>C1 for <9 contacts using single blocks in front mounting</li><li>C2 for <9 contacts using single and double blocks in front mounting</li><li>C11 for <3 contacts using single blocks in front mounting</li><li>C15 for <1 contacts using single blocks in front mounting</li></ul>

Main group

push-button

Group of product

flush push non illuminated

Cap/operator or lens colour

yellow

Customizable

no

Customizable

1

Gcr bridge

ZB4BACUST01

Compatibility code

ZB4

Protective treatment

TH

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

<ul><li>NEMA 13</li><li>NEMA 4X</li></ul>

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

<ul><li>30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27</li><li>50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27</li></ul>

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.400 cm

Package 1 width

3.400 cm

Package 1 length

5.200 cm

Package 1 weight

29.000 g

Unit type of package 2

S03

Number of units in package 2

300

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

9.140 kg

Unit type of package 3

P06

Number of units in package 3

2400

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

81.404 kg

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Sustainable packaging

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.2431589087
