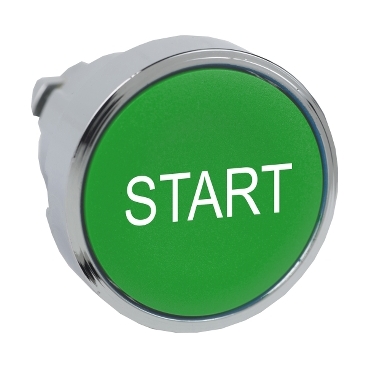

Harmony XB4, Push button head, metal, flush, green, 22mm, spring return, marked START

Harmony XB4, Push button head, metal, flush, green, 22mm, spring return, marked START

Item Number: ZB4BA333

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

1

Mechanical durability

10000000 cycles

Marking

START

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-4|CSA C22.2 No 14|IEC 60947-5-5|IEC 60947-1|IEC 60947-5-1|UL 508|JIS C8201-5-1|JIS C8201-1

Product certifications

BV|CSA|DNV|LROS (Lloyds register of shipping)|UL listed

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308035EN

Circularity profile

ENVEOLI2308035EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

150

Package 3 bare product quantity

1200

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22.5 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

green flush, START (white)

Cap/operator or lens colour

green

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

28 mm

Electrical composition code

C1 for <9 contacts using single blocks in front mounting|C2 for <9 contacts using single and double blocks in front mounting|C11 for <3 contacts using single blocks in front mounting|C15 for <1 contacts using single blocks in front mounting

Main group

push-button

Group of product

flush push with marking

Cap/operator or lens colour

green

Colour of marking

white

Customizable

no

Customizable

0

Compatibility code

ZB4

Protective treatment

TH

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.500 cm

Package 1 width

4.600 cm

Package 1 length

5.200 cm

Package 1 weight

28.000 g

Unit type of package 2

S03

Number of units in package 2

150

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.716 kg

Unit type of package 3

P06

Number of units in package 3

1200

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

47.804 kg

Green premium status for reporting

Green Premium product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.2431589087
