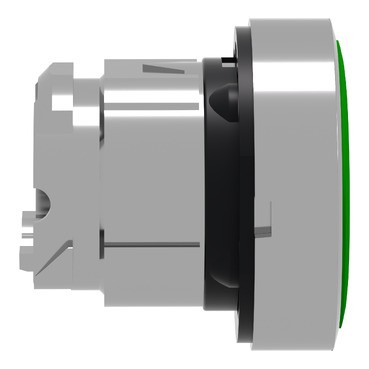

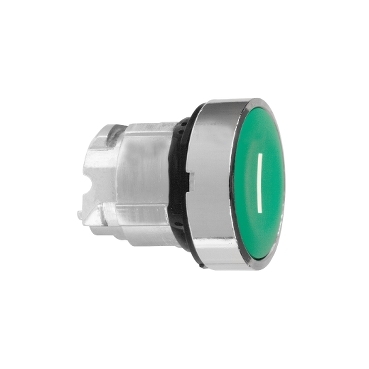

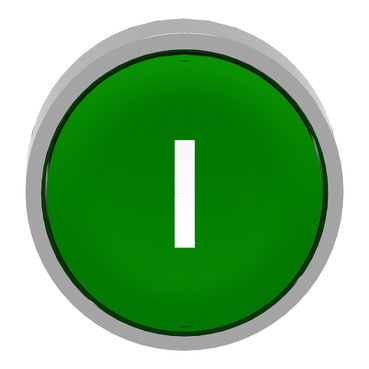

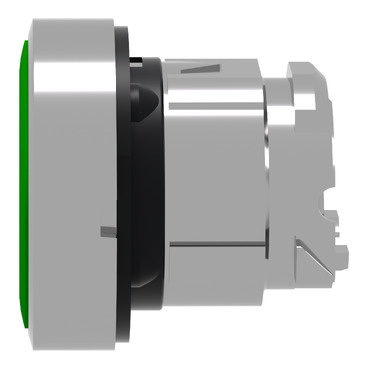

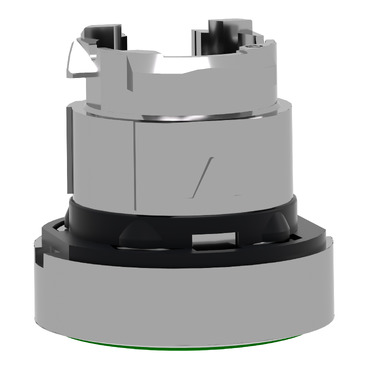

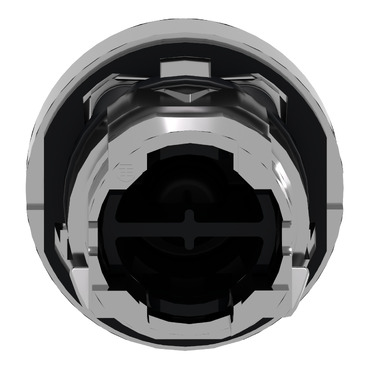

Harmony XB4 push-button head metal, flush, green, 22mm, spring return, marked I

Item Number: ZB4BA331

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110887518	-
5	PAC	53389110887513	-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

Mechanical durability

10000000 cycles

Marking

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP67
IP69
IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

UL 508
IEC 60947-5-5
IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-4
IEC 60947-1
JIS C8201-1

Product certifications

BV
CSA
DNV
LROS (Lloyds register of shipping)
UL listed

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308035EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

300

Weee label

Package 1 bare product quantity

At least in Europe

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22.5 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

green flush, I (white)

Cap/operator or lens colour

green

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

28 mm

Electrical composition code

C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting

Main group

push-button

Group of product

flush push with marking

Cap/operator or lens colour

green

Colour of marking

white

Customizable

Compatibility code

ZB4

Protective treatment

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.500 cm

Package 1 width

3.400 cm

Package 1 length

5.400 cm

Package 1 weight

29.000 g

Unit type of package 2

S03

Number of units in package 2

300

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

9.015 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.2055525504

Carbon footprint of the manufacturing phase [a1 to a3]

0.2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0037923606

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0058165125

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0366817319

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

0.2518431554

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI2308035EN

Take-back

Warranty (in months)

Show all specifications
