RM35 modular relay_Multifunction voltage control relay

Harmony, Modular 1-phase voltage control relay, 5 A, 2 CO, range 1..100 V, 24..240 V AC/DC

Home ProductsIndustrialHarmonyModular 1 phase Voltage Control Relay

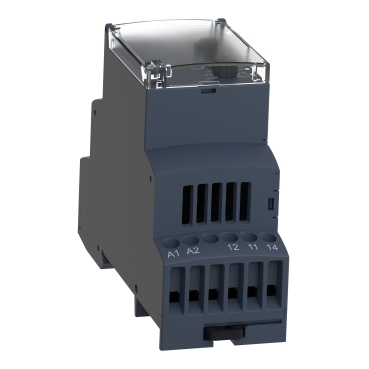

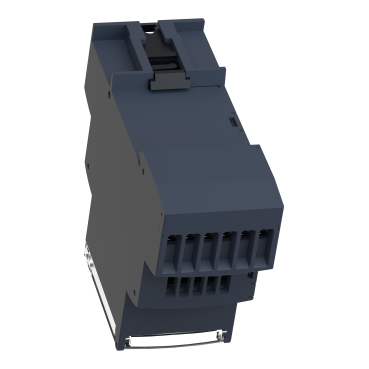

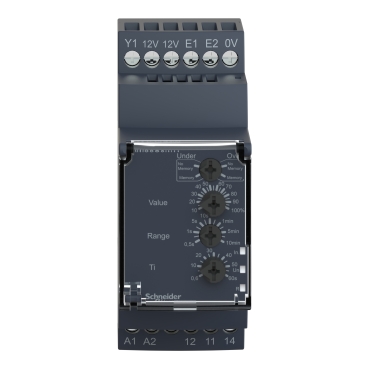

Harmony Control Relays, Modular 1 phase Voltage Control Relay, 5A, 2CO, range 1..100V, 24..240V AC DC

Item Number: RM35UA12MW

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119405300	-

Specifications

Design

Range of product

Harmony Control Relays

Product or component type

voltage control relay

Warranty

18 months

Physical

Connections - terminals

screw connectors

[in] rated current

5 A

Insulation resistance

> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5|> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1|> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5|> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1|> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5|> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1

Local signalling

LED (green) for power ON|LED (yellow) for relay ON

Connections - terminals

screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end|screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end|screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end|screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

Electrical durability

100000 cycles

Mechanical durability

30000000 cycles

Control type

without test button

Width

35 mm

Net weight

0.08 kg

Ambient air temperature for operation

-20...50 °C

Standards

IEC 60255-6

Product certifications

GOST|C-Tick|UL|GL|CSA

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

Ip degree of protection

IP20 (terminals) conforming to IEC 60529|IP30 (casing) conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

Environmental disclosure

ENVPEP1601004EN

Circularity profile

ENVEOLI1601004EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Relay type

multifunction voltage control relay

Relay name

RM35UA

Relay monitored parameters

overvoltage or undervoltage detection

Time delay type

adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault

Switching capacity in va

1250 VA

Measurement range

1...100 V AC/DC

Contacts type and composition

2 C/O

[uc] control circuit voltage

24...240 V

Reset time

1500 ms time delay

Maximum switching voltage

250 V AC/DC

Minimum switching current

10 mA at 5 V DC

Maximum switching current

5 A AC/DC

Control circuit voltage limits

- 15 % + 10 % Un

Supply voltage limits

20.4...264 V AC/DC

Power consumption in va

0...3.5 VA AC

Maximum power consumption in w

0.6 W DC

Immunity to microbreaks

10 ms

Control circuit frequency

40...70 Hz +/- 10 %

Resistance across terminals

110 mOhm at E2-M terminals|22 mOhm at E1-M terminals|220 mOhm at E3-M terminals

Output contacts

2 C/O

Nominal output current

5 A

Hysteresis

5...50 % of threshold setting

Measurement accuracy

+/- 10 % of the full scale value

Polarity

non reversible polarity on DC supply

Run-up delay at power-up

600 ms

Maximum measuring cycle

30 ms measurement cycle as true rms value

Repeat accuracy

+/- 0.5 % for input and measurement circuit|+/- 2 % for time delay

Sensitivity scale

1...10 V E1-M terminals|10...100 V E3-M terminals|5...50 V E2-M terminals

Measurement error

+/- 0.05 %/°C with temperature variation|< 1 % over the whole range with voltage variation

Quality labels

Threshold setting

10...100 %

Operating position

any position without derating

Overvoltage category

III conforming to IEC 60664-1

[ui] rated insulation voltage

250 V conforming to IEC 60664-1|600 V conforming to IEC 60664-1

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Utilisation category

Operating rate

<= 360 operations/hour full load

[us] rated supply voltage

24...240 V AC/DC 50/60 Hz, non self-powered

Safety reliability data

B10d = 290000|MTTFd = 308.2 years

Compatibility code

RM3

Electromagnetic compatibility

emission standard for industrial environments conforming to IEC 61000-6-4|emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3|immunity for industrial environments conforming to NF EN/IEC 61000-6-2

Vibration resistance

0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6|1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1

Shock resistance

5 gn conforming to IEC 60068-2-27

Pollution degree

3 conforming to IEC 60664-1

Directives

73/23/EEC - low voltage directive|89/336/EEC - electromagnetic compatibility

Dielectric test voltage

2 kV, 1 min AC 50 Hz conforming to IEC 60255-5|2 kV, 1 min AC 50 Hz conforming to IEC 60664-1

Non-dissipating shock wave

4 kV conforming to IEC 60255-5|4 kV conforming to IEC 60664-1|4 kV conforming to IEC 61000-4-5

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.5 cm

Package 1 width

7.8 cm

Package 1 length

9.5 cm

Package 1 weight

137.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

7.305 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony Control Relays, Modular 1 phase Voltage Control Relay, 5A, 2CO, range 1..100V, 24..240V AC DC

Item Number: RM35UA12MW

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

Technical illustration

Application Notes

Certificates (MSDS)

eTechPub

Declaration of Conformity

Zelio Control - 3D CAD

Discover Harmony Control Relays Catalog - English

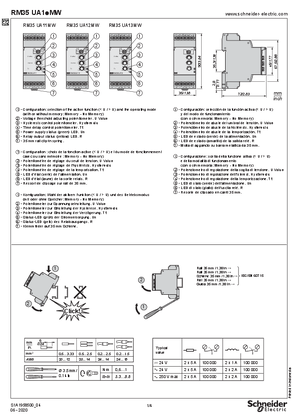

RM35 UA... Voltage control, single-phase and d.c., Instruction Sheet

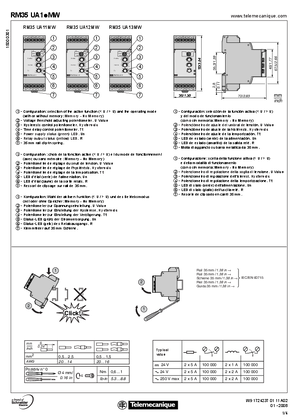

RM35UA1.MW Voltage control Relay, single-phase and d.c., Instruction Sheet
