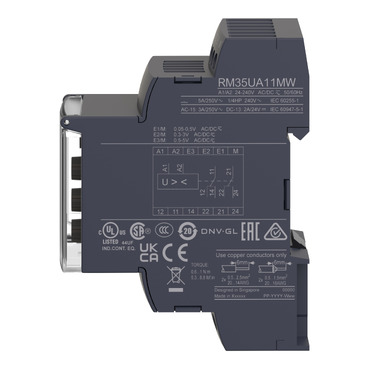

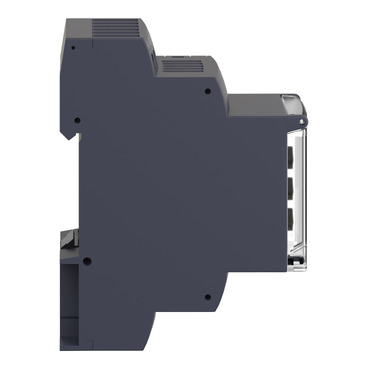

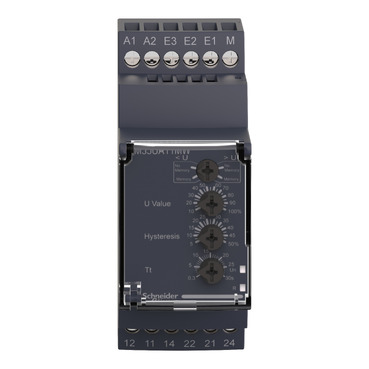

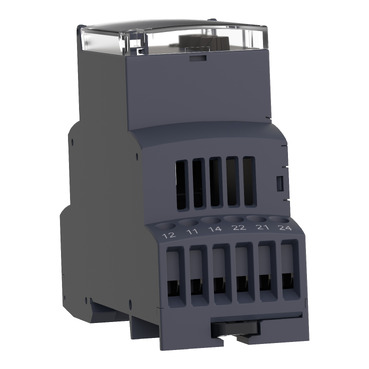

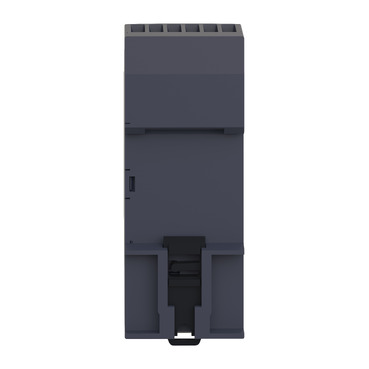

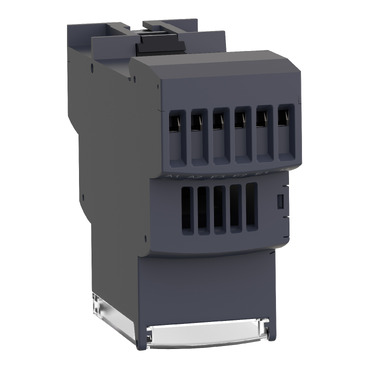

Harmony Control Relays Modular 1 phase Voltage Control Relay 5A, 2CO, range 0.05...5V, 24..240V AC DC

Home ProductsIndustrialHarmonyModular 1 phase Voltage Control Relay

Harmony Control Relays Modular 1 phase Voltage Control Relay 5A, 2CO, range 0.05...5V, 24..240V AC DC

Item Number: RM35UA11MW

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Control Relays

Product or component type

voltage control relay

Warranty

18 months

Physical

Connections - terminals

screw connectors

[in] rated current

5 A

Insulation resistance

  • > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
  • > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1
  • > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5
  • > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1
  • > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5
  • > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1

Local signalling

  • LED (green) for power ON
  • LED (yellow) for relay ON

Connections - terminals

  • screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
  • screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
  • screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

Electrical durability

100000 cycles

Mechanical durability

30000000 cycles

Control type

without test button

Width

35 mm

Net weight

0.08 kg

Ambient air temperature for operation

-20...50 °C

Standards

IEC 60255-6

Product certifications

  • GOST
  • CSA
  • GL
  • UL
  • C-Tick

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

Ip degree of protection

  • IP20 (terminals) conforming to IEC 60529
  • IP30 (casing) conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1601004EN

Circularity profile

ENVEOLI1601004EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

48

Relay type

multifunction voltage control relay

Relay name

RM35UA

Relay monitored parameters

overvoltage or undervoltage detection

Time delay type

adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault

Switching capacity in va

1250 VA

Measurement range

0.05...5 V AC/DC

Contacts type and composition

2 C/O

[uc] control circuit voltage

24...240 V

Reset time

1500 ms time delay

Maximum switching voltage

250 V AC/DC

Minimum switching current

10 mA at 5 V DC

Maximum switching current

5 A AC/DC

Control circuit voltage limits

- 15 % + 10 % Un

Supply voltage limits

20.4...264 V AC/DC

Power consumption in va

0...3.5 VA AC

Maximum power consumption in w

0.6 W DC

Immunity to microbreaks

10 ms

Control circuit frequency

40...70 Hz +/- 10 %

Resistance across terminals

  • 30 mOhm at E2-M terminals
  • 5 mOhm at E1-M terminals
  • 50 mOhm at E3-M terminals

Output contacts

2 C/O

Nominal output current

5 A

Hysteresis

5...50 % of threshold setting

Measurement accuracy

+/- 10 % of the full scale value

Polarity

non reversible polarity on DC supply

Run-up delay at power-up

600 ms

Maximum measuring cycle

30 ms measurement cycle as true rms value

Repeat accuracy

  • +/- 0.5 % for input and measurement circuit
  • +/- 2 % for time delay

Sensitivity scale

  • 0.05...0.5 V E1-M terminals
  • 0.3...3 V E2-M terminals
  • 0.5...5 V E3-M terminals

Measurement error

  • +/- 0.05 %/°C with temperature variation
  • < 1 % over the whole range with voltage variation

Quality labels

CE

Threshold setting

10...100 %

Operating position

any position without derating

Overvoltage category

III conforming to IEC 60664-1

[ui] rated insulation voltage

  • 250 V conforming to IEC 60664-1
  • 600 V conforming to IEC 60664-1

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Utilisation category

  • AC-12 conforming to IEC 60947-5-1
  • AC-13 conforming to IEC 60947-5-1
  • AC-14 conforming to IEC 60947-5-1
  • AC-15 conforming to IEC 60947-5-1
  • DC-12 conforming to IEC 60947-5-1
  • DC-13 conforming to IEC 60947-5-1
  • DC-14 conforming to IEC 60947-5-1

Operating rate

<= 360 operations/hour full load

[us] rated supply voltage

24...240 V AC/DC 50/60 Hz, non self-powered

Safety reliability data

  • B10d = 290000
  • MTTFd = 308.2 years

Compatibility code

RM3

Electromagnetic compatibility

  • emission standard for industrial environments conforming to IEC 61000-6-4
  • emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
  • immunity for industrial environments conforming to NF EN/IEC 61000-6-2

Vibration resistance

  • 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
  • 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1

Shock resistance

5 gn conforming to IEC 60068-2-27

Pollution degree

3 conforming to IEC 60664-1

Directives

  • 73/23/EEC - low voltage directive
  • 89/336/EEC - electromagnetic compatibility

Dielectric test voltage

  • 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
  • 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1

Non-dissipating shock wave

  • 4 kV conforming to IEC 60255-5
  • 4 kV conforming to IEC 60664-1
  • 4 kV conforming to IEC 61000-4-5

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.500 cm

Package 1 width

9.600 cm

Package 1 length

7.800 cm

Package 1 weight

140.000 g

Unit type of package 2

S03

Number of units in package 2

48

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.475 kg

Packaging without single use plastic

Yes

Scip number

5e3fdf99-611b-4d07-ad17-6eba84ab488b

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

Yes

Sustainable packaging

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Global warming ; total life cycle​

52 kg CO2 eq.

Carbon footprint (kg.eq.co2 per cr, total life cycle)

52.2151352258

Minimum percentage of recycled plastic content

0
