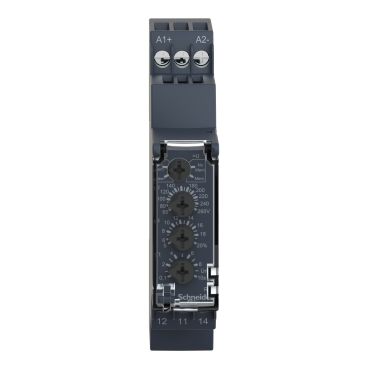

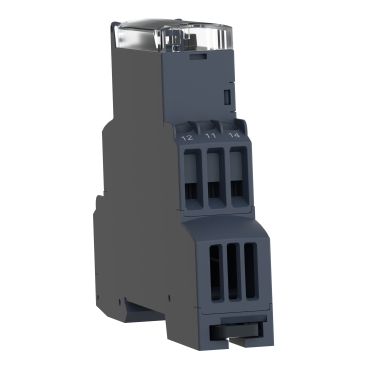

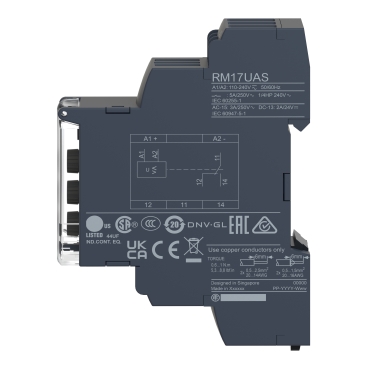

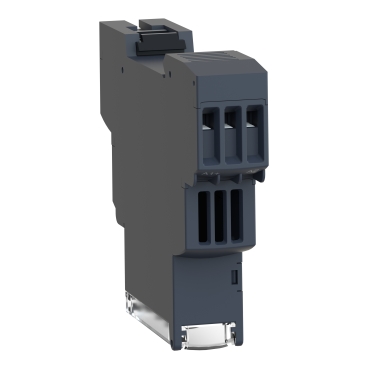

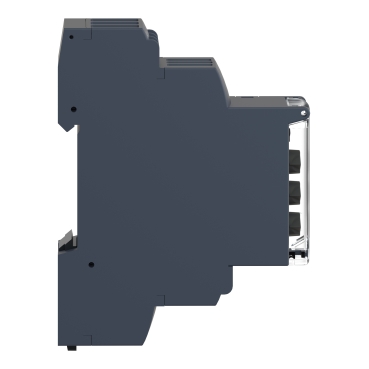

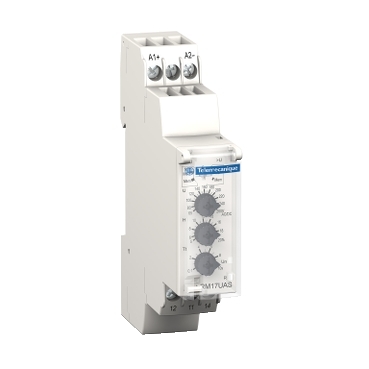

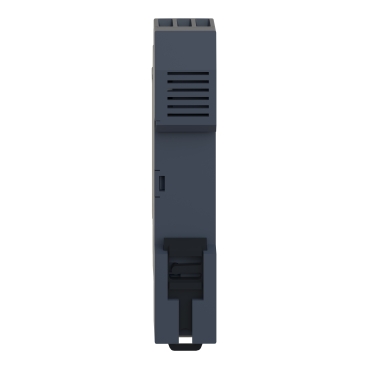

Harmony Control Relays Modular 1-phase voltage Control Relay 5A, 1CO, 65…260 V AC/DC
Item Number: RM17UAS15
Datasheet
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Connections - terminals
[in] rated current
Insulation resistance
- > 500 MOhm at 500 V DC conforming to IEC 60255-5
- > 500 MOhm at 500 V DC conforming to IEC 60664-1
Local signalling
- LED (green) for power ON
- LED (yellow) for relay ON
Connections - terminals
- screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
- screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
- screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end
- screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Mounting support
Electrical durability
Mechanical durability
Control type
Width
Net weight
Ambient air temperature for operation
Standards
Product certifications
- GL
- UL
- GOST
- CSA
- C-Tick
Ambient air temperature for storage
Relative humidity
Ip degree of protection
- IP20 (terminals) conforming to IEC 60529
- IP30 (casing) conforming to IEC 60529
Reach regulation
Eu rohs directive
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
California proposition 65
Others
Package 2 bare product quantity
Package 1 bare product quantity
Relay type
Product specific application
Relay name
Relay monitored parameters
Time delay type
Switching capacity in va
Measurement range
Contacts type and composition
[uc] control circuit voltage
Reset time
Maximum switching voltage
Minimum switching current
Maximum switching current
Supply voltage limits
Power consumption in va
Maximum power consumption in w
Immunity to microbreaks
Control circuit frequency
Output contacts
Nominal output current
Hysteresis
Measurement accuracy
Polarity
Run-up delay at power-up
- 1000 ms DC
- 500 ms AC
Maximum measuring cycle
Repeat accuracy
- +/- 0.5 % for input and measurement circuit
- +/- 1 % for time delay
Measurement error
- < 1 % over the whole range with voltage variation
- 0.2 %/°C with temperature variation
Quality labels
Operating position
Overvoltage category
[ui] rated insulation voltage
- 250 V conforming to IEC 60664-1
- 400 V conforming to IEC 60664-1
Tightening torque
Housing material
Utilisation category
- AC-12 conforming to IEC 60947-5-1
- AC-13 conforming to IEC 60947-5-1
- AC-14 conforming to IEC 60947-5-1
- AC-15 conforming to IEC 60947-5-1
- DC-12 conforming to IEC 60947-5-1
- DC-13 conforming to IEC 60947-5-1
- DC-14 conforming to IEC 60947-5-1
Operating rate
[us] rated supply voltage
Compatibility code
Electromagnetic compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4
- emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
- immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Vibration resistance
- 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
- 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
Shock resistance
Pollution degree
Directives
- 89/336/EEC - electromagnetic compatibility
- 73/23/EEC - low voltage directive
Dielectric test voltage
- 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
- 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
Non-dissipating shock wave
- 4 kV conforming to IEC 60255-5
- 4 kV conforming to IEC 60664-1
- 4 kV conforming to IEC 61000-4-5
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Sustainable packaging
Weee
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-

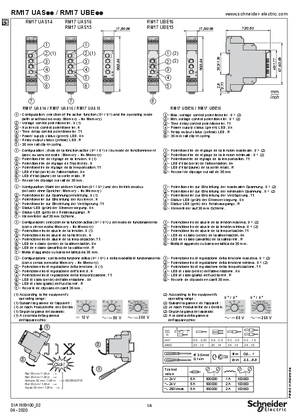

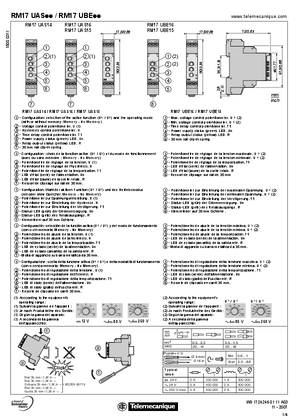

Installation Instruction
-
Technical illustration
-
Application Notes
-
Declaration of Conformity
-
Certificates (MSDS)
-
eTechPub
DNV Certificate RM17 RM35
VERSION
1.0
DATE
28 Apr 2025
REVISION
1.0

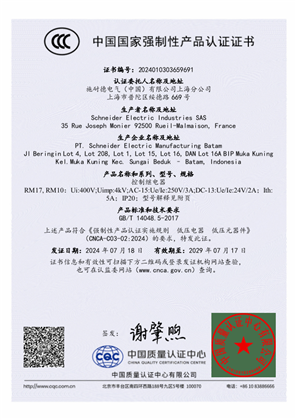

CNCA-CCC RM10 RM17
