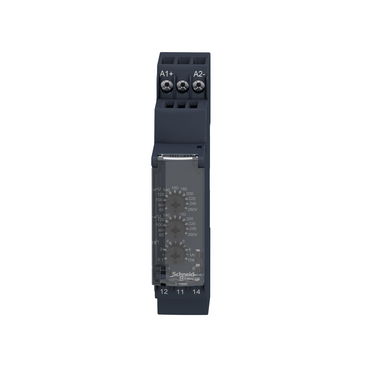

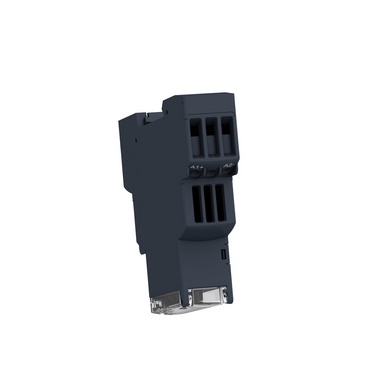

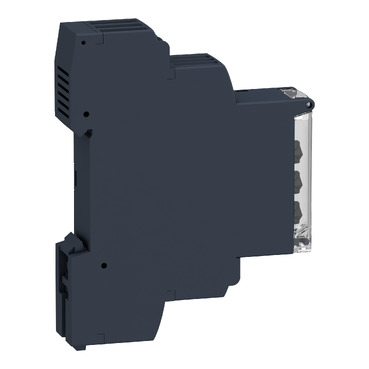

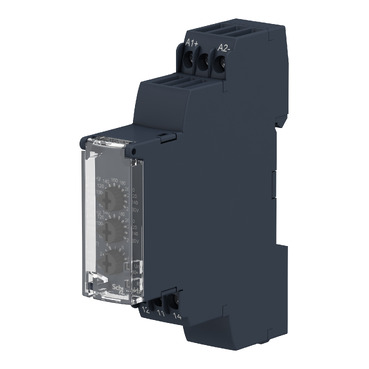

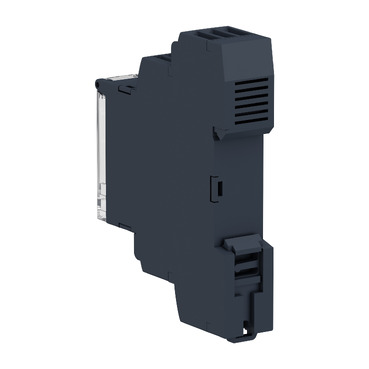

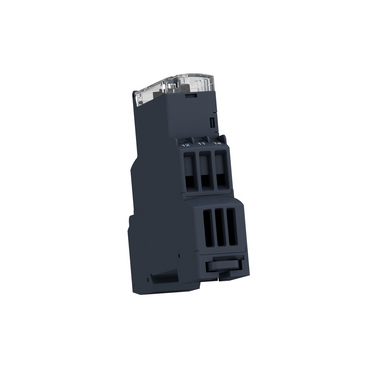

Harmony Control Relays Modular 1-phase voltage Control Relay 5A, 1CO, 20…80 V AC/DC

Item Number: RM17UBE16

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width<ul><li>17.5 mm</li><li>0.7 in</li></ul>

Height<ul><li>90 mm</li><li>3.5 in</li></ul>

Depth<ul><li>72 mm</li><li>2.8 in</li></ul>

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119405157	-

Specifications

Design

Range of product	Harmony Control Relays
Product or component type	voltage control relay

Physical

Control type	without test button
[in] rated current	5 A
Electrical durability	100000 cycles
Mechanical durability	30000000 cycles
Standards	IEC 60255-6
Product certifications	C-Tick GOST GL CSA UL
Ambient air temperature for storage	-40...70 °C -40...158 °F
Ambient air temperature for operation	-20...50 °C
Relative humidity	95 % at 55 °C conforming to IEC 60068...2-30
Ip degree of protection	IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529
Insulation resistance	> 500 MOhm at 500 V DC conforming to IEC 60255-5 > 500 MOhm at 500 V DC conforming to IEC 60664-1
Connections - terminals	screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end screw terminals, 1 x 0.2...2 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end
Connections - terminals	screw connectors
Local signalling	LED (green) for power ON LED (yellow) for relay ON
Mounting support	35 mm symmetrical DIN rail conforming to IEC 60715
Width	17.5 mm 0.7 in
Height	90 mm 3.5 in
Depth	72 mm 2.8 in
Net weight	0.09 kg 0.2 lb(US)
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1601001EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	48
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Relay type	voltage control relay
Product specific application	for single-phase and DC supply
Relay name	RM17UBE
Relay monitored parameters	overvoltage and undervoltage detection
Contacts type and composition	1 C/O
[uc] control circuit voltage	24...48 V
[us] rated supply voltage	, self-powered
Supply voltage limits	15...100 V AC/DC
Measurement range	20...80 V AC/DC
Hysteresis	5 % fixed of threshold setting
Repeat accuracy	+/- 0.5 % for input and measurement circuit +/- 1 % for time delay
Time delay type	adjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault
Setting accuracy of time delay	10 %
Reset time	1500 ms time delay
Run-up delay at power-up	1000 ms DC 500 ms AC
Output contacts	1 C/O
Nominal output current	5 A
Maximum switching voltage	250 V AC/DC
Switching capacity in va	1250 VA
Minimum switching current	10 mA at 5 V DC
Maximum switching current	5 A AC/DC
Power consumption in va	0...3.9 VA AC
Maximum power consumption in w	1.6 W DC
Control circuit frequency	50...60 Hz +/- 10 %
Measurement accuracy	+/- 10 % of the full scale value
Polarity	non reversible polarity on DC supply
Maximum measuring cycle	150 ms measurement cycle as true rms value
Quality labels	CE
Operating rate	<= 360 operations/hour full load
Functionality	overvoltage and undervoltage detection
Compatibility code	RM17
Electromagnetic compatibility	emission standard for industrial environments conforming to IEC 61000-6-4 emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Directives	73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility
Pollution degree	3 conforming to IEC 60664-1
Overvoltage category	III conforming to IEC 60664-1
Dielectric test voltage	2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
[ui] rated insulation voltage	250 V conforming to IEC 60664-1 400 V conforming to IEC 60664-1
Operating position	any position without derating
Tightening torque	0.6...1 N.m conforming to IEC 60947...1
Housing material	polycarbonate
Safety reliability data	MTTFd = 502.2 years B10d = 470000
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.700 cm
Package 1 width	7.800 cm
Package 1 length	9.600 cm
Package 1 weight	83.000 g
Unit type of package 2	S02
Number of units in package 2	48
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.463 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	30 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.78033307730192
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.23201991452313356
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00035159592896852283
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	28.27254445988508
Carbon footprint of the use phase [b2, b3, b4, b6]	28 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.21213497558104538
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	30.497384023220146
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	5e3fdf99-611b-4d07-ad17-6eba84ab488b
End of life manual availability	ENVEOLI1601001EN
Take-back	No
Warranty (in months)	18
