Home ProductsIndustrialHarmonyHead for non illuminated pushbutton

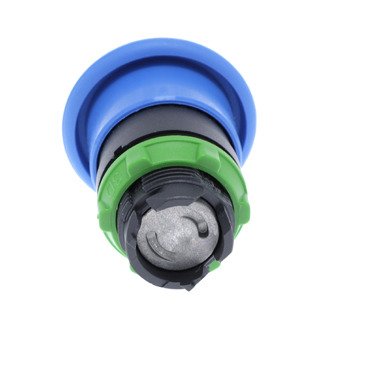

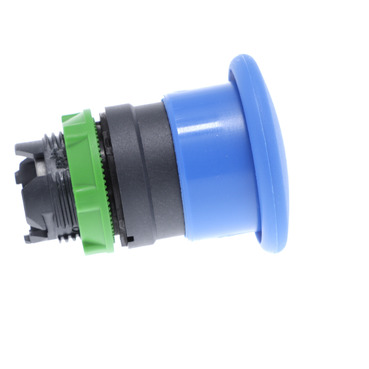

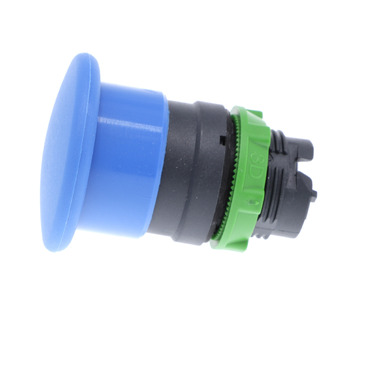

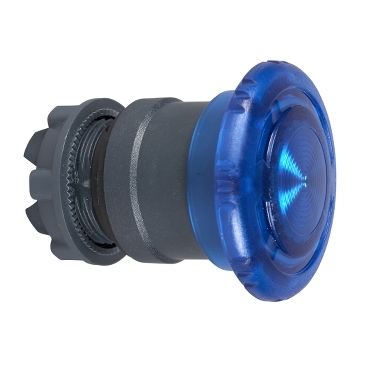

Harmony XB5 Head for non illuminated pushbutton plastic, blue, mushroom 40mm, 22mm, spring return

Item Number: ZB5AC6

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110904949	-

Specifications

Design

Range of product

Harmony XB5

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

Device presentation

basic element

Net weight

0.046 kg

Mechanical durability

5000000 cycles

Marking

unmarked

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP69
IP69K

Ik degree of protection

IK03 conforming to IEC 50102

Standards

UL 508
IEC 60947-1
JIS C8201-5-1
CSA C22.2 No 14
IEC 60947-5-4
IEC 60947-5-1
JIS C8201-1

Product certifications

CSA
DNV
BV
LROS (Lloyds register of shipping)
UL listed

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2303008EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

Legacy weee scope

Out

At least in Europe

Weee label

Device short name

ZB5

Bezel material

dark grey plastic

Head type

standard

Mounting diameter

22 mm

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

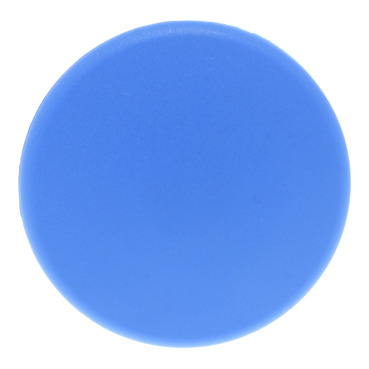

blue mushroom Ø 40 mm, unmarked

Cad overall width

40 mm

Cad overall height

40 mm

Cad overall depth

52 mm

Main group

mushroom head

Group of product

mush. spring return non illum.

Station name

XALD 1 cut-out
XALK 1 cut-out

Cap/operator or lens colour

blue

Electrical composition code

C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
SF1 for <3 contacts using single blocks in front mounting
SR1 for <3 contacts using single blocks in rear mounting

Customizable

Gcr bridge

ZB5ACCUST01

Compatibility code

ZB5

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8.800 cm

Package 1 width

4.400 cm

Package 1 length

5.400 cm

Package 1 weight

47.000 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.309 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.20230964641725385

Carbon footprint of the manufacturing phase [a1 to a3]

0.2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.009531333107218282

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00719682997742073

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.04933792653450167

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

0.26837573603639453

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI2303008EN

Take-back

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
End of Life Manual
Environmental Disclosure
Technical illustration
Technical Drawing
eTechPub
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Colour ()

Harmony XB5 Head for non illuminated pushbutton plastic, blue, mushroom 40mm, 22mm, spring return

Item Number: ZB5AC6

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Missing CAD 2024 project C&S

ZB5AC6_CAD

Harmony XALD and XALK plastic control stations catalog English

Discover the Harmony XB5 plastic Control and signaling units catalog

XB4-XB5 - Mounting - Instruction Sheet

XB4.. / XB5... Mounting, Instruction Sheet

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions

XB5 Plastic Non Illuminated Push Button - Product Environmental Profile

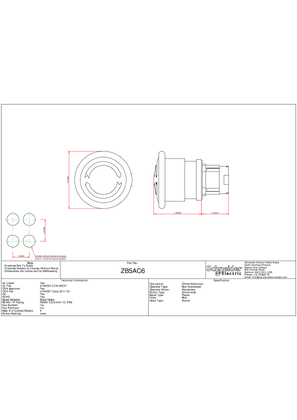

Technical Illustration - Dimensions
