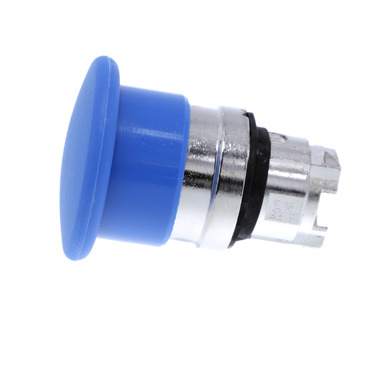

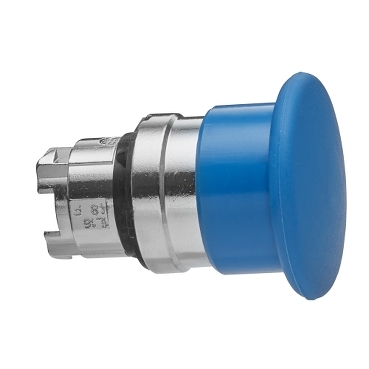

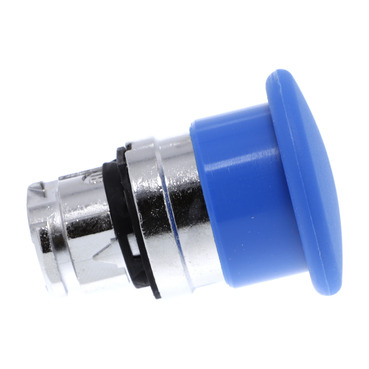

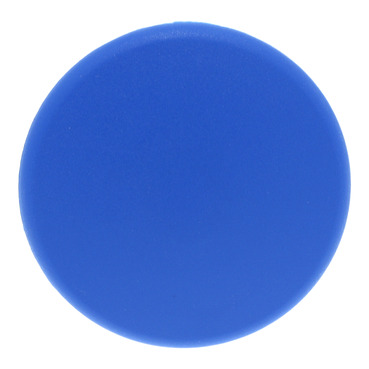

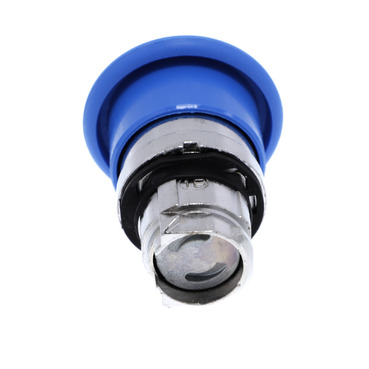

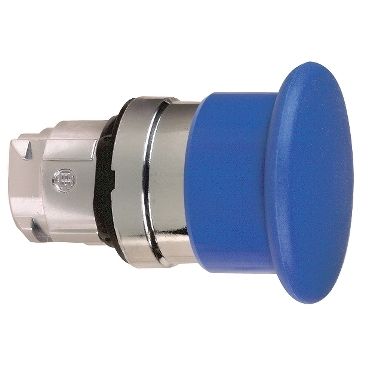

Harmony XB4 Head for non illuminated pushbutton mushroom 40mm, metal, blue, 22mm, spring return

Item Number: ZB4BC6

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110888478	-

Specifications

Design

Range of product	Harmony XB4
Product or component type	head for non-illuminated push-button
Warranty	18 months

Physical

Sale per indivisible quantity	1
Mechanical durability	5000000 cycles
Marking	unmarked
Device presentation	basic element
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP69 IP69K
Ik degree of protection	IK06 conforming to IEC 50102
Standards	CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 EN/IEC 60947-5-1 JIS C8201-1
Product certifications	BV CSA DNV LROS (Lloyds register of shipping) UL listed
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2308035EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
	At least in Europe
Package 2 bare product quantity	42
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	ZB4
Bezel material	chromium plated metal
Mounting diameter	22 mm
Head type	standard
Shape of signaling unit head	round
Type of operator	spring return
Operator profile	blue mushroom Ø 40 mm, unmarked
Cap/operator or lens colour	blue
Cad overall width	40 mm
Cad overall height	40 mm
Cad overall depth	52 mm
Electrical composition code	C1 for <9 contacts using single blocks in front mounting C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting
Main group	mushroom head
Group of product	mush. spring return non illum.
Cap/operator or lens colour	blue
Gcr bridge	ZB4BCCUST01
Compatibility code	ZB4
Protective treatment	TH
Overvoltage category	class I conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Nema degree of protection	UL type 4X/13
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.500 cm
Package 1 width	5.500 cm
Package 1 length	8.800 cm
Package 1 weight	76.000 g
Unit type of package 2	S02
Number of units in package 2	42
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.504 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5457774614
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0100693713
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0154438434
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0973963227
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.6686869988
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI2308035EN
Take-back	No
Warranty (in months)	18
