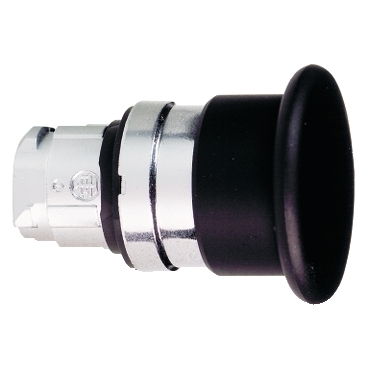

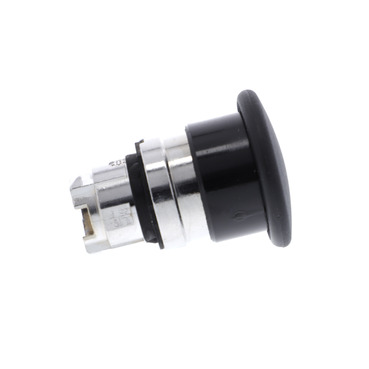

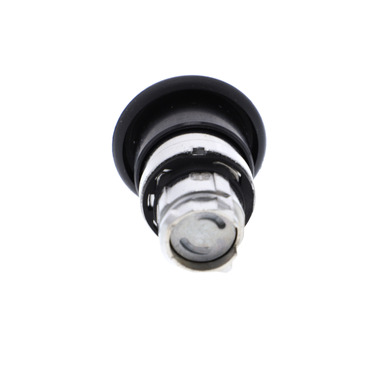

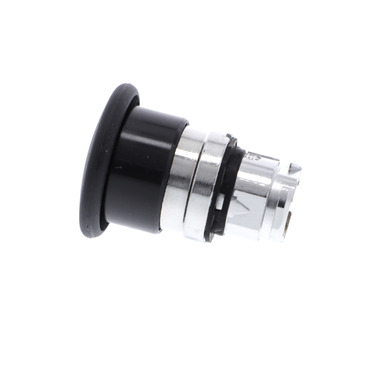

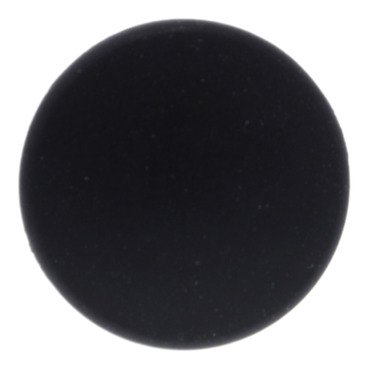

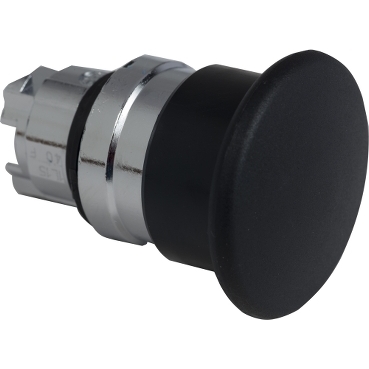

Harmony XB4, Head for non illuminated pushbutton, mushroom 40mm, metal, black, 22mm, spring return

Home ProductsIndustrialHarmonyHead for non illuminated pushbutton

Harmony XB4, Head for non illuminated pushbutton, mushroom 40mm, metal, black, 22mm, spring return

Item Number: ZB4BC2

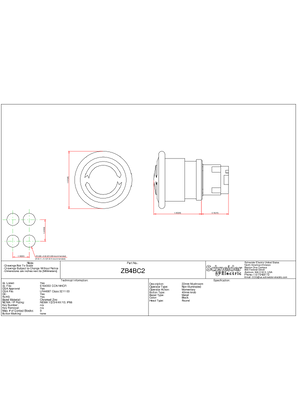

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for non-illuminated push-button

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Sale per indivisible quantity

1

Mechanical durability

5000000 cycles

Marking

unmarked

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP69|IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

EN/IEC 60947-1|EN/IEC 60947-5-5|CSA C22.2 No 14|EN/IEC 60947-5-4|UL 508|JIS C8201-5-1|EN/IEC 60947-5-1|JIS C8201-1

Product certifications

LROS (Lloyds register of shipping)|CSA|UL listed|GL|BV|DNV

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2308035EN

Circularity profile

ENVEOLI2308035EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

42

Package 3 bare product quantity

672

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

black mushroom Ø 40 mm, unmarked

Cap/operator or lens colour

black

Cad overall width

40 mm

Cad overall height

40 mm

Cad overall depth

52 mm

Electrical composition code

C1 for <9 contacts using single blocks in front mounting|C2 for <9 contacts using single and double blocks in front mounting|C11 for <3 contacts using single blocks in front mounting|C15 for <1 contacts using single blocks in front mounting

Main group

mushroom head

Group of product

mush. spring return non illum.

Cap/operator or lens colour

black

Gcr bridge

ZB4BCCUST01

Compatibility code

ZB4

Protective treatment

TH

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.800 cm

Package 1 width

4.400 cm

Package 1 length

5.400 cm

Package 1 weight

76.000 g

Unit type of package 2

S02

Number of units in package 2

42

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.540 kg

Unit type of package 3

P06

Number of units in package 3

672

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

66.852 kg
