Harmony XB5 Head for non illuminated push-button white flush, 22mm, spring return, white marked UP

Home ProductsIndustrialHarmonyHead for non illuminated push-button

Harmony XB5 Head for non illuminated push-button white flush, 22mm, spring return, white marked UP

Item Number: ZB5AA343

This white flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

1

Net weight

0.018 kg

Mechanical durability

10000000 cycles

Marking

UP

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

  • IP66 conforming to IEC 60529
  • IP67
  • IP69
  • IP69K

Ik degree of protection

IK03 conforming to IEC 50102

Standards

  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-1
  • JIS C8201-5-1
  • IEC 60947-5-4
  • IEC 60947-5-1
  • JIS C8201-1

Product certifications

  • BV
  • CSA
  • DNV
  • LROS (Lloyds register of shipping)
  • UL listed

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2303008EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

50

Legacy weee scope

Out

Weee label

No

Average percentage of recycled plastic content

0 %

At least in Europe

Device short name

ZB5

Bezel material

dark grey plastic

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

white flush, UP (black)

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

28 mm

Main group

push-button

Group of product

flush push with marking

Station name

  • XALD 1...5 cut-outs
  • XALK 2...5 cut-outs

Cap/operator or lens colour

white

Colour of marking

black

Electrical composition code

  • C1 for <9 contacts using single blocks in front mounting
  • C2 for <9 contacts using single and double blocks in front mounting
  • C11 for <3 contacts using single blocks in front mounting
  • C15 for <1 contacts using single blocks in front mounting
  • SF1 for <3 contacts using single blocks in front mounting
  • SR1 for <3 contacts using single blocks in rear mounting

Customizable

no

Customizable

0

Compatibility code

ZB5

Protective treatment

TH

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

  • NEMA 13
  • NEMA 4X

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Shock resistance

  • 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
  • 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.600 cm

Package 1 width

4.600 cm

Package 1 length

5.200 cm

Package 1 weight

16.000 g

Unit type of package 2

S01

Number of units in package 2

50

Package 2 height

15.000 cm

Package 2 width

15.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.075 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.13487309761150257

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0063542220714788555

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0047978866516138205

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.03289195102300111

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.17891715735759633

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI2303008EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

ZB5AA343_CAD
ZIP

ZB5AA343_CAD

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 162 KB
Harmony XALD and XALK plastic control stations catalog English
ZIP

Harmony XALD and XALK plastic control stations catalog English

VERSION

5.0

DATE

10 Oct 2025

REVISION

5.0

DOWNLOAD (ZIP) 12 MB
Discover the Harmony XB5 plastic Control and signaling units catalog
ZIP

Discover the Harmony XB5 plastic Control and signaling units catalog

VERSION

18.0

DATE

10 Apr 2025

REVISION

18.0

DOWNLOAD (ZIP) 33.1 MB
XB4-XB5 - Mounting - Instruction Sheet
ZIP

XB4-XB5 - Mounting - Instruction Sheet

VERSION

1.0

DATE

09 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 441.7 KB
XB4.. / XB5... Mounting, Instruction Sheet
ZIP

XB4.. / XB5... Mounting, Instruction Sheet

VERSION

2.0

DATE

06 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 453.4 KB
ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)
ZIP

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

VERSION

1.0

DATE

22 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions
ZIP

XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions

VERSION

1.0

DATE

17 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 245.8 KB
XB5 Plastic Non Illuminated Push Button - Product Environmental Profile
ZIP

XB5 Plastic Non Illuminated Push Button - Product Environmental Profile

VERSION

2.0

DATE

17 Sep 2025

REVISION

2.0

DOWNLOAD (ZIP) 1.2 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

19 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 334 KB

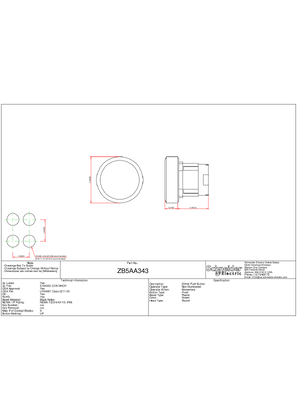

ZB5AA343_2DSalesDrawing_PDF
