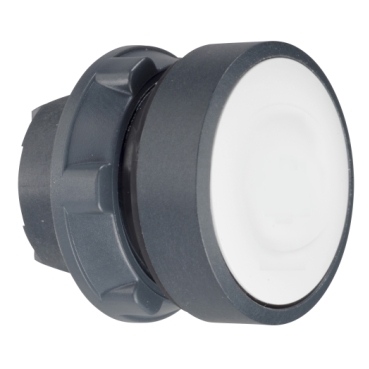

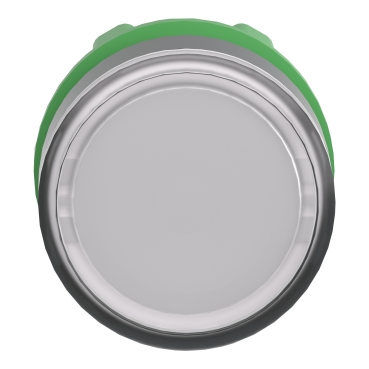

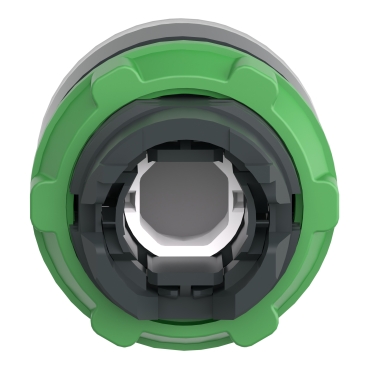

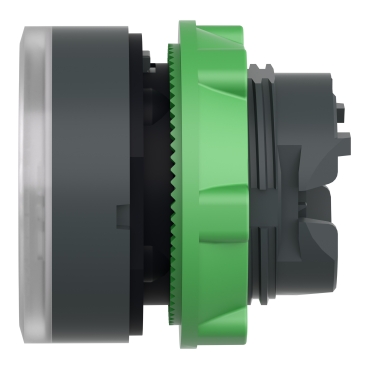

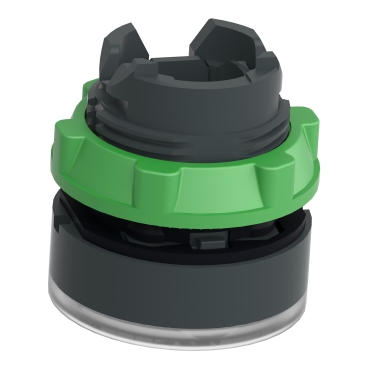

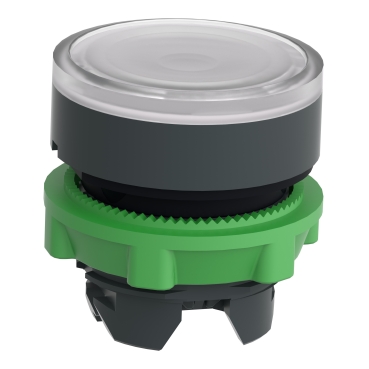

Harmony XB5, Head for illuminated push button, plastic, white flush, 22mm, universal LED, spring return, plain lens

Home ProductsIndustrialHarmonyHead for illuminated push button

Harmony XB5, Head for illuminated push button, plastic, white flush, 22mm, universal LED, spring return, plain lens

Item Number: ZB5AW313

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5

Product or component type

head for illuminated push-button

Product compatibility

universal LED

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Sale per indivisible quantity

1

Net weight

0.017 kg

Mechanical durability

10000000 cycles

Marking

unmarked

Device presentation

basic sub-assemblies

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Ik degree of protection

IK05 conforming to EN 50102

Standards

UL 508|GB 14048.5|EN/IEC 60947-5-4|EN/IEC 60947-5-1|CSA C22.2 No 14|JIS C8201-5-1|EN/IEC 60947-1|JIS C8201-1

Product certifications

DNV|UL listed|LROS (Lloyds register of shipping)|CSA|BV|GL

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2404014EN

Circularity profile

ENVEOLI2404014EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Important message

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Package 3 bare product quantity

300

Package 4 bare product quantity

2400

Device short name

ZB5

Bezel material

dark grey plastic

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

white flush, unmarked

Operator additional information

with plain lens

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

30 mm

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Main group

illum push-button

Group of product

flush push integral LED

Station name

XALD 1...5 cut-outs|XALK 2...5 cut-outs

Cap/operator or lens colour

white

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED|M2 for <6 contacts using single and double blocks in front mounting with integral LED|M6 for <2 contacts using single blocks in front mounting with integral LED and transformer|M10 for <2 contacts using single blocks in front mounting with integral LED|MF1 for <2 contacts using single blocks in front mounting with integral LED|MR1 for <2 contacts using single blocks in rear mounting with integral LED

Customizable

no

Customizable

1

Gcr bridge

ZB5AWCUST05

Compatibility code

ZB5

Protective treatment

TC

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.400 cm

Package 1 width

3.400 cm

Package 1 length

5.100 cm

Package 1 weight

17.000 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

4.400 cm

Package 2 width

3.400 cm

Package 2 length

26.500 cm

Package 2 weight

85.000 g

Unit type of package 3

S03

Number of units in package 3

300

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

5.656 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
