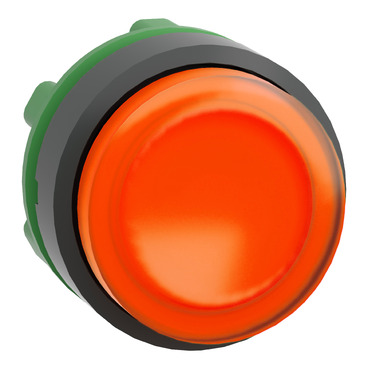

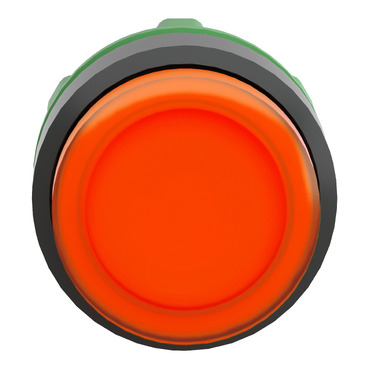

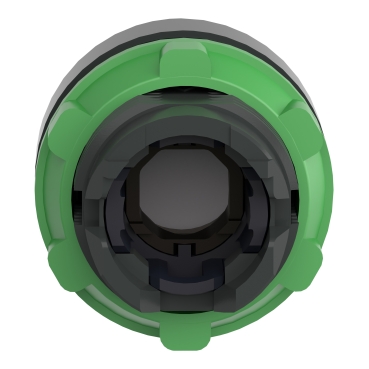

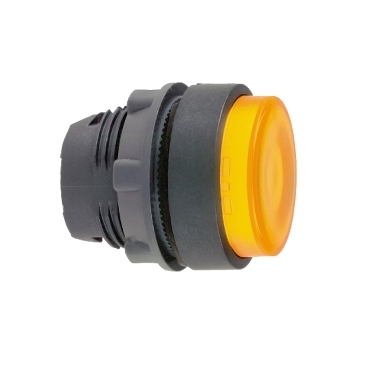

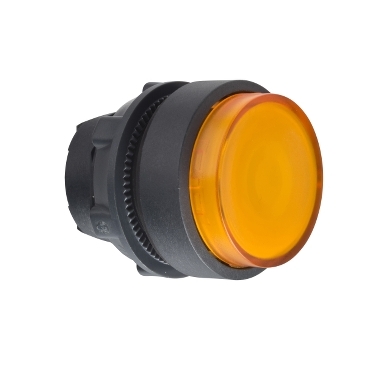

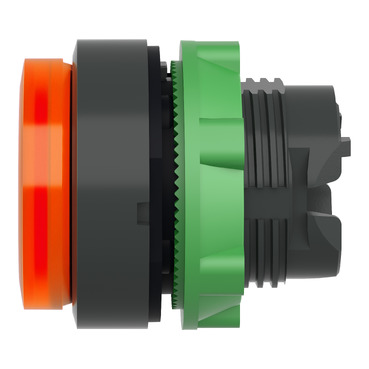

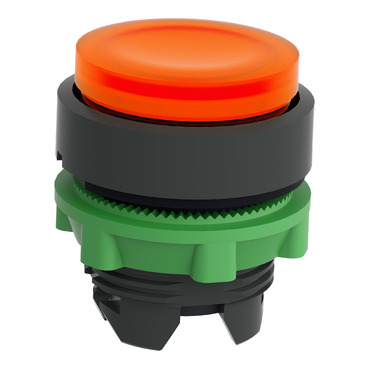

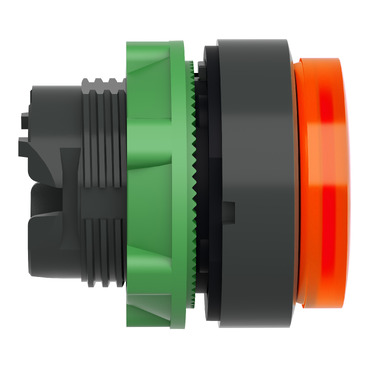

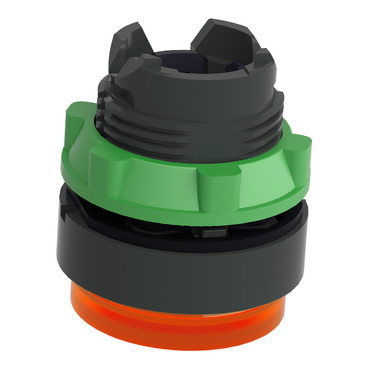

Harmony XB5 Head for illuminated push-button orange projecting, 22mm, universal LED, spring return, unmarked

Item Number: ZB5AW153

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110909883	-
5	PAC	53389110909888	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	head for illuminated push-button
Product compatibility	universal LED
Warranty	18 months

Physical

Sale per indivisible quantity	1
Net weight	0.018 kg
Mechanical durability	10000000 cycles
Marking	unmarked
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP69 IP69K
Ik degree of protection	IK05 conforming to IEC 62262
Standards	UL 508 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-1 GB 14048.5 JIS C8201-1
Product certifications	CSA DNV BV LROS (Lloyds register of shipping) UL listed
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2404014_V1
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Legacy weee scope	Out
Average percentage of recycled plastic content	16 %
Package 2 bare product quantity	100
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	ZB5
Bezel material	dark grey plastic
Mounting diameter	22 mm
Head type	standard
Shape of signaling unit head	round
Type of operator	spring return
Operator profile	orange projecting, unmarked
Operator additional information	with plain lens

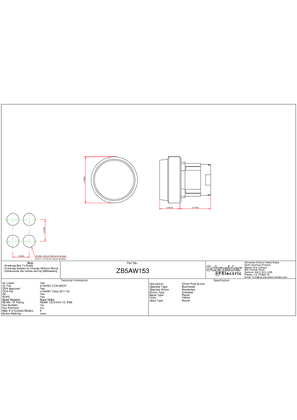

Cad overall width	29 mm
Cad overall height	29 mm
Cad overall depth	33 mm
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Main group	illum push-button
Group of product	proj push integral LED
Station name	XALD 1...5 cut-outs XALK 2...5 cut-outs
Cap/operator or lens colour	orange
Electrical composition code	M1 for <6 contacts using single blocks in front mounting with integral LED M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED MR1 for <2 contacts using single blocks in rear mounting with integral LED
Customizable	no
Customizable	1
Gcr bridge	ZB5AWCUST01
Compatibility code	ZB5
Protective treatment	TC
Overvoltage category	class II conforming to IEC 60536
Nema degree of protection	UL type 4X/13
Nema degree of protection	NEMA 13 NEMA 4X
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.200 cm
Package 1 width	3.600 cm
Package 1 length	4.400 cm
Package 1 weight	18.000 g
Unit type of package 2	S02
Number of units in package 2	100
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	2.103 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.11850000000000001
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.004900303030303031
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.004712121212121212
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0392969696969697
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.16740939393939394
Average percentage of recycled plastic content	16 %
Average percentage of recycled metal content	29 %
Average percentage of recycled metal content	29 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI2404014EN
Take-back	No
Warranty (in months)	18
