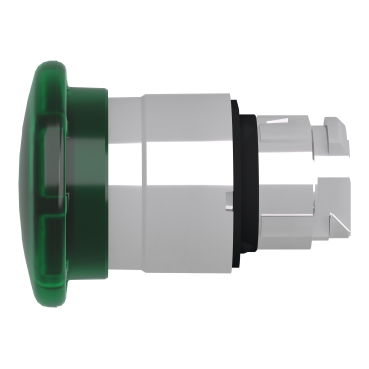

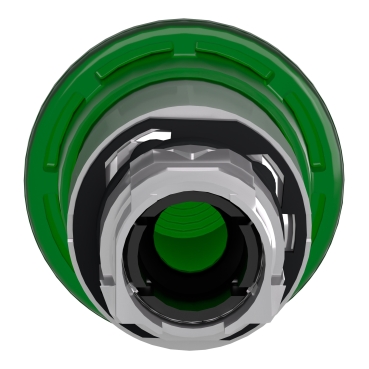

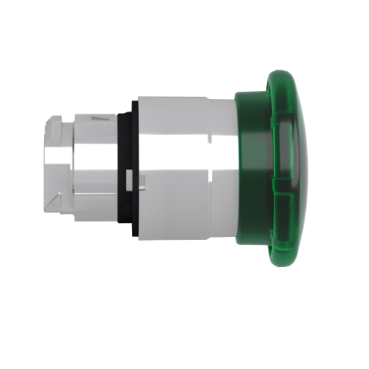

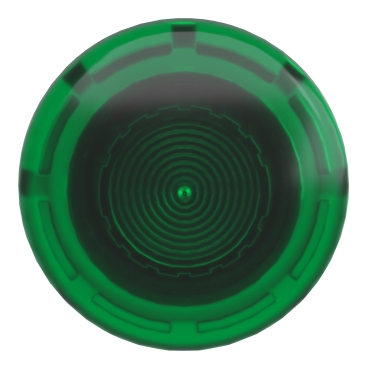

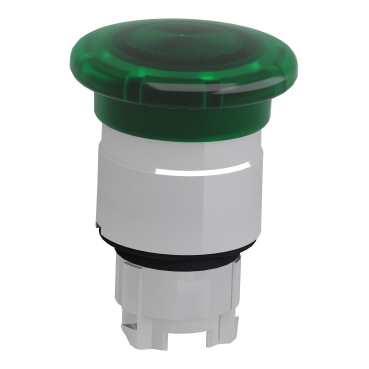

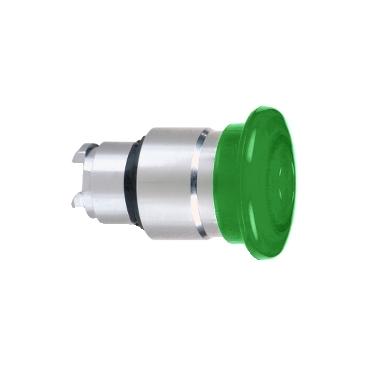

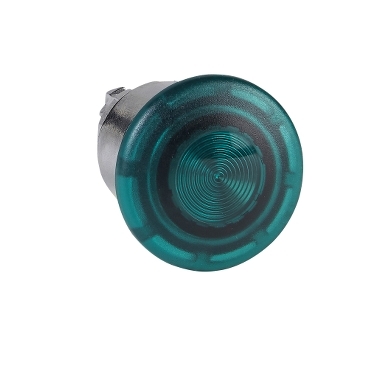

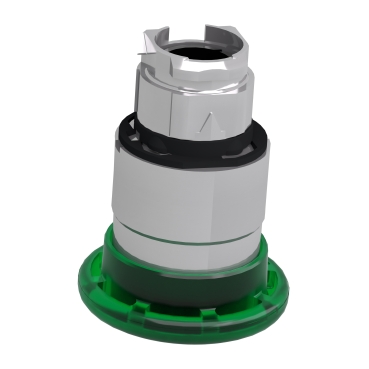

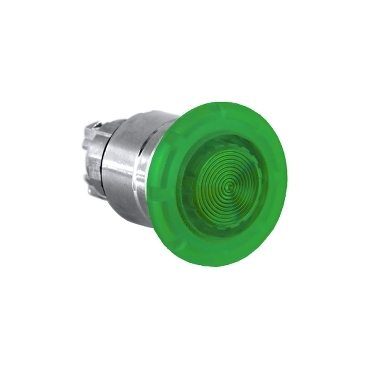

Harmony XB4 Head for illuminated push-button metal, green mushroom 40mm, 22mm, universal LED, spring return

Item Number: ZB4BW433

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110666489	-

Specifications

Design

Range of product	Harmony XB4
Product or component type	head for illuminated push-button
Product compatibility	universal LED
Warranty	18 months

Physical

Sale per indivisible quantity	1
Net weight	0.051 kg
Mechanical durability	10000000 cycles
Marking	unmarked
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
Ik degree of protection	IK05 conforming to IEC 62262
Standards	IEC 60947-1 JIS C8201-5-1 IEC 60947-5-5 IEC 60947-5-1 CSA C22.2 No 14 UL 508 IEC 60947-5-4 JIS C8201-1
Product certifications	BV CSA DNV LROS (Lloyds register of shipping) UL listed
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1808008EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Package 2 bare product quantity	80
Average percentage of recycled plastic content	37 %
Package 1 bare product quantity	1
Legacy weee scope	Out
Weee label	No
Weee applicability	Component
	At least in Europe
Warranty duration(in months) bmecat	18
Device short name	ZB4
Bezel material	chromium plated metal
Head type	standard
Mounting diameter	22.5 mm
Shape of signaling unit head	round
Type of operator	spring return
Operator profile	green mushroom Ø 40 mm, unmarked
Cap/operator or lens colour	green

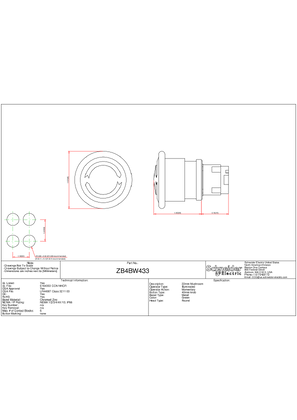

Cad overall width	40 mm
Cad overall height	40 mm
Cad overall depth	53 mm
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Electrical composition code	M1 for <6 contacts using single blocks in front mounting with integral LED M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED
Main group	mushroom head
Group of product	mushroom spring return illuminated
Cap/operator or lens colour	green
Customizable	no
Customizable	0
Compatibility code	ZB4
Protective treatment	TH
Overvoltage category	class I conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Nema degree of protection	UL type 4X/13
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.300 cm
Package 1 width	4.200 cm
Package 1 length	8.500 cm
Package 1 weight	61.000 g
Unit type of package 2	S03
Number of units in package 2	80
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.524 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.4741394737
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0100775439
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0092621053
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.1049570175
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.5984361404
Average percentage of recycled plastic content	37 %
Average percentage of recycled metal content	21 %
Average percentage of recycled metal content	21 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI1808008EN
Take-back	No
Warranty (in months)	18
