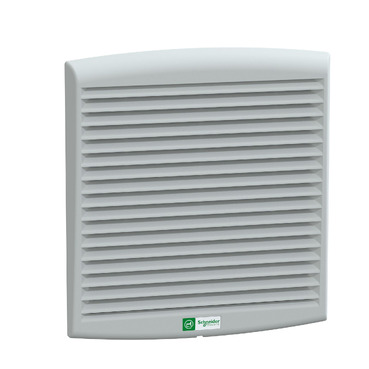

ClimaSys, ClimaSys forced vent, IP54, 300m3/h, 230V, with outlet grille and filter G2

Home ProductsIndustrialClimaSysClimaSys forced vent

ClimaSys, ClimaSys forced vent, IP54, 300m3/h, 230V, with outlet grille and filter G2

Item Number: NSYCVF300M230PF

Where To Buy

Datasheet

PDF datasheet

Download

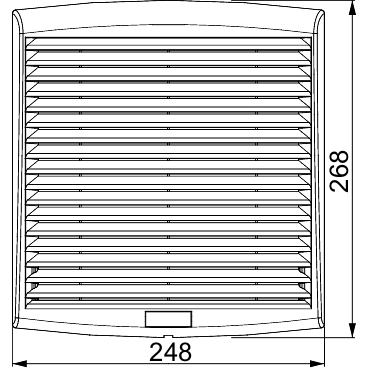

Product Dimensions

Width icon

Widthexternal: 248 mm

Height icon

Heightexternal: 268 mm

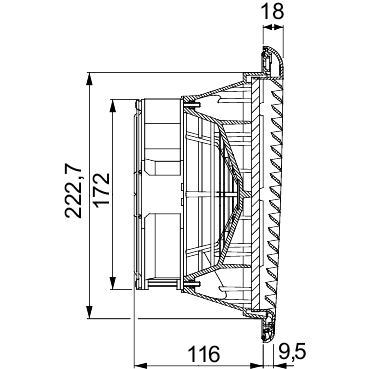

Depth icon

Depthexternal : 116 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

fan

Colour

outlet grille: grey (RAL 7035)

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

0.16...0.16 A 60 Hz|0.17...0.17 A 50 Hz

Height

external: 268 mm

Width

external: 248 mm

Depth

external : 116 mm

Net weight

1.3 kg

Ambient air temperature for operation

-10...70 °C

Ambient air temperature for storage

-40...70 °C

Connections - terminals

Faston connector

Ip degree of protection

IP54

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110717EN

Circularity profile

ENVEOLI1107017EN

Material

Material

outlet grille: injected thermoplastic (ASA PC)

Device composition

1 axial motor|2 protective grille: on the front and rear surfaces|1 filter: front of axial motor|1 outlet grille: front|1 cut-out template|1 power cord

Others

Package 1 bare product quantity

1

Lead time

Usually Ships within 4 Weeks

Product name

ClimaSys CV

Type of ventilation filter

standard

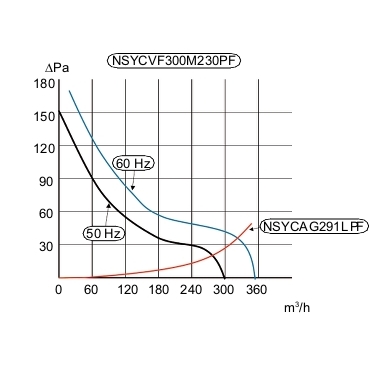

Air flow

free flow rate with standard filter: 300 m3/h at 50 Hz|free flow rate with standard filter: 350 m3/h at 60 Hz

[us] rated supply voltage

145...253 V

Input voltage

230 V 50/60 Hz

Power range

36 W 50 Hz|37 W 60 Hz

Noise level

55...56 dB

Bearing type

ball

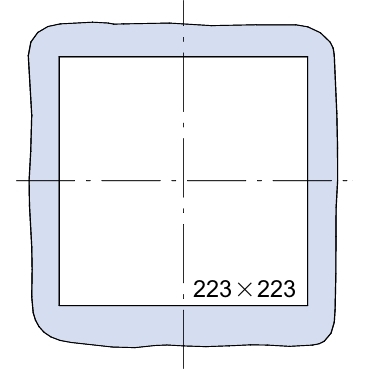

Cut-out dimensions

223 x 223 mm

Maximum pressure

158 Pa flow rate 0 m³/h

Condition of use

surrounding environment must be relatively clean|filter must be cleaned and replaced regularly|outside temperature must be 5 °C lower than inside temperature|overfrequent filter replacement should be avoided|flow rates depends on the work point, see ProClima software

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

18.5 cm

Package 1 width

25.5 cm

Package 1 length

27.0 cm

Package 1 weight

1.642 kg

Unit type of package 2

CAR

Number of units in package 2

4

Package 2 height

28.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

7.476 kg

Unit type of package 3

P12

Number of units in package 3

64

Package 3 height

95.0 cm

Package 3 width

80.0 cm

Package 3 length

120.0 cm

Package 3 weight

135.0 kg
