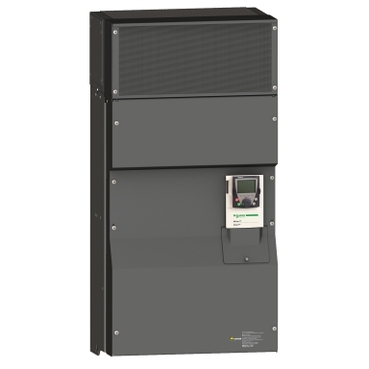

Altivar 71, Variable speed Drive, 400kW, 600HP, 480V, EMC filter graphic Terminal

Home ProductsIndustrialAltivarVariable speed Drive

Altivar 71, Variable speed Drive, 400kW, 600HP, 480V, EMC filter graphic Terminal

Item Number: ATV71HC40N4

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width890 mm

Height icon

Height1390 mm

Depth icon

Depth377 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar 71

Product or component type

variable speed drive

Product destination

synchronous motors|asynchronous motors

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Local signalling

1 LED (red) for drive voltage

Type of cable

with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC|with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection|internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection

Protection type

against exceeding limit speed: drive|short-circuit between motor phases: drive|thermal protection: drive|motor phase break: motor|power removal: motor|thermal protection: motor|against input phase loss: drive|break on the control circuit: drive|input phase breaks: drive|line supply overvoltage: drive|line supply undervoltage: drive|overcurrent between output phases and earth: drive|overheating protection: drive|overvoltages on the DC bus: drive

Insulation resistance

> 1 mOhm 500 V DC for 1 minute to earth

Communication port protocol

Modbus|CANopen

Connector type

1 RJ45 (on front face) for Modbus|1 RJ45 (on terminal) for Modbus|male SUB-D 9 on RJ45 for CANopen

Marking

CE

Height

1390 mm

Depth

377 mm

Width

890 mm

Net weight

330 kg

Standards

UL Type 1|EN 61800-3 environments 1 category C3|EN/IEC 61800-5-1|IEC 60721-3-3 class 3C2|EN 61800-3 environments 2 category C3|EN 55011 class A group 2|EN/IEC 61800-3

Product certifications

UL|CSA|NOM 117|C-Tick|GOST

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3|5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...50 °C (without derating)

Ambient air temperature for storage

-25...70 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP091205EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Commercial status history

SESA301466 | Fri Feb 16 07:56:00 EST 2024 | From Import Local | From 16 to 19

Package 1 bare product quantity

1

Product specific application

complex, high-power machines

Component name

ATV71

Motor power kw

355 kW, 3 phases at 380...480 V|400 kW, 3 phases at 380...480 V

Motor power hp

600 hp, 3 phases at 380...480 V

Maximum motor cable length

100 m shielded cable|200 m unshielded cable

[us] rated supply voltage

380...480 V - 15...10 %

Network number of phases

3 phases

Line current

512 A for 480 V 3 phases 355 kW|568 A for 480 V 3 phases 400 kW / 600 hp|637 A for 380 V 3 phases 355 kW|709 A for 380 V 3 phases 400 kW / 600 hp

Emc filter

integrated

Assembly style

with heat sink

Variant

reinforced version

Apparent power

419.3 kVA at 380 V 3 phases 355 kW|466.6 kVA at 380 V 3 phases 400 kW / 600 hp

Prospective line isc

50 kA for 3 phases

Nominal output current

671 A at 2.5 kHz 380 V 3 phases 355 kW|671 A at 2.5 kHz 460 V 3 phases 355 kW|759 A at 2.5 kHz 380 V 3 phases 400 kW / 600 hp|759 A at 2.5 kHz 460 V 3 phases 400 kW / 600 hp

Maximum transient current

1138 A for 60 s 3 phases 400 kW / 600 hp|1252 A for 2 s 3 phases 400 kW / 600 hp|1006 A for 60 s 3 phases 355 kW|1107 A for 2 s 3 phases 355 kW

Output frequency

0.1...500 Hz

Nominal switching frequency

2.5 kHz

Switching frequency

2.5...8 kHz adjustable|2.5...8 kHz with derating factor

Asynchronous motor control profile

ENA (Energy adaptation) system for unbalanced loads|voltage/frequency ratio (2 or 5 points)|flux vector control (FVC) with sensor (current vector)|sensorless flux vector control (SFVC) (voltage or current vector)

Type of polarization

no impedance for Modbus

Supply voltage limits

323...528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Speed range

1...100 for asynchronous motor in open-loop mode, without speed feedback|1...1000 for asynchronous motor in closed-loop mode with encoder feedback|1...50 for synchronous motor in open-loop mode, without speed feedback

Speed accuracy

+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn|+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn

Torque accuracy

+/- 15 % in open-loop mode, without speed feedback|+/- 5 % in closed-loop mode with encoder feedback

Transient overtorque

170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes|220 % of nominal motor torque +/- 10 % for 2 s

Braking torque

<= 150 % with braking or hoist resistor|30 % without braking resistor

Synchronous motor control profile

vector control without speed feedback

Regulation loop

adjustable PI regulator

Motor slip compensation

not available in voltage/frequency ratio (2 or 5 points)|suppressable|automatic whatever the load|adjustable

Output voltage

<= power supply voltage

Insulation

electrical between power and control

Electrical connection

terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|terminal, clamping capacity: 8 x 185 mm² (PC/-, PA/+)|terminal, clamping capacity: 2 x 2 x 185 mm² (R/L1.1, S/L2.1, T/L3.1, R/L1.2, S/L2.2, T/L3.2)|terminal, clamping capacity: 4 x 185 mm² (U/T1, V/T2, W/T3)

Tightening torque

0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|41 N.m, 360 lb.in (PC/-, PA/+)|41 N.m, 360 lb.in (R/L1.1, S/L2.1, T/L3.1, R/L1.2, S/L2.2, T/L3.2)|41 N.m, 360 lb.in (U/T1, V/T2, W/T3)

Analogue input number

2

Analogue input type

AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign|AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits|AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

Sampling duration

2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)|2 ms +/- 0.5 ms (Al2) - analog input(s)|2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)|2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)

Response time

<= 100 ms in STO (Safe Torque Off)|AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)|R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)|R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)

Accuracy

+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C|+/- 0.6 % (AI2) for a temperature variation 60 °C|+/- 1 % (AO1) for a temperature variation 60 °C

Linearity error

+/- 0.15 % of maximum value (AI1-/Al1+, AI2)|+/- 0.2 % (AO1)

Analogue output number

1

Analogue output type

AO1 software-configurable logic output 10 V 20-20 mA|AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits|AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits

Discrete output number

2

Discrete output type

configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles|configurable relay logic: (R2A, R2B) NO - 100000 cycles

Minimum switching current

3 mA at 24 V DC for configurable relay logic

Maximum switching current

R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 |R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 |R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 |R1, R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number

7

Discrete input type

LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable PTC probe 0-6 , impedance: 1500 Ohm|PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d

Discrete input logic

negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)|negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

Acceleration and deceleration ramps

linear adjustable separately from 0.01 to 9000 s|automatic adaptation of ramp if braking capacity exceeded, by using resistor|S, U or customized

Braking to standstill

by DC injection

Frequency resolution

analog input: 0.024/50 Hz|display unit: 0.1 Hz

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Transmission rate

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal|9600 bps, 19200 bps for Modbus on front face|20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

Data format

8 bits, 1 stop, even parity for Modbus on front face|8 bits, odd even or no configurable parity for Modbus on terminal

Number of addresses

1...127 for CANopen|1...247 for Modbus

Method of access

slave CANopen

Operating position

vertical +/- 10 degree

Functionality

full

Specific application

other applications

Option card

communication card for CC-Link|communication card for Modbus TCP|communication card for Modbus/Uni-Telway|overhead crane card|communication card for Profibus DP|communication card for Profibus DP V1|controller inside programmable card|communication card for DeviceNet|communication card for EtherNet/IP|communication card for Fipio|I/O extension card|communication card for Interbus-S|interface card for encoder|communication card for Modbus Plus

Noise level

77 dB conforming to 86/188/EEC

Dielectric strength

3535 V DC between earth and power terminals|5092 V DC between control and power terminals

Electromagnetic compatibility

1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5|conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6|electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4|electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2|radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3|voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Pollution degree

2 conforming to EN/IEC 61800-5-1|3 conforming to UL 840

Vibration resistance

0.6 gn (f= 10-200 Hz) conforming to EN/IEC 60068-2-6|1.5 mm peak to peak (f= 3-10 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

4 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating|1000...3000 m with current derating 1 % per 100 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

53.0 cm

Package 1 width

92.0 cm

Package 1 length

145.0 cm

Package 1 weight

336.0 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Operating Manuals

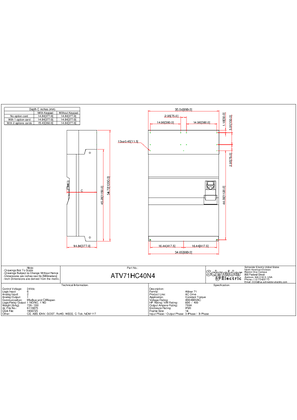

  • Technical Drawing

  • Declaration of Conformity

  • Certificates (MSDS)

  • eTechPub

  • Software - Data Library

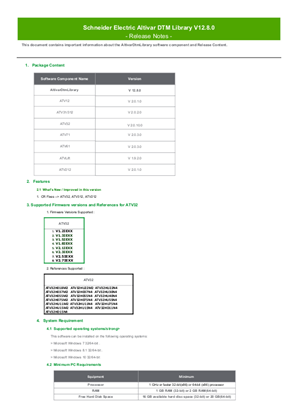

  • Software - Release

ATV71HC40N4_CAD_DOC
ZIP

ATV71HC40N4_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 572.8 KB
Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4
ZIP

Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 522.1 KB
Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4
ZIP

Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 367.8 KB
Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4
ZIP

Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 527.2 KB
Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4
ZIP

Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 569.6 KB
Variable speed drive ATV71HC40N4, ATV61HC50N4
ZIP

Variable speed drive ATV71HC40N4, ATV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 6.2 MB
Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4
ZIP

Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4
ZIP

Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
Variable speed drive ATV71HC40N4, ATV61HC50N4
ZIP

Variable speed drive ATV71HC40N4, ATV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4
ZIP

Variable speed drive ATV71HC31N4, ATV61HC35N4, ATV61HC40N4, ATV71HC40N4,A TV61HC50N4

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Dimensions drawings RSX Size 14b with DC-Choke
ZIP

Dimensions drawings RSX Size 14b with DC-Choke

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

DOWNLOAD (ZIP) 5.4 MB

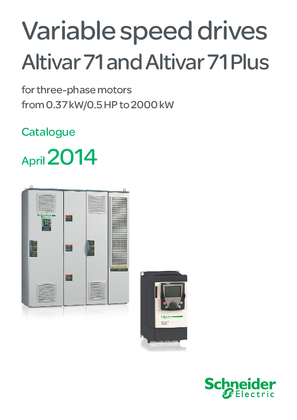

Catalog: Altivar 71/71 Plus variable speed drives - English version 2014/04 (web pdf format)
ZIP

Catalog: Altivar 71/71 Plus variable speed drives - English version 2014/04 (web pdf format)

VERSION

1.0

DATE

24 Aug 2020

REVISION

1.0

DOWNLOAD (ZIP) 10.7 MB

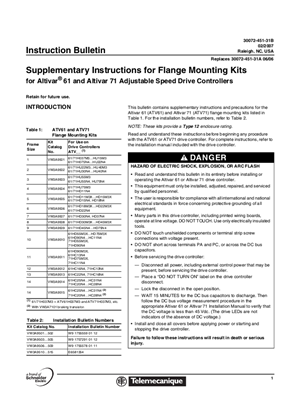

VW3A950 Flange Mounting Kits for ATV61 and ATV71 Drive Controllers, Supplementary Instructions
ZIP

VW3A950 Flange Mounting Kits for ATV61 and ATV71 Drive Controllers, Supplementary Instructions

VERSION

1.0

DATE

24 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 263.4 KB

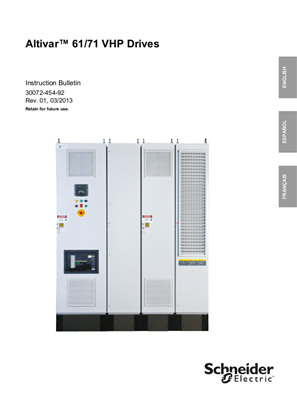

Altivar 61 and 71 VHP Drives Installation Instructions
ZIP

Altivar 61 and 71 VHP Drives Installation Instructions

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 11.7 MB

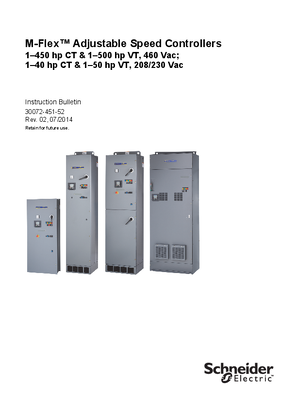

M-Flex Adjustable Speed Drive Controllers Installation Instructions
ZIP

M-Flex Adjustable Speed Drive Controllers Installation Instructions

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 7.7 MB

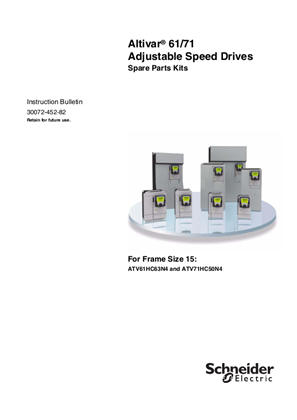

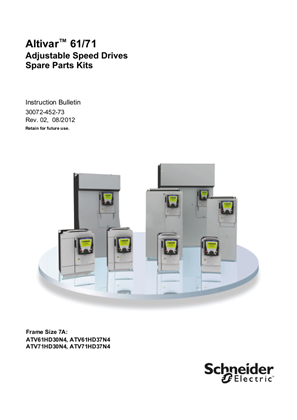

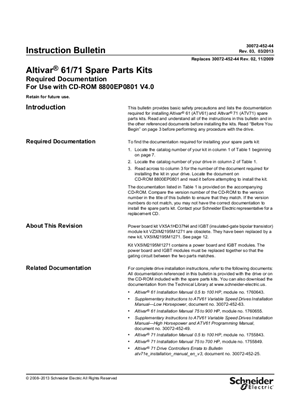

Altivar 61 and 71 Spare Parts Kits Required Documentation
ZIP

Altivar 61 and 71 Spare Parts Kits Required Documentation

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 618.4 KB

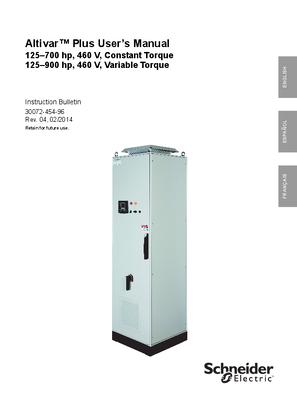

Altivar Plus Users Manual
ZIP

Altivar Plus Users Manual

VERSION

3.0

DATE

04 Mar 2024

REVISION

3.0

DOWNLOAD (ZIP) 13.6 MB

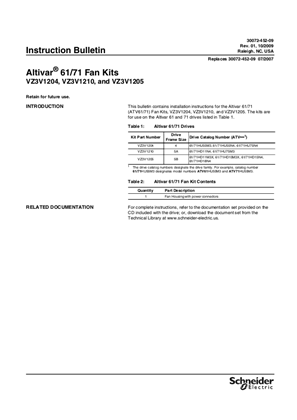

Altivar 61 and 71 Fan Kits VZ3V1204, VZ3V1210, and VZ3V1205 Installation Instructions
ZIP

Altivar 61 and 71 Fan Kits VZ3V1204, VZ3V1210, and VZ3V1205 Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 286.6 KB
Altivar 71W Simplified Manual, 0.75-75 kW (1-100 hp), 380-480 V, IP54 Instruction Bulletin
ZIP

Altivar 71W Simplified Manual, 0.75-75 kW (1-100 hp), 380-480 V, IP54 Instruction Bulletin

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2 MB
ATV61 and ATV71 Plastic Kits and Power Terminal Kit for Frame Sizes 2 to 5 - Installation Instructions
ZIP

ATV61 and ATV71 Plastic Kits and Power Terminal Kit for Frame Sizes 2 to 5 - Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 5 MB
Altivar 31, 61, and 71 Drives Simple Loader VW3A8120 Instruction Sheet
ZIP

Altivar 31, 61, and 71 Drives Simple Loader VW3A8120 Instruction Sheet

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 154.5 KB
Addendum to Altivar 71 Profibus DP VW3A3307
ZIP

Addendum to Altivar 71 Profibus DP VW3A3307

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 52.2 KB

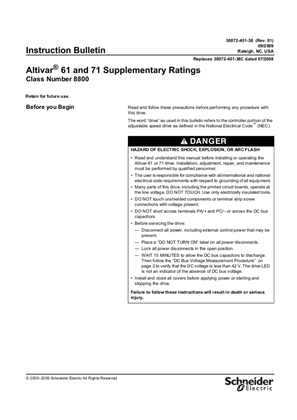

Altivar 61 and 71 Supplementary Ratings Instructions
ZIP

Altivar 61 and 71 Supplementary Ratings Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 158.3 KB
Altivar 71 Modbus TCP/IP Ethernet Card VW3A3310 Installation Instructions
ZIP

Altivar 71 Modbus TCP/IP Ethernet Card VW3A3310 Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB

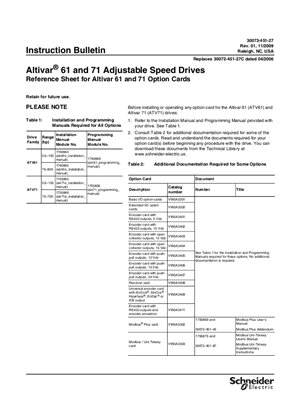

Reference Sheet for ATV61 and ATV71 Option Cards
ZIP

Reference Sheet for ATV61 and ATV71 Option Cards

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 63.6 KB

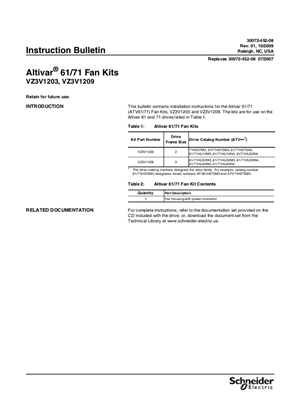

Altivar 61 and 71 Fan Kits VZ3V1203, VZ3V1209 Installation Instructions
ZIP

Altivar 61 and 71 Fan Kits VZ3V1203, VZ3V1209 Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 193.5 KB

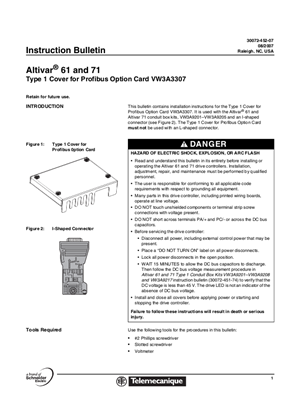

Altivar 61 and 71 Type 1 Cover for Profibus Option Card VW3A3307 Instructions
ZIP

Altivar 61 and 71 Type 1 Cover for Profibus Option Card VW3A3307 Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 640.5 KB

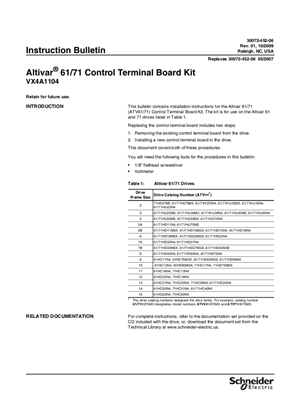

Altivar 61 and 71 Control Terminal Board Kit VX4A1104 Instructions
ZIP

Altivar 61 and 71 Control Terminal Board Kit VX4A1104 Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 165.6 KB

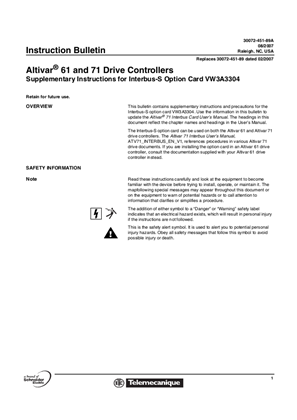

Altivar 61 and 71 Drive Controllers Supplementary Instructions for Interbus-S Option Card VW3A3304
ZIP

Altivar 61 and 71 Drive Controllers Supplementary Instructions for Interbus-S Option Card VW3A3304

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 72.7 KB

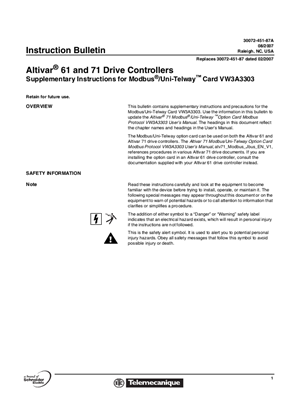

Altivar 61 and 71 Drive Controllers: Supplementary Instructions for Modbus/Uni-Telway Card VW3A3303 Instructions
ZIP

Altivar 61 and 71 Drive Controllers: Supplementary Instructions for Modbus/Uni-Telway Card VW3A3303 Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 68.9 KB

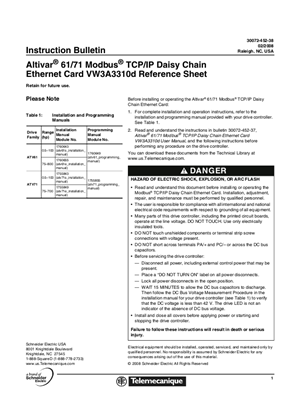

Altivar 61 and 71 Modbus TCP/IP Daisy Chain Ethernet Card VW3A3310d Reference Sheet
ZIP

Altivar 61 and 71 Modbus TCP/IP Daisy Chain Ethernet Card VW3A3310d Reference Sheet

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 41 KB

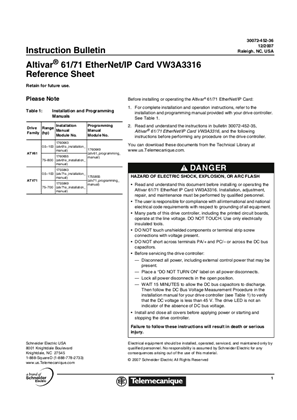

Altivar 61 and 71 EtherNet/IP Card VW3A3316 Instructions
ZIP

Altivar 61 and 71 EtherNet/IP Card VW3A3316 Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 40 KB

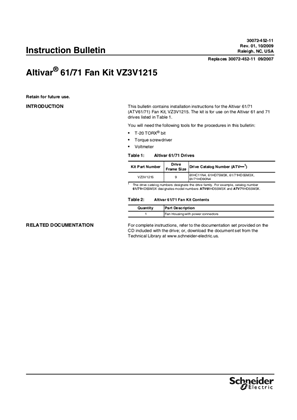

Altivar 61 and 71 Fan Kit VZ3V1215 Installation Instructions
ZIP

Altivar 61 and 71 Fan Kit VZ3V1215 Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 128.3 KB

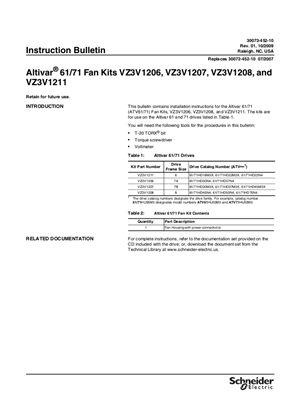

Altivar 61 and 71 Fan Kits VZ3V1206, VZ3V1207, VZ3V1208, and VZ3V1211 Installation Instructions
ZIP

Altivar 61 and 71 Fan Kits VZ3V1206, VZ3V1207, VZ3V1208, and VZ3V1211 Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 344.5 KB
Altivar 71 Variable Speed Drives for Synchronous and Asynchronous Motors Programming Manual
ZIP

Altivar 71 Variable Speed Drives for Synchronous and Asynchronous Motors Programming Manual

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.2 MB
Altivar 61 and 71 Spare Parts Kits for Frame Size 11 - Instructions
ZIP

Altivar 61 and 71 Spare Parts Kits for Frame Size 11 - Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.6 MB
Altivar 61 and 71 Spare Parts Kits for Frame Size 10 Drives - Instructions
ZIP

Altivar 61 and 71 Spare Parts Kits for Frame Size 10 Drives - Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.3 MB

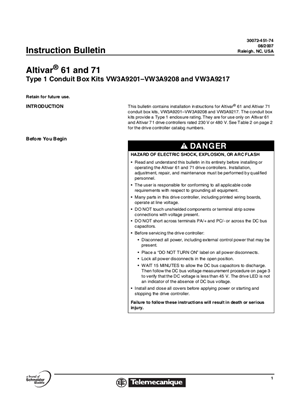

Altivar 61 and 71 Type 1 Conduit Box Kits VW3A9201 VW3A9208 and VW3A9217 Installation Instructions
ZIP

Altivar 61 and 71 Type 1 Conduit Box Kits VW3A9201 VW3A9208 and VW3A9217 Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 313.3 KB
Altivar 61 and 71 Spare Parts Kits for Frame Size 9 Drives - Installation
ZIP

Altivar 61 and 71 Spare Parts Kits for Frame Size 9 Drives - Installation

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 7.3 MB
Altivar 61 and 71 Field Drive for Oil and Gas Pumping and Irrigation Installation Instructions
ZIP

Altivar 61 and 71 Field Drive for Oil and Gas Pumping and Irrigation Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 6.4 MB
Altivar 61 and 71 Spare Parts Kits for Frame Size 6 Drives - Instructions
ZIP

Altivar 61 and 71 Spare Parts Kits for Frame Size 6 Drives - Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 5.4 MB
Altivar 61 and 71 Spare Parts Kits for Frame Size 13 Drives - Instructions
ZIP

Altivar 61 and 71 Spare Parts Kits for Frame Size 13 Drives - Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.6 MB
Altivar 61/71 Adjustable Speed Drive Controllers Installation Instructions
ZIP

Altivar 61/71 Adjustable Speed Drive Controllers Installation Instructions

VERSION

1.1

DATE

21 Feb 2024

REVISION

1.1

DOWNLOAD (ZIP) 5.2 MB
ATV71W Conduit Plates Supplementary Instructions
ZIP

ATV71W Conduit Plates Supplementary Instructions

VERSION

1.0

DATE

11 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 88.2 KB
Altivar 61/71 PowerGard Class 8839 Type CPD 18-Pulse Adjustable Speed Drive Controllers Installation Instructions
ZIP

Altivar 61/71 PowerGard Class 8839 Type CPD 18-Pulse Adjustable Speed Drive Controllers Installation Instructions

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 2 MB
ATV930 & ATV61/71 braking units manual
ZIP

ATV930 & ATV61/71 braking units manual

VERSION

4.0

DATE

29 Sep 2023

REVISION

4.0

DOWNLOAD (ZIP) 5.8 MB
ATV61 and ATV71 Spare Parts Kits for Frame Size 15 - Instructions
ZIP

ATV61 and ATV71 Spare Parts Kits for Frame Size 15 - Instructions

VERSION

1.0

DATE

14 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 7.3 MB
Altivar 61 and 71 Profibus DPv1 - Installation Instructions
ZIP

Altivar 61 and 71 Profibus DPv1 - Installation Instructions

VERSION

1.0

DATE

14 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 390.5 KB
Altivar 61 Variable Speed Drive Controllers Low Horsepower Simplified guide
ZIP

Altivar 61 Variable Speed Drive Controllers Low Horsepower Simplified guide

VERSION

1.0

DATE

14 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
ATV61 and ATV71 Spare Parts Kits for Frame Size 14B Drives - Installation
ZIP

ATV61 and ATV71 Spare Parts Kits for Frame Size 14B Drives - Installation

VERSION

1.0

DATE

07 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 7.4 MB
ATV61 and ATV71 Spare Parts Kits for Frame Size 14 - Instructions
ZIP

ATV61 and ATV71 Spare Parts Kits for Frame Size 14 - Instructions

VERSION

1.0

DATE

25 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 7.4 MB
Altivar 61 and 71 Spare Parts Kits for Frame Size 7A Drives
ZIP

Altivar 61 and 71 Spare Parts Kits for Frame Size 7A Drives

VERSION

2.0

DATE

14 Jun 2023

REVISION

2.0

DOWNLOAD (ZIP) 6.7 MB
Altivar 61 and 71 Outdoor Enclosed Drive Instructions
ZIP

Altivar 61 and 71 Outdoor Enclosed Drive Instructions

VERSION

1.0

DATE

25 May 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB
Instruction Sheet: China RoHS - Hazardous Substances Table
ZIP

Instruction Sheet: China RoHS - Hazardous Substances Table

VERSION

1.0

DATE

29 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
ALTIVAR 61, 90 - 800 kW - ALTIVAR 71, 90 - 630 kW, Product End-of-Life Instructions
ZIP

ALTIVAR 61, 90 - 800 kW - ALTIVAR 71, 90 - 630 kW, Product End-of-Life Instructions

VERSION

2.0

DATE

05 Oct 2022

REVISION

2.0

DOWNLOAD (ZIP) 151.8 KB
ATV61 ATV71 to ATV600 ATV900 Migration Manual
ZIP

ATV61 ATV71 to ATV600 ATV900 Migration Manual

VERSION

1.0

DATE

10 Jun 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB
ATV61/71/ LIFT Safety integrated function manual
ZIP

ATV61/71/ LIFT Safety integrated function manual

VERSION

4.0

DATE

04 Mar 2024

REVISION

4.0

DOWNLOAD (ZIP) 829.7 KB

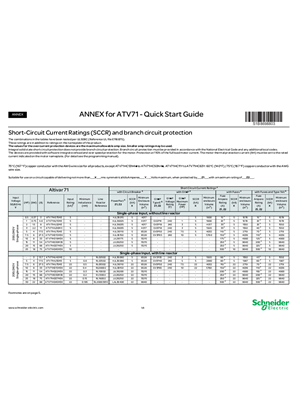

ATV71 Quick Start annex: SCCR and branch circuit protection
ZIP

ATV71 Quick Start annex: SCCR and branch circuit protection

VERSION

3.0

DATE

04 Mar 2024

REVISION

3.0

DOWNLOAD (ZIP) 180.6 KB
ATV71 Programming manual
ZIP

ATV71 Programming manual

VERSION

8.0

DATE

29 Sep 2023

REVISION

8.0

DOWNLOAD (ZIP) 2.3 MB
ATV71HC40N4_2D_Drwng_PDF
ZIP

ATV71HC40N4_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 15.1 KB
ATV71_EU_CERTIFICATE
ZIP

ATV71_EU_CERTIFICATE

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 333.9 KB
ATV61-71_RINA_CERTIFICATE
ZIP

ATV61-71_RINA_CERTIFICATE

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB
ATV61-71_ABS_CERTIFICATE_WUXI
ZIP

ATV61-71_ABS_CERTIFICATE_WUXI

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
ATV61 71 SAFETY COMPONENTS FOR MACHINERY
ZIP

ATV61 71 SAFETY COMPONENTS FOR MACHINERY

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 271.9 KB

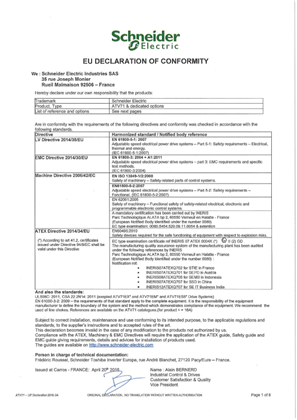

ATV71 EU DECLARATION
ZIP

ATV71 EU DECLARATION

VERSION

1.0

DATE

07 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 2.3 MB
English
ZIP

English

VERSION

1.1

DATE

24 Jan 2022

REVISION

1.1

DOWNLOAD (ZIP) 627.3 KB
ATV71 Communication parameters manuals
ZIP

ATV71 Communication parameters manuals

VERSION

4.0

DATE

09 Aug 2024

REVISION

4.0

DOWNLOAD (ZIP) 2.2 MB
Altivar DTM Library (ATV12,ATV31/312,ATV32,ATV61,ATV71,ATVLIFT,ATV212)
ZIP

Altivar DTM Library (ATV12,ATV31/312,ATV32,ATV61,ATV71,ATVLIFT,ATV212)

VERSION

12.8

DATE

18 Jul 2023

REVISION

12.8

DOWNLOAD (ZIP) 422.7 MB
SoMove (FDT Standalone)
ZIP

SoMove (FDT Standalone)

VERSION

2.23

DATE

20 Mar 2024

REVISION

2.23

DOWNLOAD (ZIP) 361.2 MB

Frequently Asked Questions

hide show

Do the electronic boards of the Altivar 61 and Altivar 71 drives have conformal coating?

Issue:
Do Altivar 61 and Altivar 71 electronic boards have conformal coating?

Product Line:
Altivar ATV61 and ATV71

Environment:
NA

Cause:
Needs to know if you can order the ATV61 ATV71 drive with conformal coating?

Resolution:
The Conformal Coating is standard on:

Part NumberDescription
ATV61HC40N4ATV61 400KW 600HP 480V 3PH EMC
ATV61HC50N4ATV61 500KW 700HP 500V 3PH EMC
ATV61HC63N4ATV61 630KW 900HP 480V 3PH EMC
ATV71HC31N4ATV71 480V 315KW 500HP EMC
ATV71HC40N4ATV71 480V 400KW 600HP EMC
ATV71HC50N4DATV71 480V 500KW 700HP EMC w/o choke
ATV71HC50N4ATV71 480V 500KW 700HP EMC

These products are treated for increased protection for dusty and corrosive environments. With this coating, exposed copper is tinned, circuit boards are conformal coated in critical areas and plastics are treated to better withstand the corrosive nature of certain oils.

The ATV61 and ATV71 drives are designed for maximum ambient pollution as follows:
ATV71:
H...M3, 71HD11M3X, HD15M3X, H075N4 to HD18N4 are Degree 2 conforming to IEC/EN 61800-5-1
HD18M3X to HD75M3X, HD22N4 to HC50N4 are Degree 3 conforming to IEC/EN 61800-5-1

ATV61:
H...M3, HD11M3X, HD15M3X, H075N4 to HD18N4 are Degree 2 conforming to IEC/EN 61800-5-1
HD18M3X to HD90M3X, HD22N4 to HC63N4 are Degree 3 conforming to IEC/EN 61800-5-1

Recently viewed
