Altivar 31 Kit for UL type 1 conformity mounted under variable speed drive

Item Number: VW3A31817

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110691917	-

Specifications

Design

Range of product	Altivar
Product compatibility	ATV212HD11M3X ATV312HD15N4 ATV312HD15S6 ATV212HD15M3X ATV212HD15N4 ATV212HD18M3X ATV212HD18N4 ATV312HD11M3 ATV312HD11N4 ATV312HD11S6 ATV312HD15M3
Warranty	18 months

Physical

Range compatibility	Altivar 312 Altivar 212
Net weight	1.2 kg
Standards	UL Type 1
Reach free of svhc	Yes
Rohs exemption information	Yes
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Option
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Product/component not in scope – not electric/electronic device
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Accessory / separate part category	connection accessories
Accessory / separate part type	kit for UL type 1 conformity
Accessory / separate part destination	variable speed drive
Kit composition	mechanical device
Mounting location	underside of drive
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.800 cm
Package 1 width	28.000 cm
Package 1 length	39.200 cm
Package 1 weight	1.424 kg
Unit type of package 2	P06
Number of units in package 2	12
Package 2 height	75.000 cm
Package 2 width	60.000 cm
Package 2 length	80.000 cm
Package 2 weight	30.040 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	5
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Installation Instruction
Certificates (MSDS)
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Discover catalogue for Altivar 312 variable speed drives

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0

DOWNLOAD (ZIP) 23.3 MB

ZIP

Altivar 212 variable drives 2011/03 (web PDF format)

VERSION

1.1

DATE

02 Aug 2022

REVISION

1.1

DOWNLOAD (ZIP) 16.6 MB

ZIP

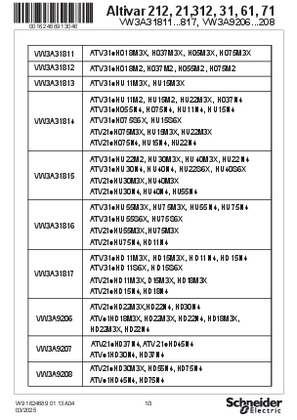

Instruction sheet - UL type 1 conformity kit - VW3A31811...817, VW3A9206...208

VERSION

4.0

DATE

10 Jul 2025

REVISION

4.0

DOWNLOAD (ZIP) 209.5 KB

ZIP

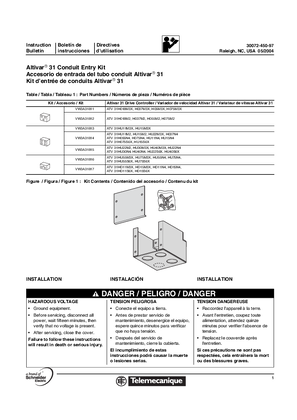

Altivar 31 Conduit Entry Kit VW3A31811 to VW3A31817 Installation Instructions
