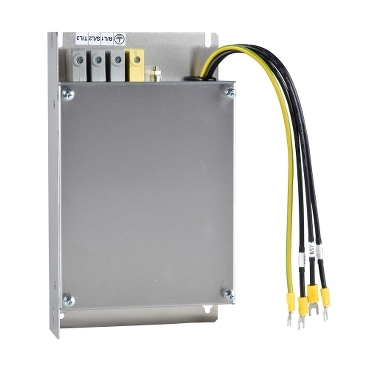

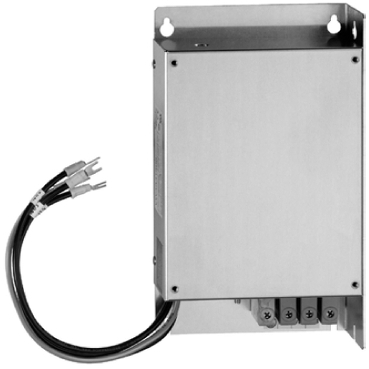

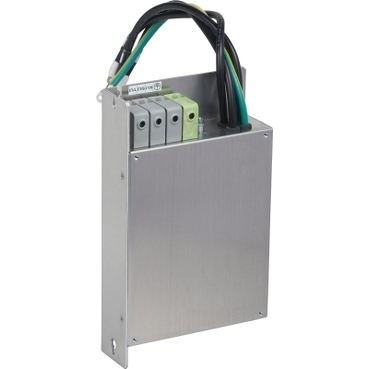

Altivar 31 Additionnal EMC input filter 3-phase supply, 47 A

Home ProductsIndustrialAltivarAdditionnal EMC input filter

Altivar 31 Additionnal EMC input filter 3-phase supply, 47 A

Item Number: VW3A31407

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar

Product or component type

EMC input filter

Product compatibility

  • servo drive LXM23 motor: 7.5 kW
  • ATV212HD11N4
  • ATV212HU55M3X
  • ATV212HU75M3X
  • ATV212HU75N4
  • ATV31CU55N4
  • ATV31CU75N4
  • LXM05AD57N4
  • LXM05BD57N4
  • LXM05CD57N4
  • ATV312HU55M3
  • ATV312HU75M3
  • ATV312HU55N4
  • ATV312HU75N4
  • variable speed drive ATV320...C motor: 5.5 kW, 200...240 V three phase
  • variable speed drive ATV320...C motor: 7.5 kW, 200...240 V three phase

Warranty

18 months

Physical

Range compatibility

  • Lexium 05
  • Lexium 23 Plus
  • Altivar Machine ATV320
  • Altivar 212
  • Altivar 312
  • Altivar 31C
  • Altivar 312 Solar

[in] rated current

47 A

Net weight

3.15 kg

Ip degree of protection

  • IP20
  • IP41 (upper part)

Relative humidity

0...93 % conforming to IEC 68...2-3

Ambient air temperature for operation

-10...50 °C

Ambient air temperature for storage

-25...70 °C

Standards

IEC 61800-3

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

22

Average percentage of recycled plastic content

0 %

Weee label

No

At least in Europe

Product specific application

radio interference input filter

Thermal losses

  • 1.9 W for ATV21HU75N4
  • 19.3 W for ATV31CU55N4
  • 3.7 W for ATV21HU55M3X
  • 3.9 W for ATV21HD11N4
  • 6.8 W for ATV21HU75M3X

Network number of phases

three phase

Electrical connection

terminal 25 mm² AWG 2

Tightening torque

4.5 N.m

Earth leakage current

  • 45 mA 50 Hz
  • 20.6 mA at 480 V 60 Hz
  • 42.8 mA at 480 V 60 Hz

Network rated voltage

  • 200...240 V
  • 380...500 V

Tolerance

10 %

Compatibility code

LXM23

Operating altitude

  • <= 1000 m without current derating
  • <= 1000 m without derating
  • 1000...3000 m with current derating 1 % per 100 m

Vibration resistance

  • 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
  • 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.000 cm

Package 1 width

23.500 cm

Package 1 length

47.000 cm

Package 1 weight

3.001 kg

Unit type of package 2

S06

Number of units in package 2

22

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

76.022 kg

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Warranty (in months)

18
Show all specifications
