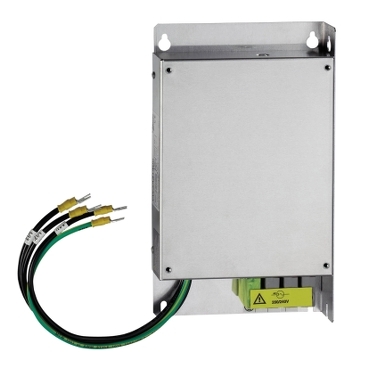

Altivar 31 Additionnal EMC input filter 3-phase supply, 25 A

Item Number: VW3A31406

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110689488	-

Specifications

Design

Range of product	Altivar
Product or component type	EMC input filter
Product compatibility	servo drive LXM23 motor: 4.5 kW servo drive LXM23 motor: 5.5 kW ATV212HU30M3X ATV212HU30N4 ATV212HU40M3X ATV212HU40N4 ATV212HU55N4 ATV31CU22N4 ATV31CU30N4 ATV31CU40N4 LXM05AD22N4 LXM05AD34N4 LXM05AD42M3X LXM05BD22N4 LXM05BD34N4 LXM05BD42M3X LXM05CD22N4 LXM05CD34N4 ATV312HU22N4 ATV312HU30N4 ATV312HU40N4 ATV312HU30M3 ATV312HU40M3 variable speed drive ATV320...C motor: 2.2 kW, 380...500 V three phase variable speed drive ATV320...C motor: 3 kW, 380...500 V three phase variable speed drive ATV320...C motor: 4 kW, 380...500 V three phase variable speed drive ATV320...C motor: 3 kW, 200...240 V three phase variable speed drive ATV320...C motor: 4 kW, 200...240 V three phase variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 380...500 V three phase variable speed drive ATV320...W/ATV320...WS motor: 3 kW, 380...500 V three phase variable speed drive ATV320...W/ATV320...WS motor: 4 kW, 380...500 V three phase
Warranty	18 months

Physical

Range compatibility	Altivar Machine ATV320 Lexium 23 Plus Altivar 212 Altivar 31C Lexium 05 Altivar 312 Altivar 312 Solar
[in] rated current	25 A
Net weight	1.65 kg 1.35 kg
Ip degree of protection	IP20 IP41 (upper part)
Relative humidity	0...93 % conforming to IEC 68...2-3
Ambient air temperature for operation	-10...50 °C
Ambient air temperature for storage	-25...70 °C
Standards	IEC 61800-3
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	Out
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	44
Package 2 bare product quantity	11
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Product specific application	radio interference input filter
Thermal losses	1 W for ATV21HU30N4 3 W for ATV21HU55N4 1.6 W for ATV21HU40N4 15.8 W for ATV31CU22N4 3.6 W for ATV21HU30M3X 6.2 W for ATV21HU40M3X
Network number of phases	three phase
Electrical connection	terminal 10 mm² 6 AWG
Tightening torque	1.8 N.m
Earth leakage current	35 mA 50 Hz 37 mA at 480 V 60 Hz 17.8 mA at 480 V 60 Hz
Network rated voltage	380...500 V 200...240 V
Tolerance	10 %
Compatibility code	LXM23
Operating altitude	<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m
Vibration resistance	1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.800 cm
Package 1 width	23.500 cm
Package 1 length	28.200 cm
Package 1 weight	1.496 kg
Unit type of package 2	S04
Number of units in package 2	11
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	17.232 kg
Unit type of package 3	P06
Number of units in package 3	44
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	78.928 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Take-back	No
Warranty (in months)	18
