Altivar 31 Additionnal EMC filter S6 M2, 1-phase supply, 16 A

Home ProductsIndustrialAltivarAdditionnal EMC filter

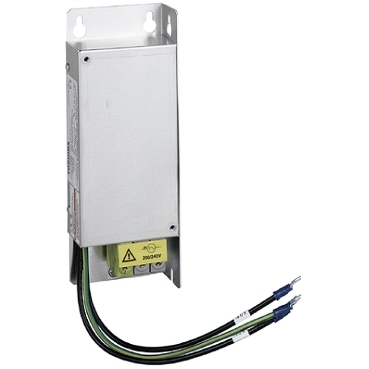

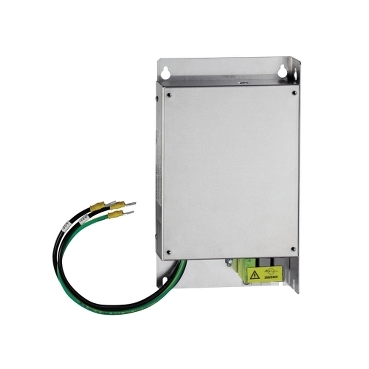

Altivar 31 Additionnal EMC filter S6 M2, 1-phase supply, 16 A

Item Number: VW3A31403

Where To Buy

Datasheet

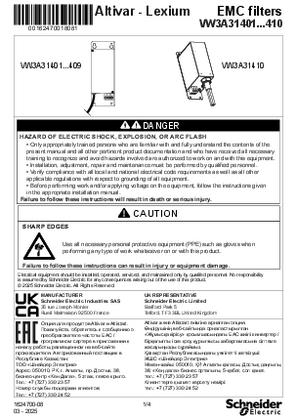

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar

Product or component type

EMC input filter

Product compatibility

  • servo drive LXM23 motor: 0.75 kW
  • servo drive LXM23 motor: 1 kW
  • servo drive LXM23 motor: 1.5 kW
  • ATV312HU11M2
  • ATV312HU15M2
  • ATV31CU11M2
  • ATV31CU15M2
  • LXM05AD17F1
  • LXM05AD17M2
  • LXM05BD17F1
  • LXM05BD17M2
  • LXM05CD17M2
  • variable speed drive ATV320...C motor: 1.1 kW, 200...240 V single phase
  • variable speed drive ATV320...C motor: 1.5 kW, 200...240 V single phase
  • variable speed drive ATV320...W/ATV320...WS motor: 1.1 kW, 200...240 V single phase
  • variable speed drive ATV320...W/ATV320...WS motor: 1.5 kW, 200...240 V single phase

Warranty

18 months

Physical

Range compatibility

  • Lexium 05
  • Altivar 312
  • Altivar 31C
  • Lexium 23 Plus
  • Altivar 312 Solar
  • Altivar Machine ATV320

[in] rated current

16 A

Net weight

0.775 kg

Ip degree of protection

  • IP20
  • IP41 (upper part)

Relative humidity

0...93 % conforming to IEC 68...2-3

Ambient air temperature for operation

-10...50 °C

Ambient air temperature for storage

-25...70 °C

Standards

IEC 61800-3

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Product specific application

radio interference input filter

Thermal losses

6.9 W for ATV31CU11M2

Network number of phases

single phase

Earth leakage current

150 mA 50 Hz

Network rated voltage

200...240 V

Tolerance

10 %

Compatibility code

LXM23

Operating altitude

  • <= 1000 m without current derating
  • 1000...3000 m with current derating 1 % per 100 m

Vibration resistance

  • 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
  • 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.0 cm

Package 1 width

18.6 cm

Package 1 length

24.2 cm

Package 1 weight

632.0 g

Unit type of package 2

S03

Number of units in package 2

7

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

5.043 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
