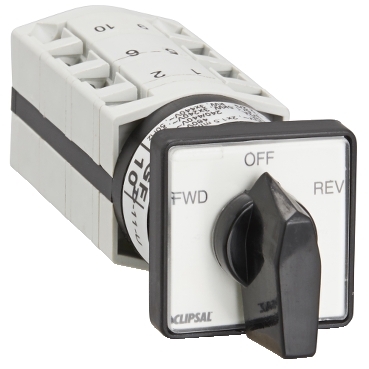

7 Series Cam Switches, Reversing Switch, 3 Pole, Marked Fwd / Off / Rev

7 Series Cam Switches, Reversing Switch, 3 Pole, Marked Fwd / Off / Rev

Item Number: 7GF10/D11/U

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 7

Physical

Switch function

3-way

Connector type

screw terminals

Number of poles

3

Ip degree of protection

IP20

Eu rohs directive

Under investigation

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Mounting holes diameter

9 mm

[us] rated supply voltage

415 V DC

[ui] rated insulation voltage

480 V AC

[ith] conventional free air thermal current

10 A

Rated operational power in w

3 kW

Switching angle

60 °

Fuse type

10-10 kA, gG|10-10 kA, gL

Maximum short-circuit current

80 A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.5 cm

Package 1 width

5.5 cm

Package 1 length

10.4 cm

Package 1 weight

80 g
