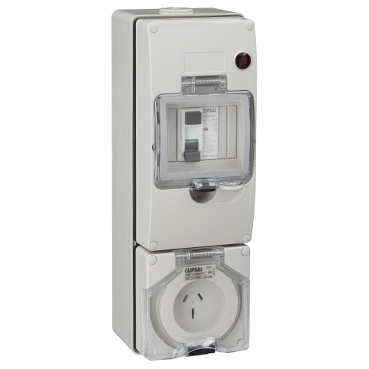

Clipsal - 56 Series, Switched Socket Outlet 250V, 15A, 3 Flat PIN, IP66, Surface Mount, Earth Leakage GY

Item Number: 56C315/4EL-GY

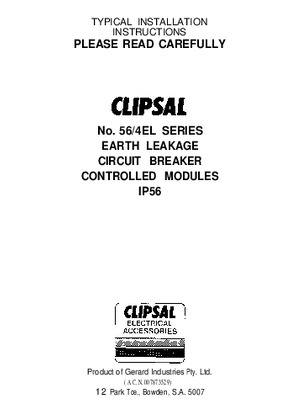

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height204 mm

Depth icon

Depth100 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Product brand

Clipsal

Product or component type

socket-outlet with residual current device

Device application

power supply

Physical

Number of poles

3

Number of power socket outlets

1 protective cover

[in] rated current

15 A

[ue] rated operational voltage

250 V AC

Device mounting

surface

Depth

100 mm

Width

101 mm

Height

204 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

PVC (polyvinyl chloride): housing

Others

Package 1 bare product quantity

1

Earth-leakage protection class

class A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.3 cm

Package 1 width

10.5 cm

Package 1 length

30.0 cm

Package 1 weight

1413.0 g

Unit type of package 2

CAR

Number of units in package 2

8

Package 2 height

30.5 cm

Package 2 width

29.6 cm

Package 2 length

43.6 cm

Package 2 weight

12.0 kg
