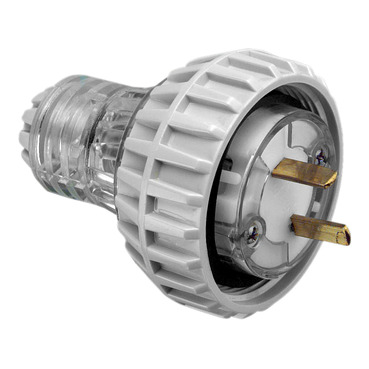

Clipsal - 56 Series, Plug Top, Straight, 2 Polarised PIN, 15A, 32V, IP66

Home ProductsIndustrial56 SeriesPlug Top, Straight, 2 Polarised PIN, 15A, 32V, IP66

Clipsal - 56 Series, Plug Top, Straight, 2 Polarised PIN, 15A, 32V, IP66 EO

Item Number: 56P215/32-EO

Datasheet

Product Dimensions

Width icon

Width67 mm

Height icon

Height67 mm

Depth icon

Depth112.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

plug

Device application

power supply

Colour

orange (RAL 2004)

Market segment

utility|industry|small commercial

Sustainable offer status

Green Premium product

Physical

[in] rated current

15 A

[ue] rated operational voltage

32 V DC conforming to EN 60309-2

Outlet standard

industrial

Connections - terminals

screw terminal 1.5-1.5 mm²

Wire stripping length

35 mm|10 mm

Cable entry

cable gland

Net weight

0.12 kg

Height

67 mm

Width

67 mm

Depth

112.5 mm

Standards

AS/NZS 3112

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

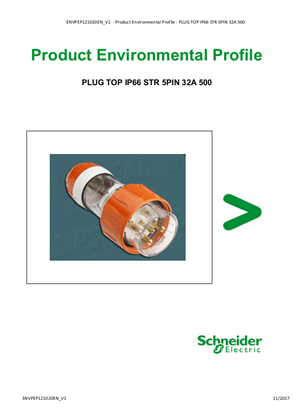

Environmental disclosure

ENVPEP121020EN

Circularity profile

N/A

Material

Material

plastic

Material

polycarbonate: housing

Contacts material

pins: brass

Others

Package 1 bare product quantity

1

Plug, socket category

low voltage

Thread type

M20

Plug, socket, control station shape

straight

Quality labels

RCM

Pin arrangement

E

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.5 cm

Package 1 width

18 cm

Package 1 length

12 cm

Package 1 weight

102 g
Show all specifications

Documents & downloads

hide show
Filter items
  • All

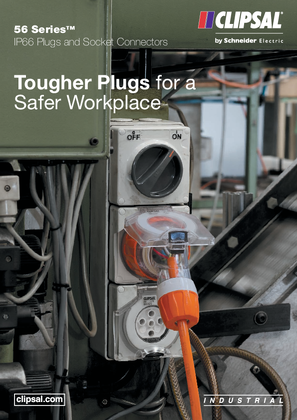

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

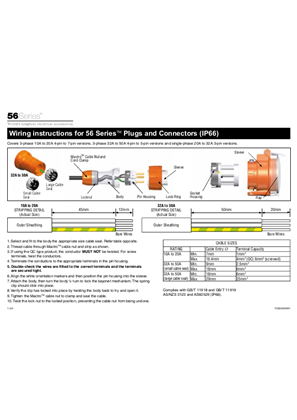

  • Installation Instruction

  • Specification Guide

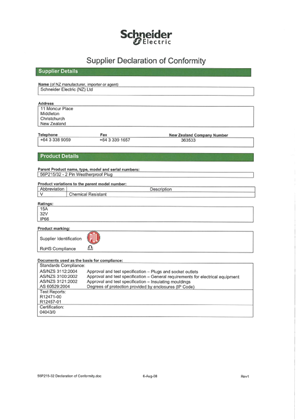

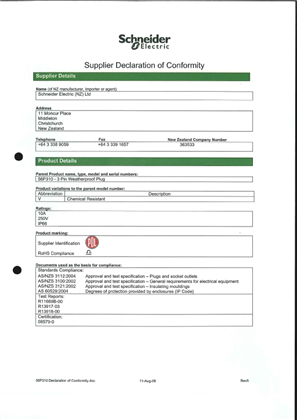

  • Declaration of Conformity
