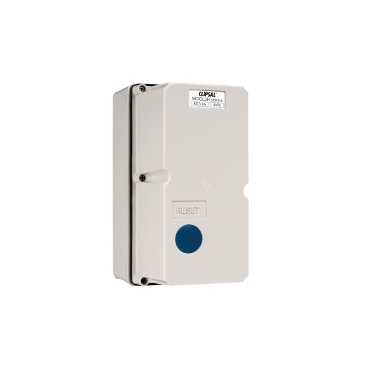

Clipsal - 56 Series, DOL Motor Starter, 4kW, 415V, 1 Push Button, Reset Version, LRD10

Clipsal - 56 Series, DOL Motor Starter, 4kW, 415V, 1 Push Button, Reset Version, LRD10 GY

Item Number: 56DOL9/6R-GY

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Product destination

1 push-button

Physical

[ie] rated operational current

9 A

Ambient air temperature for operation

-20...60 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Others

Package 1 bare product quantity

1

Motor starter type

direct on line

[us] rated supply voltage

415 V AC 50 Hz

Network type

AC

Rated operational power in w

4 kW at 400 V (AC-3)

Overload current

4...6 A

Network number of phases

3 phases

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.001 g
Show all specifications
