Clipsal - 56 Series, Computer Surface Module, IP66, Computer accessory to Suit DB25 Connector

Home ProductsIndustrial56 SeriesComputer Surface Module

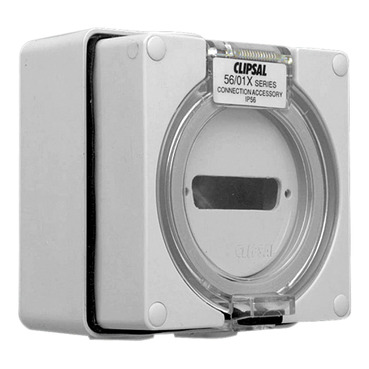

Clipsal - 56 Series, Computer Surface Module, IP66, Computer accessory to Suit DB25 Connector Grey

Item Number: 56/01/1-GY

Datasheet

Product Dimensions

Width icon

Width107 mm

Height icon

Height107 mm

Depth icon

Depth77 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product or component type

socket-outlet

Device application

power supply

Product brand

Clipsal

Market segment

utility|industry|small commercial

Physical

Quantity per set

set of 1

Outlet standard

industrial

Marking

without marking

Local signalling

without light indicator

Device mounting

surface

Fixing mode

by screws

Depth

77 mm

Width

107 mm

Height

107 mm

Net weight

0.001 kg

Ambient air temperature for operation

-25...75 °C

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: cover

Others

Package 1 bare product quantity

1

Plug, socket category

low voltage

Cover type

full cover plate

Tightening torque

0.8 N.m

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.7 cm

Package 1 width

10.7 cm

Package 1 length

7.7 cm

Package 1 weight

0.001 kg
Show all specifications
