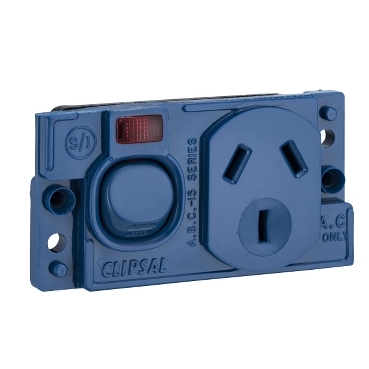

Medilec, Single Switch Socket Outlet, 250V, 10A, O Style, 2 Pole, Horizontal, Neon Dark Blue
Item Number: ML/ABC15DNM-DB
Datasheet
Close
Specifications
Design
Range of product
Medilec ESP Series
Product or component type
switched socket
Product brand
Clipsal
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
- switch
- rocker
Fixing mode
by screws
Local signalling
indicator light
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Height
74 mm
Width
45 mm
Standards
- AS/NZS 3190
- AS/NZS 3003
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 cm
Package 1 width
4 cm
Package 1 length
7.3 cm
Package 1 weight
57 g
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
Take-back
No
Take-back
No
Product contributes to saved and avoided emissions
No
Recycled metal content at cr level
0
Removable battery
N/A
Minimum percentage of recycled plastic content
0
