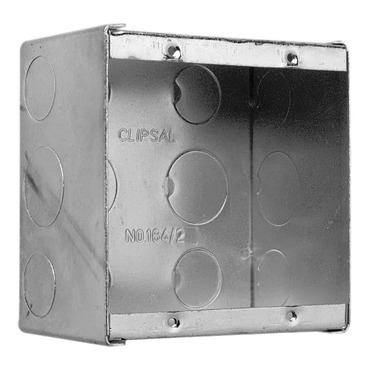

Clipsal - Mounting Accessories, Wall Box, Metal, Poured Concrete, Single Height, 2 Gang
Item Number: 164/2
Datasheet
Close
Specifications
Design
Range of product
Series 164
Product brand
Clipsal
Surface treatment
electro-galvanized
Sustainable offer status
Green Premium product
Physical
Number of gangs
2 gangs
Length
97 mm
Width
96 mm
Depth
58 mm
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP2310013EN
Circularity profile
N/A
Material
Material
steel
Others
Commercial status history
SESA301466 | Tue Dec 19 19:48:00 EST 2023 | From Import Local | From 18 to 19
Package 1 bare product quantity
1
Shape
square
Cable entry number
16
Location of connection
rear
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.308 kg
