Clipsal MAX9 Residual Current Circuit Breaker (RCCB) 2P, 63A, 30mA, A Type

Clipsal MAX9 Residual Current Circuit Breaker (RCCB) 2P, 63A, 30mA, A Type

Clipsal MAX9 Residual Current Circuit Breaker (RCCB) 2P, 63A, 30mA, A Type

Item Number: MX9RC263
Retail
$113
RRP (Inc. GST)

Product Dimensions

Width icon

Width36 mm

Height icon

Height85 mm

Depth icon

Depth75 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
max9 RCD
max9 RCD
max9 RCD

Specifications

Design

Range

MAX9

Product or component type

residual current circuit breaker (RCCB)

Physical

[In] rated current

63 A conforming to AS/NZS 61008.1

[Ue] rated operational voltage

240 V

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Standards

  • IEC 61008-2-1
  • EN/IEC 61008-1
    • Height

      85 mm

      Width

      36 mm

      Depth

      75 mm

      Net weight

      210 g

      Mechanical durability

      10000 cycles

      Electrical durability

      4000 cycles AC 50 Hz

      Connections - terminals

      tunnel type terminals (top or bottom)

      Wire stripping length

      14 mm for top or bottom connection

      IP degree of protection

      IP20

      Relative humidity

      95-95 % at 55-55 °C

      Ambient air temperature for operation

      -25-70 °C

      Ambient air temperature for storage

      -40-85 °C

      REACh Regulation

      Free of Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP1409014EN

      Others

      Poles description

      2P

      Network type

      AC

      Network frequency

      50 Hz

      Earth-leakage sensitivity

      30 mA

      Earth-leakage protection time delay

      instantaneous

      Earth-leakage protection class

      type A

      Rated breaking and making capacity

      Im 630 A at 240 V AC 50 Hz conforming to AS/NZS 61008.1

      Rated conditional short-circuit current

      MAX9 MCB: Inc 6 kA 63 A

      [Ui] rated insulation voltage

      440 V AC 50 Hz conforming to AS/NZS 61008.1

      [Uimp] rated impulse withstand voltage

      4 kV

      Surge current

      250 A

      Quality labels

      RCM

      9 mm pitches

      4

      Tightening torque

      3.5-3.5 N.m top or bottom

      Temperature derating table

    • 40 °C ( 63 A )
    • 45 °C ( 58.5 A )
    • 50 °C ( 55 A )
    • 55 °C ( 51.3 A )
    • 60 °C ( 47.5 A )
    • 65 °C ( 44 A )
    • 70 °C ( 40.5 A )
      • Grid distance

        35 mm

        Pollution degree

        2

        Overvoltage category

        III

        Unit Type of Package 1

        PCE

        Number of Units in Package 1

        1

        Package 1 Weight

        223 g

        Package 1 Height

        8 cm

        Package 1 width

        9 cm

        Package 1 Length

        4 cm

        Unit Type of Package 2

        S03

        Number of Units in Package 2

        48

        Package 2 Weight

        12.108 kg

        Package 2 Height

        30 cm

        Package 2 width

        30 cm

        Package 2 Length

        40 cm

        Unit Type of Package 3

        BB1

        Number of Units in Package 3

        6

        Package 3 Weight

        1.426 kg

        Package 3 Height

        9 cm

        Package 3 width

        25.4 cm

        Package 3 Length

        10.6 cm
        Show all specifications
        max9 busbar
        max9 AFDD

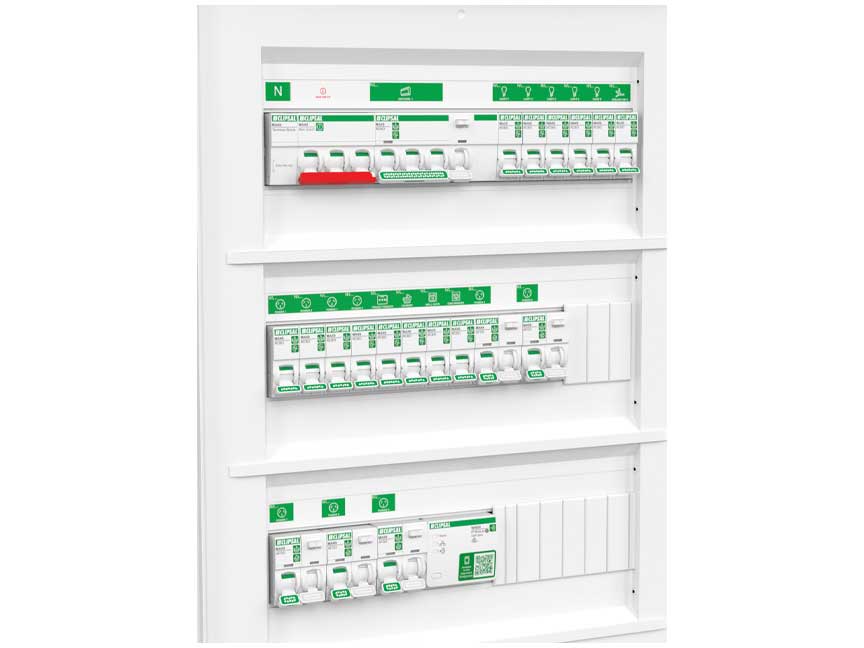

        max9 distribution board
