socket mod 6w/4c mech tele

Modular Socket, Category 3, 6 Way, 4 Contact Socket Mechanism, Telephone

Catalogue Number: 30RJ64SMT
socket mod 6w/4c mech tele
Colour: White Electric
Colour: Per UOM Std.
  • Black 1 PCE
  • Cream 1 PCE
  • White Electric 1 PCE

Specifications

hide show
Product brand
Clipsal
Range of product
Actassi
Product or component type
socket-outlet
Number of ways
6 ways
Connector type
110 RJ11
Communication network category
3
Fixing mode
special tool
AWG gauge
AWG 26...AWG 22
Sustainable offer status
Green Premium product
EU RoHS Directive
Compliant
Environmental Disclosure
ENVPEP111057EN
Circularity Profile
N/A

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Operating Manuals

  • Specifications

  • Certificates (MSDS)

Frequently Asked Questions

hide show

How are the telephone mechanisms 30RJ64SMT and 30RJ66SMT terminated/connected?

To terminate/connect 30RJ64SMT and 30RJ66SMT, please refer to the attached installation instruction.
For further information. please visit
https://www.clipsal.com/Trade/Products/ProductDetail?catno=30RJ64SMT
https://www.clipsal.com/Trade/Products/ProductDetail?catno=30RJ66SMT

Which cables should be on which terminals onto for normal telephone outlut 30rj64smt

terminal 2 with blue and terminal 3 for white.......30RJ64SMT

 terminal 3 with blue and terminal 4 for white.......30RJ66SMT
see attachment
https://updates.clipsal.com/ClipsalOnline/Files/Brochures/W0001036.pdf

Is there a telephone mechanism in Saturn?

There is no telephone mechanism specific for Saturn range. However the 30 series telephone mechanism 30RJ64SMT-** /30RJ66SMT will fit on the Saturn communication plates. Eg 4031VH-PW

Are there data and telephone mechanisms available in the Saturn range ?

Not directly ,  to use the Saturn series with Phone / Data mechanisms etc the Saturn communication plates are required. These are compatible with the 30 series data and telephone mechanisms.

For more information on both Saturn and 30 series please visit the Clipsal web site on the links provided
https://www.clipsal.com/Trade/search-results?q=saturn
https://www.clipsal.com/Trade/search-results?q=30%20series

Does the jack 30RJ64SMT come in a colour to match Saturn horizon?

No, unfortunately it is not available at this point in time.

For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=30RJ64SMT.






Will 30RJ telephone mech fit into Prestige plate?

Yes. Part number 30RJ64SMT can be used with P30Z to fit into Prestige Plate.

What are the termination points on the Modular socket 30RJ64SMT?







Terminations  Destinations of Termial Points
2, 3 (For line in) Goes to alarm panel
1, 4 (For line out) Comes back from alarm Panel to go to the rest of the phones



What are the connections for an Iconic phone mech?

 The connections for the 40RJ64SMT are:

Mate colours will always be first followed by solid colours e.g.
Starting at the centre pin’s.
If you have 2 pair white and blue, it would be:
                R1 = White
                T1 = Blue
If you have 4 pair white, blue, red and black it would be:
R1 = White
                T1 = Blue
                T2 = Red
                R2 = Black

***Please note ignore the colour markings on the mechanism as they are based on an international design.
***An example of a mate colour is white, red etc.

For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=40RJ64SMT-TN





What are the connection points for the 40RJ64SMT?



Mate colours will always be first followed by solid colours e.g.
Starting at the centre pin’s.
If you have 2 pair white and blue, it would be:
               R1 = White
               T1 = Blue
If you have 4 pair white, blue, red and black it would be:
R1 = White
               T1 = Blue
               T2 = Red
               R2 = Black

***Please note ignore the colour markings on the mechanism as they are based on an international design.
***An example of a mate colour is white, red etc.

What is the part number for a 30 series telephone mech?

The part number for a 30 series telephone mech is - 30RJ64SMT
For further information , visit link below:-
https://www.clipsal.com/Trade/search-results?q=30RJ64SMT
User-added image

Is part number 30RJ45SMA6 available in Soft Grey?

Part number 30RJ45SMA6 is Standard in Soft Grey.

Is part number 30RJ45SMA5 available in Chrome Shadow?

No. Unfortunately, part is not available in Chrome Shadow.

What is the replacement for the 30RJ88SMA6?

The replacement is 30RJ45SMA6.

Is there an alternative to the 30RJ88SMA5 which will fit the F30Z1.5 clip?

Yes it is the VDIB17735UWE.

What is part number for BSL plate to accommodate 30RJ45SMA6?

Part number BSL31VH can accommodate 30RJ45 jacks.



What is part number for Saturn plate to suit 30RJ45SMA6?

Part number 4031VH will accommodate 30RJ series mech.

For more information on this part please refer to http\\:www.clipsal.com/Trade/Products/ProductDetail?catno=4031VH

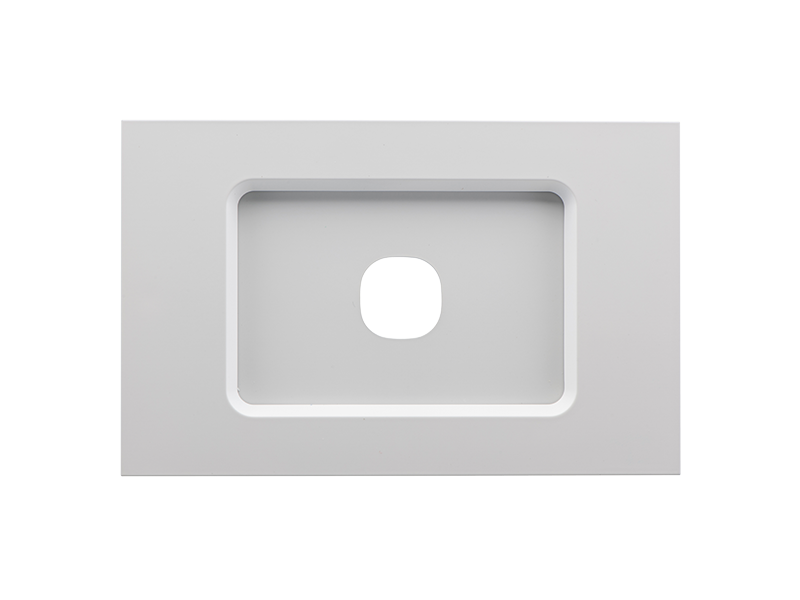

User-added image

Is there a specific phone jack for the ZEN Series?

No, the parts you will require are the ZEN comunication plate which will use a standard 30 Mechanism. The part number is Z4031VH.
Then you will need the phone jack which is the 30RJ64SMT.
______________________________________________________________________________________________________________________________________
Some of the key features for the Z4031VH communications plate are:
  • Premium matte finish that is finger print resistant, UV resistant and chemical resistant that will compliment any home's or commercial building's styling
  • A range of "Pictograms" are available that are LED backlit which will make your friends envious of your home
  • Suits standard mounting accessories
  • All products supplied with black mounting grids as standard
For further infortmation please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=Z4031VH


______________________________________________________________________________________________________________________________________
Some of the key features for the phone jack 30RJ64SMT are:
  • Category 3
  • Telephone print
  • 30 Mechanism
  • RJ12
For further infortmation please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=30RJ64SMT
