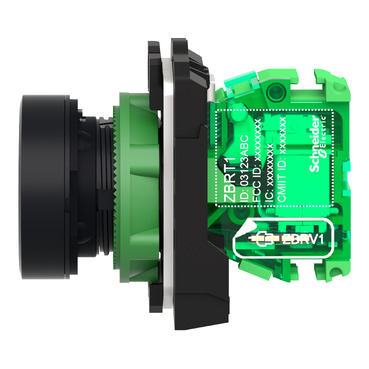

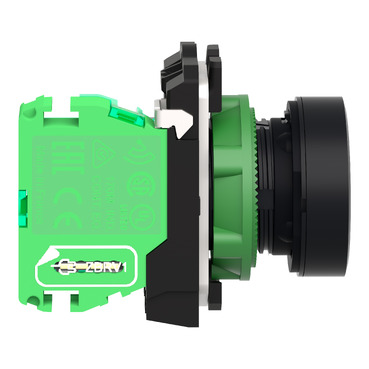

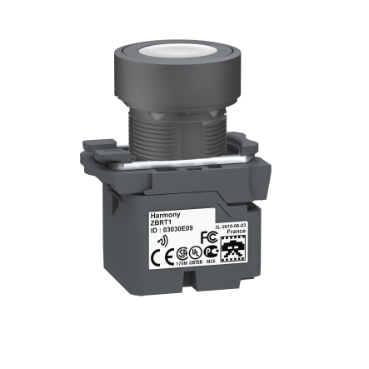

Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, white, 22mm, spring return

Item Number: ZB5RTA1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480334573	-

Specifications

Design

Range of product

Harmony XB5

Product or component type

wireless and batteryless transmitter

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Transmission frequency

2405 MHz

Number of channels

Embedding depth

42 mm

Net weight

0.045 kg

Standards

CSA C22.2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
UL 508

Communication port protocol

Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4

Fixing mode

fixing nut beneath head: 2-2.4 N.m

Marking

unmarked

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Relative humidity

95 % at -40...70 °C without condensation

IP degree of protection

IP66 (front face) conforming to IEC 60529
IP67 (front face) conforming to IEC 60529
IP69 (front face) conforming to IEC 60529
IP69K (front face) conforming to IEC 60529

IK degree of protection

IK03 conforming to IEC 50102

Mechanical durability

1000000 cycles

Product certifications

CSA
C-Tick
GOST
BT 2006/95/EC
UL

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Environmental Disclosure

ENVPEP101106EN

Circularity Profile

ENVEOLI1103010EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 Bare Product Quantity

Device short name

XB5R

Bezel material

dark grey plastic

Fixing collar material

plastic

Mounting diameter

22 mm

Level or class

5M00G7W

Antenna type

omnidirectional

Shape of signaling unit head

round

Type of operator

spring return push-button with transmitter

Operator profile

white flush

Max power consumption in W

1 mW

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

CAD overall height

41.5 mm

CAD overall width

30 mm

CAD overall depth

43 mm

Operating travel

4.3 mm (total travel)

Operating force

10 N C/O changing electrical state

Mechanical robustness

free fall resistance 1000 mm conforming to EN/IEC 60068-2-32

Radio agreement

ANATEL
ARIB T66
FCC
ICASA
RSS

Maximum sensing distance

100 m in free field
25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure
300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Acquisition time

2 ms

Response time

< 2="">

Emission power

3 mW

Main group

wireless push-button

Group of product

flush push wireless

Station name

XALD 1...5 cut-outs
XALK 2...5 cut-outs

Cap/operator or lens colour

white

Electrical composition code

PW1

Customizable

Shock resistance

25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6
+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3
susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
