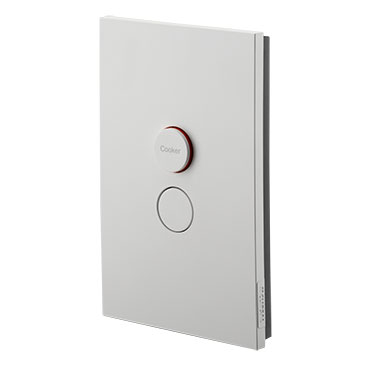

Clipsal Saturn Zen Cooker Switch Double Pole, 32A,250V

Zen White | Clipsal Saturn Zen Cooker Switch Double Pole, 32A,250V

Clipsal Saturn Zen Cooker Switch Double Pole, 32A,250V

Item Number: Z4061D32-ZW

Retail
$122.80
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Product brand

Clipsal

Physical

Circularity Profile

ENVEOLI110713EN

Environmental Disclosure

ENVPEP111024EN

Mercury free

Yes

REACh free of SVHC

Yes

REACh Regulation

Free of Substances of Very High Concern above the threshold

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

EU RoHS Directive

Compliant

RoHS exemption information

Yes

Toxic heavy metal free

Yes

Others

Number of Units in Package 1

1

Package 1 Height

70 mm

Package 1 Length

116 mm

Package 1 Weight

0.26 kg

Package 1 width

90 mm

Unit Type of Package 1

PCE
Show all specifications

Frequently Asked Questions

hide show

Can the Z4061D32 Cooker Switch assembly be mounted Horizontal?

Yes it can, just rotate the legend "cooker" to suit.

Is there a 35A Mech for Saturn Zen Series

No there is no saturn mech available. There is either the Z4061/45 or Z4061D32 cooker switch plate or the 30M35 in a Z4031VH Plate

Are Saturn cooker switches 4061D32 and 4061/45 marked cooker?

4061D32 and 4061/45 cooker switches are supplied with a spare labeled mechanism cap that is marked COOKER to replace the unmarked cap. Picture attached.
Thus the customer has the choice to use  4061D32 and 4061/45 either marked COOKER or unmarked.




what is the part number of cooker mech in Zen?

Is there a horizontal version of Z4061D32, 32A, 415V double pole Saturn Zen cooker switch?

In Z4061D32, the Cooker Marking on the Cooker switch mechanism can be removed and turned 90 degrees to allow for both vertical or horizontal mounting.
For further information, please refer to the below link:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=Z4061D32
User-added image





What is the part number for the cooker switches in the Zen range ?

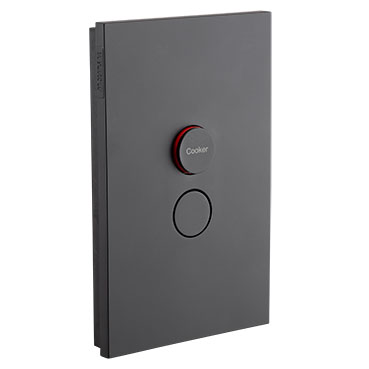

There are 2 options for Cooker switches in the Zen Range, These are Z4061D32 and Z4061/45 . Both are available in ZB ( Zen Black) and ZW ( Zen White ) The cap with the cooker label can be rotated 90 degrees to allow for both Horizontal and vertical plate mounting.
For more information on this product please visit the Clipsal website on the link Provided
https://www.clipsal.com/Trade/search-results?q=z4061
User-added image
