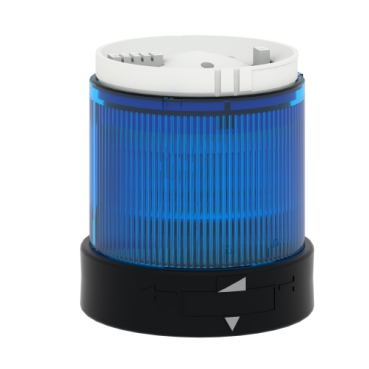

Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, steady, integral LED, 230V AC

Back to XVB Indicator Beacons & Banks - IP65 Home Harmony XVB XVB Indicator Beacons & Banks - IP65

Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, steady, integral LED, 230V AC

Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, steady, integral LED, 230V AC

Item Number: XVBC2M6

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

indicator bank

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Connections - terminals

screw clamp terminals, <= 1="" x="" 1.5="" mm²="" with="" cable="">

Net weight

0.15 kg

Product certifications

  • CCC
  • EAC
  • CSA C22-2 No 14
  • UL 508

Standards

EN/IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

IP degree of protection

  • IP65 on fixing base XVBZ0. conforming to IEC 60529
  • IP66 on base unit conforming to IEC 60529

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China RoHS Regulation

X

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP070907EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Package 1 Bare Product Quantity

1

Beacon or indicator bank unit type

illuminated unit

Signalling type

steady

Mounting diameter

70 mm

Component name

XVBC

Light source

integral LED, blue

Bulb type

protected LED

[Us] rated supply voltage

230 V AC

Assembly style

customer assembly, up to 5 units

[Ui] rated insulation voltage

250 V conforming to IEC 60947-1

Nominal voltage limit

0.85...1.1 Un conforming to IEC 60947-5-1

Current consumption

< 17="" ma="">

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

CAD overall width

70 mm

CAD overall height

63 mm

CAD overall depth

70 mm

Pollution degree

2

Protective treatment

TC

Electrical shock protection class

  • class I on support tube conforming to IEC 61140
  • class II on base unit conforming to IEC 61140

NEMA degree of protection

Type 4X conforming to UL (indoor)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.000 cm

Package 1 Width

9.300 cm

Package 1 Length

8.000 cm

Package 1 Weight

140.900 g

Unit Type of Package 2

S03

Number of Units in Package 2

36

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.789 kg

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
