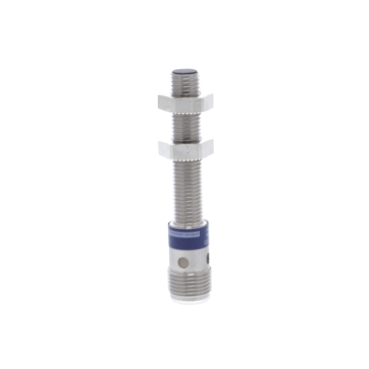

Ddpi M8P+ Sn=2,5mm No Npn Uni Flush 10-5

Ddpi M8P+ Sn=2,5mm No Npn Uni Flush 10-5

Ddpi M8P+ Sn=2,5mm No Npn Uni Flush 10-5

Item Number: XS608B1NAM12

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Warranty

18 months

Range of product

Telemecanique Inductive proximity sensors XS

Physical

Marking

CE

Length

62 mm

Net weight

0.015 kg

Product certifications

  • CSA
  • UL

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP111006EN

Circularity Profile

ENVEOLI111004EN

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sensor type

inductive proximity sensor

IP degree of protection

IP67 conforming to IEC 60529

Material

Material

stainless steel

Others

Thread type

M8 x 1

Detection face

frontal

Front material

PPS

Enclosure material

stainless steel 303

Sensing range

> 0...2.5 mm

Operating zone

0...2 mm

Differential travel

1...15% of Sr

Status LED

output state: 1 LED (yellow)

Supply voltage limits

10...58 V DC

Switching frequency

<= 2500="">

Maximum voltage drop

<2 v="">

Current consumption

<= 10="" ma="">

Maximum delay first up

10 ms

Maximum delay response

0.2 ms

Maximum delay recovery

0.2 ms

Threaded length

40 mm

Vibration resistance

25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

22.0 g

Package 1 Height

4.2 cm

Package 1 width

6.7 cm

Package 1 Length

9.6 cm

Unit Type of Package 2

S02

Number of Units in Package 2

44

Package 2 Weight

1.293 kg

Package 2 Height

15 cm

Package 2 width

30 cm

Package 2 Length

40 cm

Package 3 Height

15 cm

Series name

general purpose

Sensor name

XS6

Sensor design

cylindrical M8

Size

62 mm

Body type

fixed

Detector flush mounting acceptance

flush mountable

Type of output signal

discrete

Wiring technique

3-wire

[Sn] nominal sensing distance

2.5 mm

Discrete output function

1 NO

Output circuit type

DC

Discrete output type

NPN

Electrical connection

male connector M12, 4 pins

[Us] rated supply voltage

12...48 V DC with reverse polarity protection

Switching capacity in mA

<= 200="" ma="" dc="" with="" overload="" and="" short-circuit="">
