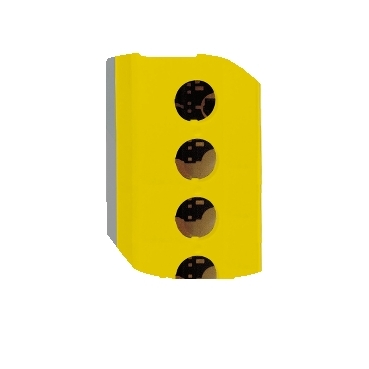

4 P.B Empty Contactor Box

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XALK

Product or component type

empty control station

Product destination

for XB5 Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable entry

  • 2 knock-outs for cable entry, clamping capacity: 14-14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm

IP degree of protection

  • IP66 conforming to IEC 60529
  • IP67
  • IP69
  • IP69K

Net weight

0.278 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

IK degree of protection

IK03 conforming to EN 50102

Standards

  • UL 508
  • JIS C8201-5-1
  • EN/IEC 60947-5-1
  • EN/IEC 60947-5-5
  • EN/IEC 60947-5-4
  • CSA C22.2 No 14
  • EN/IEC 60947-1
  • JIS C8201-1

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP1806010EN

Circularity Profile

ENVEOLI1806010EN

Material

Material

polycarbonate

Others

Device short name

XALK

Control station application

  • emergency stop function
  • emergency switching off function

Number of cut-out

4 cut-outs

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

yellow (RAL 1021)

Assembly style

for customer assembly

Number of horizontal rows

1

Number of vertical rows

4

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mounting of block

  • rear mounting
  • front mounting

Main group

4 cut-outs

Group of product

standard yellow

Customizable

no

Customizable

0

Compatibility code

XALK

Protective treatment

TH

Overvoltage category

class II conforming to IEC 60536

NEMA degree of protection

  • NEMA 13
  • NEMA 4X

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

267.0 g

Package 1 Height

16.7 cm

Package 1 width

7 cm

Package 1 Length

7.7 cm
