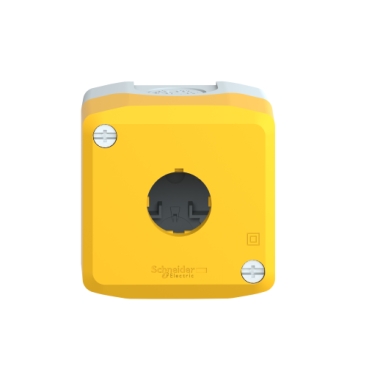

Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out

Back to Complete Double Insulated Control Stations XAL with ø22 Harmony® Style 5 Control & Signalling Units Home Harmony XALD Complete Double Insulated Control Stations XAL with ø22 Harmony® Style 5 Control & Signalling Units

Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out

Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out

Item Number: XALK01

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Harmony XALK

Product or component type

empty control station

Product destination

for XB5 Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable entry

  • 1 knock-out for cable entry, clamping capacity: 14-14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm

IP degree of protection

  • IP66 conforming to IEC 60529
  • IP67
  • IP69
  • IP69K

Net weight

0.136 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

IK degree of protection

IK03 conforming to EN 50102

Standards

  • EN/IEC 60947-5-5
  • UL 508
  • EN/IEC 60947-5-4
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • EN/IEC 60947-1
  • EN/IEC 60947-5-1
  • JIS C8201-1

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP1806010EN

Circularity Profile

ENVEOLI1806010EN

Material

Material

polycarbonate

Others

Package 1 Bare Product Quantity

1

Device short name

XALK

Control station application

  • emergency stop function
  • emergency switching off function

Number of cut-out

1 cut-out

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

yellow (RAL 1021)

Assembly style

for customer assembly

Number of horizontal rows

1

Number of vertical rows

1

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mounting of block

  • front mounting
  • rear mounting

Electrical composition code

  • SR1
  • SF1
  • MR1
  • MF1

Main group

1 cut-out

Group of product

standard yellow

Customizable

no

Customizable

1

Compatibility code

XALK

GCR BRIDGE

XALK01CUST01

Protective treatment

TH

Overvoltage category

class II conforming to IEC 60536

NEMA degree of protection

  • NEMA 13
  • NEMA 4X

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.800 cm

Package 1 Width

7.500 cm

Package 1 Length

6.800 cm

Package 1 Weight

118.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

60

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

7.468 kg

Unit Type of Package 3

P06

Number of Units in Package 3

480

Package 3 Height

77.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

73.724 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Declaration of Conformity

  • Certificates (MSDS)

  • eTechPub

Yellow empty enclosure lid with light grey base - 1 cut-out - 3D CAD
ZIP

Yellow empty enclosure lid with light grey base - 1 cut-out - 3D CAD

VERSION

1.0

DATE

01 Feb 2022

REVISION

-----

DOWNLOAD (ZIP) 1.3 MB
Control stations for Ø 22 control and signalling unitss, 1 location
ZIP

Control stations for Ø 22 control and signalling unitss, 1 location

VERSION

1.1

DATE

12 Mar 2021

REVISION

-----

DOWNLOAD (ZIP) 123.4 KB
Automation and Control Essentials Catalog 2023-EN
ZIP

Automation and Control Essentials Catalog 2023-EN

VERSION

7.0

DATE

24 Apr 2023

REVISION

-----

DOWNLOAD (ZIP) 28.9 MB
Catalog Harmony XALD and XALK plastic control stations English 07/2022
ZIP

Catalog Harmony XALD and XALK plastic control stations English 07/2022

VERSION

4.0

DATE

10 Aug 2022

REVISION

-----

DOWNLOAD (ZIP) 10.1 MB
Harmony XAL Control Stations, Product Environmental Profile
ZIP

Harmony XAL Control Stations, Product Environmental Profile

VERSION

1.0

DATE

06 Oct 2022

REVISION

-----

DOWNLOAD (ZIP) 27.4 MB
Harmony XAL Control Stations, Product End of Life Instructions
ZIP

Harmony XAL Control Stations, Product End of Life Instructions

VERSION

1.0

DATE

06 Oct 2022

REVISION

-----

DOWNLOAD (ZIP) 27.5 MB
Harmony XALD/XALK Control Stations Instruction Sheet
ZIP

Harmony XALD/XALK Control Stations Instruction Sheet

VERSION

2.0

DATE

04 Jun 2021

REVISION

-----

DOWNLOAD (ZIP) 186.4 KB
XALD/K Control stations
ZIP

XALD/K Control stations

VERSION

1.1

DATE

16 May 2023

REVISION

-----

DOWNLOAD (ZIP) 270.5 KB
XALD/K Control stations
ZIP

XALD/K Control stations

VERSION

1.0

DATE

08 May 2023

REVISION

-----

DOWNLOAD (ZIP) 524.1 KB
XACA Pendant control station
ZIP

XACA Pendant control station

VERSION

1.0

DATE

03 May 2023

REVISION

-----

DOWNLOAD (ZIP) 95.3 KB
XALD, XALK Control stations
ZIP

XALD, XALK Control stations

VERSION

1.0

DATE

25 Jan 2023

REVISION

-----

DOWNLOAD (ZIP) 159.3 KB
XALD, XALK Control stations
ZIP

XALD, XALK Control stations

VERSION

1.0

DATE

06 Oct 2022

REVISION

-----

DOWNLOAD (ZIP) 938.8 KB
English
ZIP

English

VERSION

7.0

DATE

13 Jan 2022

REVISION

-----

DOWNLOAD (ZIP) 561 KB

Frequently Asked Questions

hide show

What is the parts breakdown of a XALK194?

Issue:
How is XALK194 composed?

Product Line:
Push Buttons and Operator Interface

Environment:
Control Stations and Enclosures

Resolution:
A XALK01 enclosure, a ZB5AT4 push-pull mushroom button, and a ZENL1121 normally closed base mount contact block.
