Package 1 Bare Product Quantity
1

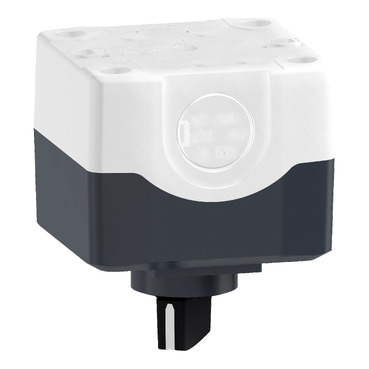

Control station application
Start-Stop function
Colour of base of enclosure
light grey (RAL 7035)
Colour of cover
dark grey (RAL 7016)
Operator profile
1 selector switch with handle
Operators description
standard handle ''O-I'' 1 NO
Control station composition
1 selector switch with standard handle 1 NO O-I marking
Marking location
marking on legend holder
Contact operation
slow-break
Resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
Operator position information
2 positions
Operating travel
4.3 mm (total travel)
Torque value
0.14 N.m NO changing electrical state
Tightening torque
0.8...1.2 N.m conforming to EN/IEC 60947...1
Shape of screw head
- cross compatible with Philips no 1 screwdriver
- cross compatible with pozidriv No 1 screwdriver
- slotted compatible with flat Ø 4 mm screwdriver
- slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current
10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV conforming to EN/IEC 60947-1
Electrical reliability
- λ < 10exp(-6)="" at="" 5="" v,="" 1="" ma="" conforming="" to="" en/iec="">
- λ < 10exp(-8)="" at="" 17="" v,="" 5="" ma="" conforming="" to="" en/iec="">
Overvoltage category
class II conforming to IEC 60536
NEMA degree of protection
Vibration resistance
5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.000 cm
Package 1 Length
10.000 cm
Package 1 Weight
146.100 g
Unit Type of Package 2
S03
Number of Units in Package 2
40
Package 2 Height
30.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
6.275 kg
Unit Type of Package 3
P06
Number of Units in Package 3
320
Package 3 Height
75.000 cm
Package 3 Width
80.000 cm
Package 3 Length
60.000 cm
Package 3 Weight
58.203 kg
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
