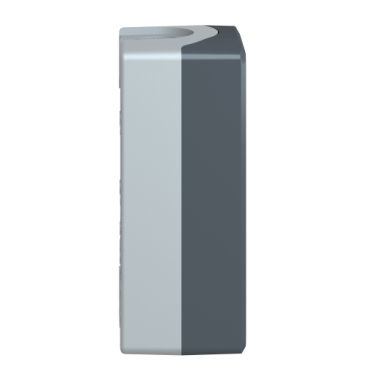

Harmony XALD XALK, Empty control station, plastic, dark grey lid, light grey base, 3 cut out

Control stations XALD for control and signaling units diameter 22_3-cut out

Harmony control station XALD for harmony plastic Diam. 22 - dark grey empty enclosure lid with light grey base - 3 cut-outs

Back to Complete Double Insulated Control Stations XAL with ø22 Harmony® Style 5 Control & Signalling Units Home ... Product Catalogue Industrial Schneider Electric - Electrical Distribution, Automation and Control Control Stations & Enclosures Harmony XALD Complete Double Insulated Control Stations XAL with ø22 Harmony® Style 5 Control & Signalling Units

Harmony XALD XALK, Empty control station, plastic, dark grey lid, light grey base, 3 cut out

Item Number: XALD03

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110114812	-

Specifications

Design

Range of product

Harmony XALD

Product or component type

empty control station

Product destination

for XB5 Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable entry

2 knock-outs for cable entry, clamping capacity: 14-14 mm
2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm

IP degree of protection

IP66 conforming to IEC 60529
IP67
IP69
IP69K

Net weight

0.238 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

IK degree of protection

IK03 conforming to EN 50102

Standards

EN/IEC 60947-1
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-5
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C8201-5-1
JIS C8201-1

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Environmental Disclosure

ENVPEP1806010EN

Circularity Profile

ENVEOLI1806010EN

Material

Material

polycarbonate

Others

Package 1 Bare Product Quantity

Device short name

XALD

Number of cut-out

3 cut-outs

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

dark grey (RAL 7016)

Assembly style

for customer assembly

Number of horizontal rows

Number of vertical rows

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mounting of block

rear mounting
front mounting

Electrical composition code

Main group

3 cut-outs

Group of product

standard grey

Customizable

Compatibility code

XALD

GCR BRIDGE

XALD03CUST01

Protective treatment

Overvoltage category

class II conforming to IEC 60536

NEMA degree of protection

NEMA 13
NEMA 4X

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

7.500 cm

Package 1 Width

13.700 cm

Package 1 Length

7.000 cm

Package 1 Weight

222.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

7.134 kg

Unit Type of Package 3

P06

Number of Units in Package 3

240

Package 3 Height

77.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

18 Aug 2023
