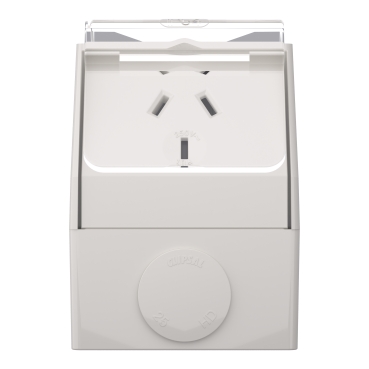

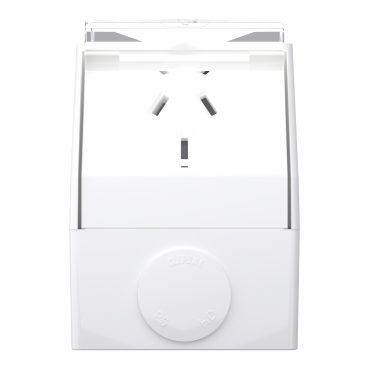

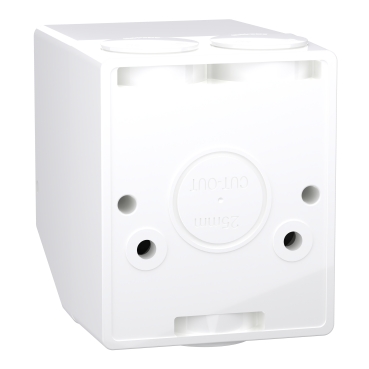

Single Switch Socket Outlet, 250V, 10A, Weather Proof, Surface Mount

White Electric | Single Switch Socket Outlet, 250V, 10A, Weather Proof, Surface Mount

Single Switch Socket Outlet, 250V, 10A, Weather Proof, Surface Mount

Item Number: WSC228-WE

Retail
$118
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Weathershield

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Control type

  • sliding type
  • ON/OFF button
    • Number of gangs

      1 gang

      Pin number

      3

      Number of power socket outlets

      1

      Fixing mode

      by screws

      Local signalling

      without light indicator

      Mounting position

      horizontal

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A

      Depth

      87 mm

      Length

      75 mm

      Width

      78 mm

      Fixing center

      84 mm

      IP degree of protection

      IP54

      Standards

      AS/NZS 3112:approval number S/1

      REACh Regulation

      Free of Substances of Very High Concern above the threshold

      REACh free of SVHC

      Yes

      EU RoHS Directive

      Compliant

      Toxic heavy metal free

      Yes

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

       Pro-active China RoHS declaration (out of China RoHS legal scope)

      Environmental Disclosure

      ENVPEP130201EN

      Material

      Material

      plastic

      Others

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      236 g

      Package 1 Height

      7 cm

      Package 1 width

      8.5 cm

      Package 1 Length

      10 cm
      Show all specifications

      Frequently Asked Questions

      hide show

      Is the WSCF228 and the WSC228 have the same dimensions?

      Yes apart from the depth as one is surface mount and the other is flushmount.
