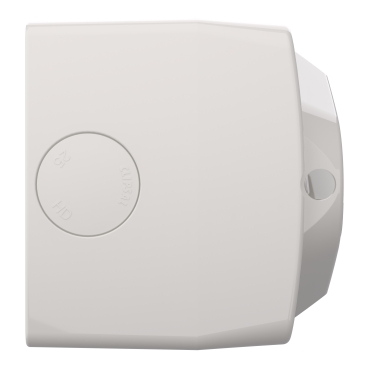

Surface Switch, 1 Gang, 1 Pole, 250VAC, 20A, Hoseproof, M80 Rating

Resistant Grey | Surface Switch, 1 Gang, 1 Pole, 250VAC, 20A, Hoseproof, M80 Rating

Surface Switch, 1 Gang, 1 Pole, 250VAC, 20A, Hoseproof, M80 Rating

Item Number: WHA120-RG

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Weathershield

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element with complete housing

Switch function

1-pole

Number of poles

1

Device mounting

surface

Fixing mode

by screws

Local signalling

without

[Ue] rated operational voltage

250 V AC

Rated current

20 A

Marking

ON-OFF

Standards

  • AS 60529
  • AS/NZS 60947-3
  • IEC 60669-1
  • AS/NZS 3947-3:approval number S/1

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP130201EN

Others

Package 1 Bare Product Quantity

1

Marking location

marking on surface

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.0 cm

Package 1 Width

9.0 cm

Package 1 Length

9.0 cm

Package 1 Weight

236.0 g
