Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random swtching, input 4...32V DC, output 24...280V AC

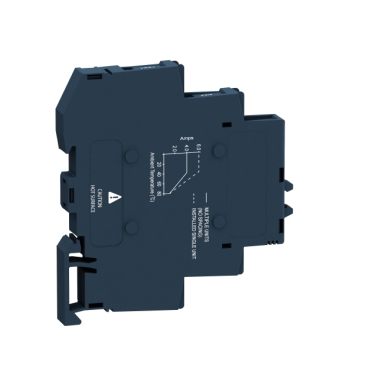

Harmony Solid State Relays Range Picture

Back to Single Phase SSR Home ... Product Catalogue Industrial Schneider Electric - Electrical Distribution, Automation and Control Smart Programmable Relay Zelio Solid State Relays Single Phase SSR

Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random swtching, input 4...32V DC, output 24...280V AC

Item Number: SSM1A16BDR

Where To Buy

Datasheet

Download

Product Dimensions

Width11 mm

Height90.3 mm

Depth83.7 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579417	-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

solid state relay up to 10 A

Sustainable offer status

Green Premium product

Physical

Number of channels

Connections - terminals

screw connectors

Mounting support

symmetrical DIN rail

[In] rated current

6 A

Connections - terminals

screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

LED (green) for input status

Width

11 mm

Height

90.3 mm

Depth

83.7 mm

Net weight

0.05 kg

Device presentation

complete product

Standards

IEC 62314
IEC 60950-1
IEC 61000

Product certifications

Marking

IP degree of protection

IP20

Ambient air temperature for operation

-30...80 °C

Ambient air temperature for storage

-30...100 °C

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Environmental Disclosure

ENVPEP1307069EN

Circularity Profile

ENVEOLI1307069EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 Bare Product Quantity

Device short name

SSM

Network number of phases

1 phase

[Uc] control circuit voltage

4...32 V

Output switching mode

random voltage switching

Output voltage

24...280 V AC

[Uc] control circuit voltage

4...32 V DC

Tightening torque

0.5...0.8 N.m for input
0.5...0.8 N.m for output

Capacitance unbalance

10 pF for input/output

Minimum switching voltage

4 V DC turn-on

Maximum switching voltage

1 V DC turn-off

Input current limits

8...11 mA

Solid state output type

SCR output
random voltage switching

Load current

0.15...6 A

Absolute maximum voltage

600 V

Surge current

285 A for 16.6 ms
300 A for 20 ms

Maximum voltage drop

<1.3 v="">

Motor power hp

0.16 hp 40 °C 240 V AC

Maximum I²t for fusing

410 A².s for 10 ms at 50 Hz
375 A².s for 8.33 ms at 60 Hz

Maximum leakage current

0.1 mA off-state

DV/dt

500 V/µs off-state at maximum voltage

Response time

0.5 cycle (turn-off)
0.1 ms (turn-on)

Cos phi

0.5...0.5 (with maximum load)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

4 kV AC for input/output
4 kV AC for input or output to case

Pollution degree

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

2.000 cm

Package 1 Width

9.000 cm

Package 1 Length

9.000 cm

Package 1 Weight

65.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight
