Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

Harmony Solid State Relays Range Picture

Back to Slim Type SSR Home ... Product Catalogue Industrial Schneider Electric - Electrical Distribution, Automation and Control Smart Programmable Relay Zelio Solid State Relays Slim Type SSR

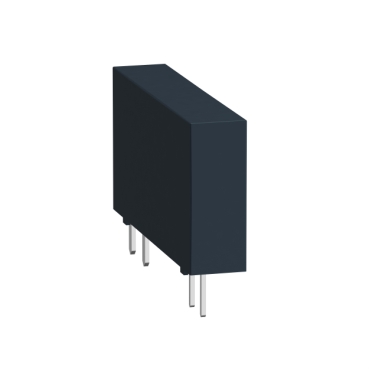

Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

Item Number: SSL1D101BD

Where To Buy

Datasheet

Download

Product Dimensions

Width5 mm

Height28 mm

Depth15 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579684	-
12	CAR	13606480579681	-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

solid state relay up to 10 A

Sustainable offer status

Green Premium product

Physical

Mounting support

socket

[In] rated current

0.1 A

Width

5 mm

Height

28 mm

Depth

15 mm

Net weight

0.0041 kg

Device presentation

complete product

Product certifications

Marking

Ambient air temperature for operation

-20...80 °C

Ambient air temperature for storage

-20...85 °C

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Environmental Disclosure

ENVPEP1405004EN

Circularity Profile

ENVEOLI1405004EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 Bare Product Quantity

Device short name

SSL

Network number of phases

1 phase

[Uc] control circuit voltage

16...30 V

Output switching mode

DC switching

Output voltage

1...48 V DC

[Uc] control circuit voltage

16...30 V DC

Capacitance unbalance

1.5 pF input/output

Minimum switching voltage

16 V DC turn-on

Maximum switching voltage

9 V DC turn-off

Input current limits

5 mA

Input impedance

3500 Ohm

Solid state output type

DC switching
transistor output

Load current

0.001...0.1 A

Absolute maximum voltage

60 V DC

Maximum operating frequency

500 Hz

Surge current

0.3 A for 10 ms

Maximum voltage drop

<1 v="">

Maximum leakage current

0.001 mA off-state

Response time

0.02 ms (turn-on)
0.13 ms (turn-off)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

3750 V for input/output

Pollution degree

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

0.7 cm

Package 1 Width

2.5 cm

Package 1 Length

37 cm

Package 1 Weight

5 g

Unit Type of Package 2

BB1

Number of Units in Package 2

Package 2 Height

0.7 cm

Package 2 Width

2.5 cm

Package 2 Length

37 cm

Package 2 Weight

60 g

Unit Type of Package 3

S01

Number of Units in Package 3

1080

Package 3 Height

15 cm

Package 3 Width

15 cm

Package 3 Length

40 cm

Package 3 Weight

06 Oct 2022

REVISION

-----

DOWNLOAD (ZIP) 235.6 KB

ZIP

CSA Certificate SSL1 SSM1 SSM3 SSP1

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 207 B

ZIP

English

VERSION

5.2

DATE

24 Jan 2022

REVISION

-----

DOWNLOAD (ZIP) 700.5 KB

Colour ()

Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

Item Number: SSL1D101BD

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Package 1 Bare Product Quantity

Device short name

Network number of phases

[Uc] control circuit voltage

Output switching mode

Output voltage

[Uc] control circuit voltage

Capacitance unbalance

Minimum switching voltage

Maximum switching voltage

Input current limits

Input impedance

Solid state output type

Load current

Absolute maximum voltage

Maximum operating frequency

Surge current

Maximum voltage drop

Maximum leakage current

Response time

Overvoltage category

Flame retardance

Dielectric strength

Pollution degree

Unit Type of Package 1

Number of Units in Package 1

Package 1 Height

Package 1 Width

Package 1 Length

Package 1 Weight

Unit Type of Package 2

Number of Units in Package 2

Package 2 Height

Package 2 Width

Package 2 Length

Package 2 Weight

Unit Type of Package 3

Number of Units in Package 3

Package 3 Height

Package 3 Width

Package 3 Length

Package 3 Weight
