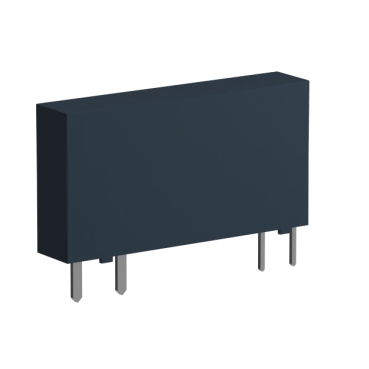

Harmony Solid State Relays, Solid state slim relay, 2A, zero voltage switching, input 3…12V DC, output 24...280V AC

Item Number: SSL1A12JD

Where To Buy

Datasheet

Download

Product Dimensions

Width5 mm

Height28 mm

Depth15 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579707	-
12	CAR	13606480579704	-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

solid state relay up to 10 A

Sustainable offer status

Green Premium product

Physical

Mounting support

socket

[In] rated current

2 A

Width

5 mm

Height

28 mm

Depth

15 mm

Net weight

0.0041 kg

Device presentation

complete product

Product certifications

Marking

Ambient air temperature for operation

-20...80 °C

Ambient air temperature for storage

-20...85 °C

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Environmental Disclosure

ENVPEP1405004EN

Circularity Profile

ENVEOLI1405004EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 Bare Product Quantity

Device short name

SSL

Network number of phases

1 phase

[Uc] control circuit voltage

3...12 V

Output switching mode

zero voltage switching

Output voltage

24...280 V AC

[Uc] control circuit voltage

3...12 V DC

Capacitance unbalance

1.5 pF input/output

Minimum switching voltage

3 V DC turn-on

Maximum switching voltage

1 V DC turn-off

Input current limits

15 mA

Input impedance

333 kOhm

Solid state output type

random voltage switching
SCR output

Load current

0.07...2 A

Absolute maximum voltage

600 V AC

Surge current

120 A for 16.6 ms
115 A for 20 ms

Maximum voltage drop

<1.1 v="">

Maximum I²t for fusing

66 A².s for 10 ms at 50 Hz
60 A².s for 8.3 ms at 60 Hz

Maximum leakage current

4 mA off-state

DV/dt

500 V/µs off-state at maximum voltage

Response time

0.5 cycle (turn-on)
0.5 cycle (turn-off)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

2500 V for input/output

Pollution degree

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

0.5 cm

Package 1 Width

2 cm

Package 1 Length

2.8 cm

Package 1 Weight

4 g

Unit Type of Package 2

BB1

Number of Units in Package 2

Package 2 Height

0.7 cm

Package 2 Width

2.5 cm

Package 2 Length

37 cm

Package 2 Weight

61 g

Unit Type of Package 3

S01

Number of Units in Package 3

1080

Package 3 Height

15 cm

Package 3 Width

15 cm

Package 3 Length

40 cm

Package 3 Weight

06 Oct 2022

REVISION

-----

DOWNLOAD (ZIP) 235.6 KB

ZIP

CSA Certificate SSL1 SSM1 SSM3 SSP1

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 207 B

ZIP

English

VERSION

5.2

DATE

24 Jan 2022

REVISION

-----

DOWNLOAD (ZIP) 700.5 KB

Colour ()
