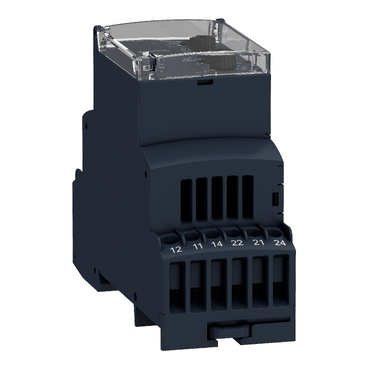

Multifunc Lev Contrl Resist 24-240V Ac/Dc

Multifunc Lev Contrl Resist 24-240V Ac/Dc

Multifunc Lev Contrl Resist 24-240V Ac/Dc

Item Number: RM35LM33MW

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Warranty

18 months

Range of product

Harmony Control Relays

Product or component type

level control relay

Physical

Marking

  • CE : 73/23/EEC
  • CE : EMC 89/336/EEC

Insulation resistance

  • > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
  • > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1
  • > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5
  • > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1
  • > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5
  • > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1

Connections - terminals

  • screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
  • screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end

Local signalling

  • LED (yellow) for relay ON
  • LED (green) for power ON
  • LED (yellow) for timer ON

Mounting support

35 mm symmetrical DIN rail conforming to EN/IEC 60715

Electrical durability

100000 cycles

Mechanical durability

30000000 cycles

Width

35 mm

Standards

EN/IEC 60255-6

Product certifications

  • CSA
  • GL
  • UL
  • C-Tick
  • GOST

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-20...50 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

IP degree of protection

  • IP20 (terminals) conforming to IEC 60529
  • IP30 (casing) conforming to IEC 60529

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP1504008EN

Circularity Profile

ENVEOLI1504008EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Connections - terminals

screw connectors

[In] rated current

5 A

Others

Reset time

1750 ms

Maximum switching voltage

250 V AC/DC

[Us] rated supply voltage

24...240 V AC/DC 50/60 Hz +/- 10 %

Supply voltage limits

20.4...264 V AC/DC

Control circuit voltage limits

- 15 % + 10 % Un

Maximum power consumption in W

1.5 W DC

Output contacts

2 C/O

Nominal output current

5 A

Run-up delay at power-up

0.6 s

Measurement accuracy

  • +/- 10 % of the full scale value
  • +/- 20 % for the HS range

Repeat accuracy

+/- 2 % for time delay

Measurement error

0.5 %/°C with temperature variation

Sensitivity scale

  • 0.25...5 kOhm LS (Low Sensitivity)
  • 5...100 kOhm St (Standard Sensitivity)
  • 50...1000 kOhm HS (High Sensitivity)

Sensitivity adjustment

5...100 %

Maximum supply current for sensors

1 mA

Cable capacitance

  • 1 nF at HS (High Sensitivity) for probe cable
  • 2.2 nF at St (Standard Sensitivity) for probe cable
  • 4.7 nF at LS (Low Sensitivity)

Overvoltage category

III conforming to IEC 60664-1

[Ui] rated insulation voltage

250 V conforming to IEC 60664-1

[Uimp] rated impulse withstand voltage

  • 4 kV conforming to IEC 60255-5
  • 4 kV conforming to IEC 60664-1
  • 4 kV conforming to IEC 61000-4-5

Operating position

any position without derating

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Operating rate

<= 360="" operations/hour="" full="">

Safety reliability data

  • B10d = 170000
  • MTTFd = 182.6 years

Functionality

resistive probe detection

Compatibility code

RM3

Immunity to microbreaks

  • 100 ms DC
  • 90 ms AC

Electromagnetic compatibility

  • emission standard for industrial environments conforming to EN/IEC 61000-6-4
  • emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3
  • immunity for industrial environments conforming to NF EN/IEC 61000-6-2

Pollution degree

3 conforming to IEC 60664-1

Dielectric test voltage

  • 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
  • 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

134.0 g

Package 1 Height

4.7 cm

Package 1 width

7.8 cm

Package 1 Length

9.7 cm

Unit Type of Package 2

P06

Number of Units in Package 2

384

Package 2 Weight

65.66 kg

Package 2 Height

75 cm

Package 2 width

80 cm

Package 2 Length

60 cm

Unit Type of Package 3

S03

Number of Units in Package 3

48

Package 3 Weight

7.411 kg

Package 3 Height

30 cm

Package 3 width

30 cm

Package 3 Length

40 cm

Relay type

level control relay

Relay name

RM35L

Relay monitored parameters

detection by resistive probes

Time delay type

adjustable 0.1...5 s, +/- 10 %

Switching capacity in VA

1250 VA

Minimum switching current

10 mA at 5 V DC

Maximum switching current

5 A AC/DC

Maximum power consumption in VA

5 VA AC

Measurement range

250 Ohm...1 MOhm

Utilisation category

  • AC-12 conforming to IEC 60947-5-1
  • AC-13 conforming to IEC 60947-5-1
  • AC-14 conforming to IEC 60947-5-1
  • AC-15 conforming to IEC 60947-5-1
  • DC-12 conforming to IEC 60947-5-1
  • DC-13 conforming to IEC 60947-5-1

Contacts type and composition

2 C/O

[Uc] control circuit voltage

24...240 V
