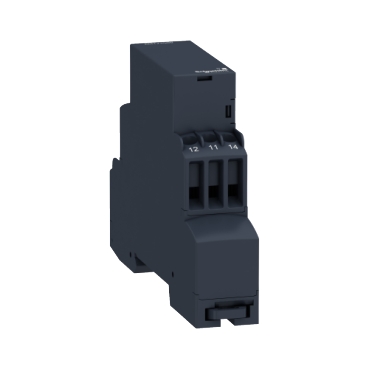

Package 1 Bare Product Quantity
1
Product specific application
for 3-phase supply
Relay monitored parameters
- phase sequence
- phase failure detection (2 or more phase cut)
Switching capacity in VA
1250 VA
Measurement range
208...480 V voltage AC
Contacts type and composition
1 C/O
[Uc] control circuit voltage
208...480 V
Maximum switching voltage
Minimum switching current
10 mA at 5 V DC
Supply voltage limits
183...528 V AC
Control circuit voltage limits
- 12 % + 10 % Un
Power consumption in VA
0...22 VA at 400 V AC 50 Hz
Voltage detection threshold
< 100="" v="">
Control circuit frequency
50...60 Hz +/- 10 %
Nominal output current
5 A
Measurement voltage limits
183...528 V AC
Run-up delay at power-up
650 ms
Voltage range
183...528 V
Response time
<= 130="" ms="" (in="" the="" event="" of="" a="">=>
Overvoltage category
III conforming to IEC 60664-1
[Ui] rated insulation voltage
400 V conforming to IEC 60664-1
Supply frequency
50/60 Hz +/- 10 %
Operating position
any position without derating
Tightening torque
0.6...1 N.m conforming to IEC 60947...1
Housing material
self-extinguishing plastic
Operating rate
<= 360="" operations/hour="" full="">=>
Utilisation category
- AC-12 conforming to IEC 60947-5-1
- AC-13 conforming to IEC 60947-5-1
- AC-14 conforming to IEC 60947-5-1
- AC-15 conforming to IEC 60947-5-1
- DC-12 conforming to IEC 60947-5-1
- DC-13 conforming to IEC 60947-5-1
Safety reliability data
- MTTFd = 924.6 years
- B10d = 850000
Electromagnetic compatibility
- emission standard for industrial environments conforming to EN/IEC 61000-6-4
- emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3
- immunity for industrial environments conforming to EN/IEC 61000-6-2
Directives
- 73/23/EEC - low voltage directive
- 89/336/EEC - electromagnetic compatibility
Vibration resistance
- 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
- 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
Shock resistance
15 gn for 11 ms conforming to IEC 60255-21-1
Pollution degree
3 conforming to IEC 60664-1
Dielectric test voltage
2 kV, 1 min AC 50 Hz
Non-dissipating shock wave
4 kV
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.700 cm
Package 1 Length
9.500 cm
Package 1 Weight
85.900 g
Unit Type of Package 2
S02
Number of Units in Package 2
48
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
4.715 kg
Unit Type of Package 3
P06
Number of Units in Package 3
768
Package 3 Height
75.000 cm
Package 3 Width
60.000 cm
Package 3 Length
80.000 cm
Package 3 Weight
81.828 kg
