ClimaSys CC Simple Thermostat 250V, Range of Temperature 0¦60AC, NO, AC

ClimaSys CC Simple Thermostat 250V, Range of Temperature 0¦60AC, NO, AC

Item Number: NSYCCOTHO

Where To Buy

Product Dimensions

Width icon

Width33 mm external:

Height icon

Height68 mm external:

Depth icon

Depth44 mm external:

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Sustainable offer status

Green Premium product

Warranty

18 months

Range

ClimaSys

Product or component type

simple thermostat

Physical

Sensor type

bimetal

Contact resistance

10 mOhm

Mounting mode

clipped

Height

68 mm external:

Width

33 mm external:

Depth

44 mm external:

Net weight

40 g

Ambient air temperature for operation

-20...80 °C

IP degree of protection

IP20

Product certifications

UL

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP2103012_V1

Material

Material

PC

Others

Input voltage

250 V

Contacts type and composition

NO

Service life in cycles

100000 cycles

Maximum switching capacity

  • 2 A 120...250 V AC inductive pf: 0.6
  • 10 A 250 V AC resistive
  • 15 A 120 V AC resistive
  • 30 W DC

Electrical connection

4 terminals, clamping capacity: 2.5 mm²

Mounting location

  • 35 mm DIN rail
  • on mounting plate
  • cross rails
  • Spacial upright

Hysteresis

7 %

Number of outputs

1 ventilation function

Flame retardance

self-extinguishing conforming to UL94 (material V0)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

64.667 g

Package 1 Height

4.5 cm

Package 1 width

6 cm

Package 1 Length

8 cm

Unit Type of Package 2

CAR

Number of Units in Package 2

100

Package 2 Weight

7.447 kg

Package 2 Height

24.5 cm

Package 2 width

32.5 cm

Package 2 Length

41.5 cm

Product name

ClimaSys CC

Temperature setting range

0...60 °C

Information displayed

temperature in °C
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Product Environmental

  • Operating Manuals

  • Specifications

  • Declaration of Conformity

  • Certificates (MSDS)

  • Software - Release

ClimaSys CC - Simple Thermostat (NO vent.) - 3D CAD
ZIP

ClimaSys CC - Simple Thermostat (NO vent.) - 3D CAD

DATE

23 Nov 2021

VERSION

1

DOWNLOAD
CAD drawing - 3D package STEP format - ClimaSys
ZIP

CAD drawing - 3D package STEP format - ClimaSys

DATE

29 May 2013

VERSION

1

DOWNLOAD
CAD drawing - 2D package DWG format - ClimaSys
ZIP

CAD drawing - 2D package DWG format - ClimaSys

DATE

29 May 2013

VERSION

1

DOWNLOAD
CAD drawing - Customized ClimaSys NSYCCOTHC(F) and NSYCCOTHO(F)
ZIP

CAD drawing - Customized ClimaSys NSYCCOTHC(F) and NSYCCOTHO(F)

DATE

10 May 2012

VERSION

1

DOWNLOAD

(322.4 KB)
Customized Enclosures Solutions P&S
ZIP

Customized Enclosures Solutions P&S

DATE

09 Apr 2021

VERSION

1

DOWNLOAD
Climasys CSVS Brochure
ZIP

Climasys CSVS Brochure

DATE

20 Jun 2019

VERSION

1

DOWNLOAD
The smart way to keep critical equipment cool
PDF

The smart way to keep critical equipment cool

DATE

30 Jan 2019

VERSION

1

DOWNLOAD

(3.6 MB)
Universal Enclosures - 2022 Catalogue (English)
ZIP

Universal Enclosures - 2022 Catalogue (English)

DATE

23 Mar 2022

VERSION

1

DOWNLOAD
Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide
ZIP

Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide

DATE

25 Nov 2021

VERSION

2

DOWNLOAD
Universal Enclosures - Quick Selection Guide (2021 S3D EN)
ZIP

Universal Enclosures - Quick Selection Guide (2021 S3D EN)

DATE

22 Sep 2021

VERSION

1

DOWNLOAD
ClimaSys catalog 2017
ZIP

ClimaSys catalog 2017

DATE

27 Aug 2020

VERSION

2

DOWNLOAD
Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures
ZIP

Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures

DATE

08 Mar 2017

VERSION

2.1

DOWNLOAD
PEP-ClimaSys CC- Simple Thermostat
ZIP

PEP-ClimaSys CC- Simple Thermostat

DATE

10 Sep 2021

VERSION

1

DOWNLOAD
Control Panel - Technical Guide - How to reduce damage to components through effective thermal management
ZIP

Control Panel - Technical Guide - How to reduce damage to components through effective thermal management

DATE

18 Feb 2022

VERSION

3

DOWNLOAD
TECHNICAL INSTRUCTION ELECTROMECHANICAL THERMOSTAT
pdf

TECHNICAL INSTRUCTION ELECTROMECHANICAL THERMOSTAT

DATE

28 Oct 2021

VERSION

2.1

DOWNLOAD

(5.6 MB)
26 05 33.16.24 NSYCCOTHO - ClimaSys Controllers - Universal Enclosures
ZIP

26 05 33.16.24 NSYCCOTHO - ClimaSys Controllers - Universal Enclosures

DATE

18 Jul 2017

VERSION

1

DOWNLOAD

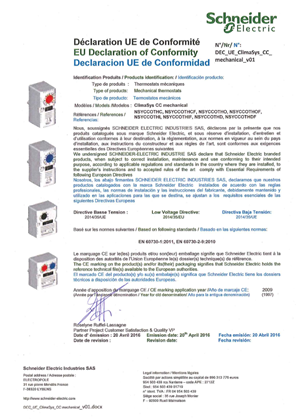

Declaration - EC Conformity - ClimaSys CC Mechanical Control Divice
