Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 10A, 30mA, C Curve, 6000A, A Type, 2 MOD

Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 10A, 30mA, C Curve, 6000A, A Type, 2 MOD

Item Number: MX9R3210

Product Selector âžš

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height91 mm

Depth icon

Depth75 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all
max9 2 module RCBO
max9 2 module RCBO
max9 2 module RCBO
max9 2 module RCBO
max9 2 module RCBO
max9 2 module RCBO

Fast installation speed with unmatched flexibility

  • Up to 15 times faster installation with MAXBAR
  • Separate indicator windows for MCB trip or RCD trip for easy diagnosis in case of tripping of device.
  • Compatible with multiple types of screw-drivers with combination head screws
  • Double locking clip for ease of installation or removal from MAXBAR


Helps to provide additional safety

  • Type A RCD to sense a.c. as well as pulsating d.c.
  • Option of Type A-SI for high dependency applications
  • Switching of both active and neutral contacts
  • Positive contact Indicator on toggle that indicates opening of all poles


Peace of mind with complete solution

  • Short circuit breaking capacity of 6kA
  • Caters for current ratings from 10A to 40A (32A for type A-SI)
  • Designed for touch Aussie conditions with operating temperature range of -25 Deg C to +70 Deg C (derating applies)
  • Designed to last with endurance performance of 10K electrical cycles and 20K mechanical cycles
  • Green Premium product
  • Compatible with A9A26970 padlocking device

Specifications

Design

Range

MAX9

Product or component type

residual current breaker with overcurrent protection (RCBO)

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

[In] rated current

10 A at 30 °C conforming to AS/NZS 61009.1

[Ue] rated operational voltage

240 V AC 50/60 Hz

Height

91 mm

Width

36 mm

Depth

75 mm

Net weight

268 g

Connections - terminals

  • tunnel type terminal - 1...16 mm² - rigid
  • tunnel type terminal - 1...10 mm² - flexible

Standards

  • IEC 61009-2-2
  • EN/IEC 61009-1
  • AS/NZS 61009.1

IP degree of protection

IP20

Ambient air temperature for operation

-25...70 °C

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP1812008EN

Circularity Profile

ENVEOLI1812008EN

Others

Package 1 Bare Product Quantity

1

Poles description

1P + N

Number of protected poles

1

Network type

AC

Network frequency

50/60 Hz

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Earth-leakage protection time delay

instantaneous

Breaking capacity

6000 A Icn at 240 V AC 50/60 Hz

Limitation class

3

[Ui] rated insulation voltage

440 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

4 kV

9 mm pitches

4

Comb busbar and distribution block compatibility

YES

Temperature derating table

  • -25 °C ( 12.1 A )
  • -20 °C ( 12.1 A )
  • -15 °C ( 11.8 A )
  • -10 °C ( 11.6 A )
  • -5 °C ( 11.4 A )
  • 0 °C ( 11.2 A )
  • 5 °C ( 11.02 A )
  • 10 °C ( 10.8 A )
  • 15 °C ( 10.6 A )
  • 20 °C ( 10.4 A )
  • 25 °C ( 10.2 A )
  • 30 °C ( 10 A )
  • 35 °C ( 9.8 A )
  • 40 °C ( 9.6 A )
  • 45 °C ( 9.3 A )
  • 50 °C ( 9.1 A )
  • 55 °C ( 8.9 A )
  • 60 °C ( 8.6 A )
  • 65 °C ( 8.4 A )
  • 70 °C ( 8.1 A )

Grid distance

45 mm

Quality labels

RCM

Pollution degree

2

Overvoltage category

III

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8 cm

Package 1 Width

4 cm

Package 1 Length

10 cm

Package 1 Weight

220 g

Sustainable packaging

Yes
Show all specifications

Frequently Asked Questions

hide show

Why is there a QR code on the MAX9 devices?

Scanning QR codes with a mobile device helps to easily access all the product specifications, Instruction Sheet, product picture, 360° views, features & benefits, certificates and compliance, brochure and related products.


max9 busbar
max9 AFDD
max9 distribution board
max9 icons
max9 busbar
max9 AFDD
max9 distribution board
max9 icons

Ultimate Efficiency and Professional Finish

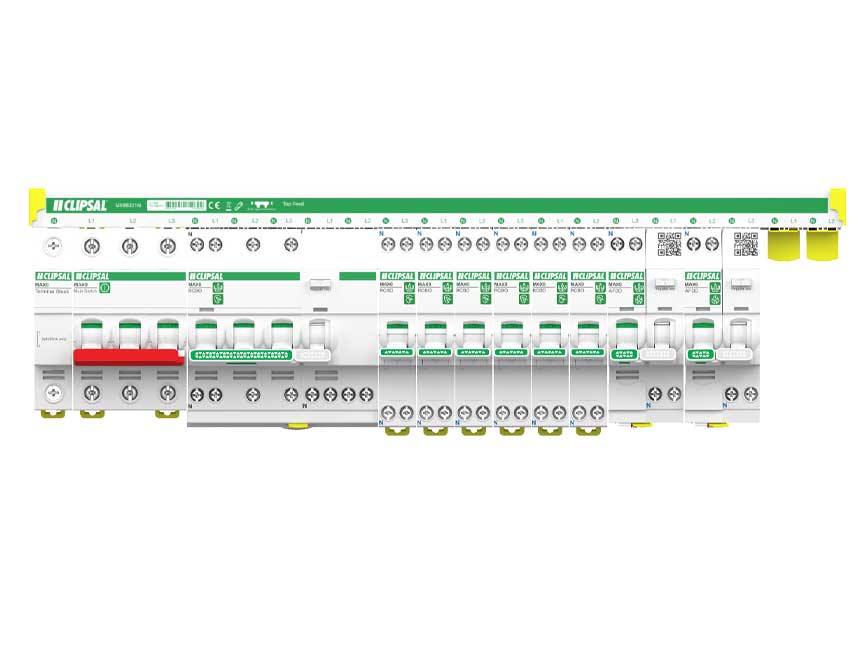

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

MAX Innovation & Performance

  • Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
  • Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
  • When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

  • Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
  • MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
  • Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

  • Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
  • MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos
