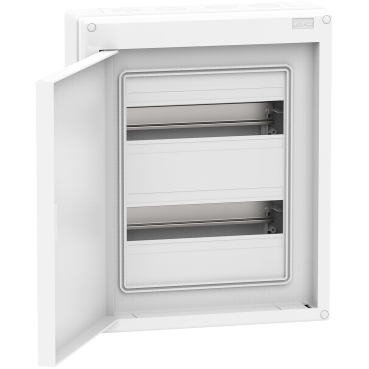

Clipsal MAX9 Switchboard Enclosure Type 1, 2 Row, 24 Ways, Surface Mounted

Back to Type 1 Home Surface Mounting Type 1

Clipsal MAX9 Switchboard Enclosure Type 1, 2 Row, 24 Ways, Surface Mounted

Clipsal MAX9 Switchboard Enclosure Type 1, 2 Row, 24 Ways, Surface Mounted

Item Number: MX9E1212S

Product Selector âžš

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width345 mm

Height icon

Height424 mm

Depth icon

Depth106 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all
max9 Type 1 enclosure
max9 Type 1 enclosure

Features

  • Peace of mind with Type tested system as per AS/NZS 61439-3
  • Extra wiring space with 135 mm Space between the DIN rails and sufficient space under the DIN rail
  • Flush enclosure with Metal Back box helps to provide mechanical protection to cables
  • Removable DIN rail Brings to help organise the cables in position before mounting the devices
  • Ample Earth and Neutral terminals to suit typical configurations and comply to MEN type system
  • Position of Door on left or right for multirow row enclosures brings adaptability in tight corners
  • Reversible back box for multirow enclosures allows flexibility to choose the position on Earth/Neutral bar to your style
  • Multiple cable entry/exit knock-outs

Specifications

Design

Range

MAX9

Product brand

Clipsal

Product or component type

enclosure

Device application

distribution

Colour

white electric (RAL 9003)

Market segment

residential

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

Provided equipment

  • earthing bar
  • neutral bar
  • circuit identification label
  • blanking plate

[Ue] rated operational voltage

240/415 V AC

[In] rated current

100 A

Cable entry

knock-out cable entries

Width

345 mm

Height

424 mm

Depth

106 mm

Standards

  • AS/NZS 61439-3
  • AS/NZS 3000

IP degree of protection

IP30

IK degree of protection

IK05

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP2206023EN

Others

Package 1 Bare Product Quantity

1

Number of 18 mm modules per row

12

Door type

plain door - reversible

Enclosure mounting

surface

Total number of 18 mm modules

24

Number of horizontal rows

2

[Ui] rated insulation voltage

500 V

Number of ways

24 ways

Type of rail

DIN

Enclosure material

  • housing: plastic
  • front face: plastic

Fire resistance

650 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

13.0 cm

Package 1 Width

35.0 cm

Package 1 Length

43.0 cm

Package 1 Weight

4.174 kg

Unit Type of Package 2

CAR

Number of Units in Package 2

2

Package 2 Height

43.5 cm

Package 2 Width

29.0 cm

Package 2 Length

45.0 cm

Package 2 Weight

9.048 kg
Show all specifications

Frequently Asked Questions

hide show

Why is there a QR code on the MAX9 devices?

Scanning QR codes with a mobile device helps to easily access all the product specifications, Instruction Sheet, product picture, 360° views, features & benefits, certificates and compliance, brochure and related products.


max9 busbar
max9 AFDD
max9 distribution board
max9 icons
max9 busbar
max9 AFDD
max9 distribution board
max9 icons

Ultimate Efficiency and Professional Finish

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

MAX Innovation & Performance

  • Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
  • Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
  • When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

  • Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
  • MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
  • Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

  • Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
  • MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos
