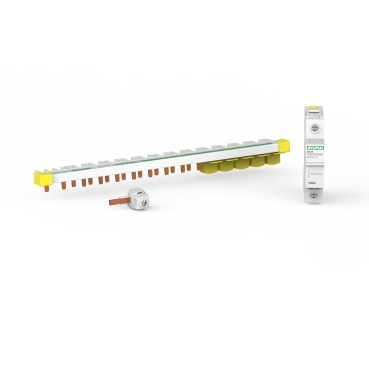

Clipsal MAX9 MAXBAR Top Feed 1P+N, 15 Modules, 100 A with N Block and Accessories

Clipsal MAX9 MAXBAR Top Feed 1P+N, 15 Modules, 100 A with N Block and Accessories

Item Number: MX9B115N

Product Selector ➚

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all
max9 MAXBAR
max9 MAXBAR
max9 MAXBAR
max9 MAXBAR

Features

  • MAX Speed – Up to 15 times faster compared to traditional wiring method
  • MAX Professionalism – No cables for feeding RCBOs
  • MAX Performance – 100A rated
  • MAX Ease – All in 1 pack: Busbar + Connector + Teeth cover + End Caps + Neutral terminal block (refs ending with N only)


MAX Flexibility

  • One busbar connects to main switch, all type of Clipsal RCBOs and AFDD
  • Cuttable to have desired number of modules and insulate with End caps
  • Teeth covers to insulate unused modules for future upgrades
  • Available in varying lengths
  • Compatible with Resi MAX SLIM Comb busbar accessories like connector, teeth cover and end caps

Specifications

Design

Product brand

Clipsal

Range

MAX9

Product or component type

comb busbar

Market segment

residential

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

Device presentation

cuttable

Provided equipment

  • 1 connector
  • 5 tooth covers
  • 1 neutral terminal block

[Ie] rated operational current

100 A

[Ue] rated operational voltage

230 V AC

Mounting mode

horizontal

Standards

  • AS/NZS 61439-3
  • AS/NZS 3000

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP2005011

Others

Package 1 Bare Product Quantity

1

Total number of 18 mm modules

15

Number of ways

  • outgoer: 13 ways N + L
  • incomer: 2 ways N + L

Poles configuration for 1 way

outgoer: 1P + N

Connection pitch

  • incomer: 18 mm
  • outgoer: 9 mm

Insulation

insulated

[Ui] rated insulation voltage

500 V

[Uimp] rated impulse withstand voltage

4 kV

Mounting location

top

Fire resistance

960 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.0 cm

Package 1 Width

30.0 cm

Package 1 Length

12.5 cm

Package 1 Weight

180.0 g

Unit Type of Package 2

CAR

Number of Units in Package 2

12

Package 2 Height

26.2 cm

Package 2 Width

27.3 cm

Package 2 Length

33.4 cm

Package 2 Weight

2.2 kg
Show all specifications

Frequently Asked Questions

hide show

How do you distribute MAXBAR from the main row to other rows, keeping the system more professional?

MAXBAR with neutral terminal block can be used to distribute active and neutral in the row with main switch. Use the connectors provided with MAXBAR to take active and neutral feed from the row with main switch to take the feed to other rows. You can follow the same process for other rows in switchboard.

MAXBAR Kit Definition


How can MAXBAR help me to save time during switchboard installation ?

MAXBAR removes the need for cutting stripping, twisting and managing cables for feeding RCBO & AFDD on typical installation. This helps to achieve installation speed of up to 15x faster with MAXBAR compared to traditional wiring.



What is MAXBAR?

MAXBAR is a top feeding comb busbar able to feed Line & Neutral from the Main incoming Switch or MCB and neutral terminal directly to all type of Clipsal RCBOs and AFDDs.

There are Comb busbar for 1P+N and 3P+N applications. There is one variant with neutral terminal block for rows with Main Switch  and another variant for rows without Main switch.



Why are Pictograms printed on MAX9 devices?

The Pictograms are designed to help electricians simplify safety conversation with home owners. They help electricians to explain the meaning of different type of circuit protection needed in a typical home without using technical terms. See below image for meaning of all pictograms used on MAX9 products.


Why is there a QR code on the MAX9 devices?

Scanning QR codes with a mobile device helps to easily access all the product specifications, Instruction Sheet, product picture, 360° views, features & benefits, certificates and compliance, brochure and related products.
